    A-DQ(ZN)BH/I-DQ(ZN)BH Fibre Optic Cables

    Application

    These cables are used either as central bundle core cable or as stranded versions, suitable for indoor and outdoor cabling of buildings and facilities.

    Standards

    • DIN VDE 0888
    • EN 187000
    • IEC 60794
    • ISO 11801
    • EN 50173-1

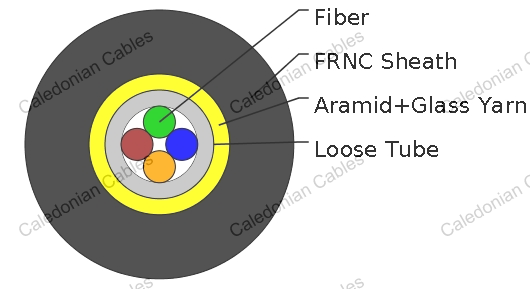

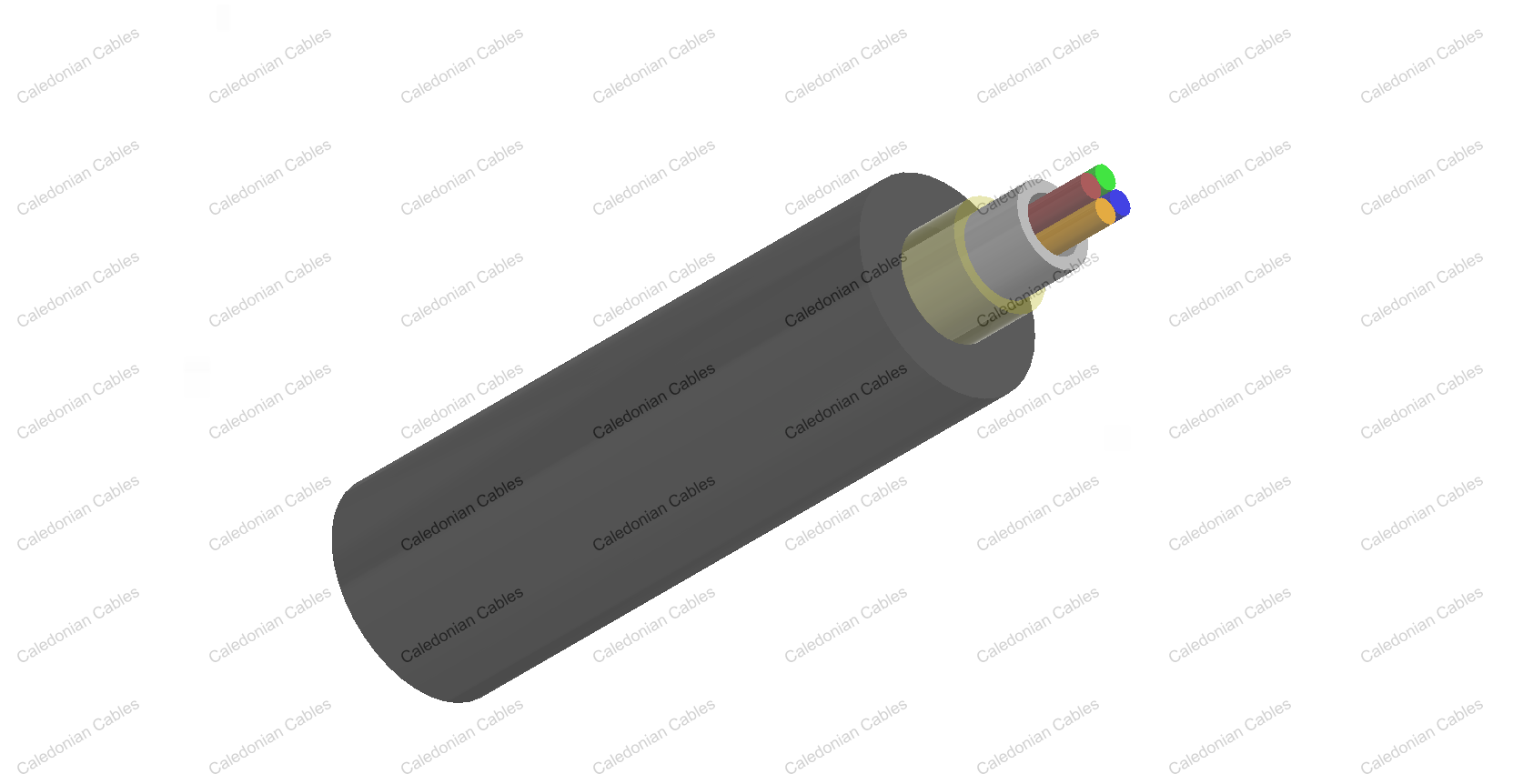

    Construction

    Fibre Type ?Loose Tube.
    Strain Relief Aramid.
    Armour Glass yarns.
    Sheath FRNC.

    Technical Data

    Operating Temperatures -20℃~+60℃
    Minimum Bending Radius 150mm
    Flame Retardant IEC 60332-1/IEC 60332-3
    Halogen Free IEC 60754
    Corrosive Gases EN 50267-2/ IEC 60754
    Smoke Density IEC 61034
    UV Resistant Yes
    Longitudinally Water-tight Yes

    Dimensions and Weight

    A-DQ(ZN)BH, Central bundle

    CONSTRUCTION FIBRE TYPE NOMINAL OVERALL DIAMETER NOMINAL WEIGHT
    NO. OF FIBRES - MM KG/KM
    4~12 Multimode G50/125 10.0 125
    4~12 Multimode G62.5/125 10.0 125
    4~12 Single-Mode E9/125 10.0 125
    16~24 Multimode G50/125 10.0 145
    16~24 Multimode G62.5/125 10.0 145
    16~24 Single-Mode E9/125 10.0 145

    A-DQ(ZN)BH, Stranded

    CONSTRUCTION FIBRE TYPE NO. OF FIBRES PER?
    CORE    		 NOMINAL OVERALL?
    DIAMETER    		 NOMINAL WEIGHT
    NO. OF FIBRES - - MM KG/KM
    6~36 Multimode G50/125 6 13 160
    6~36 Multimode G62.5/125 6 13 160
    6~36 Single-Mode E9/125 6 13 160
    8~48 Multimode G50/125 8 13 160
    8~48 Multimode G62.5/125 8 13 160
    8~48 Single-Mode E9/125 8 13 160
    12~72 Multimode G50/125 12 13 160
    12~72 Multimode G62.5/125 12 13 160
    12~72 Single-Mode E9/125 12 13 160
    42~48 Multimode G50/125 6 14.5 210
    42~48 Multimode G62.5/125 6 14.5 210
    42~48 Single-Mode E9/125 6 14.5 210
    56~64 Multimode G50/125 8 14.5 210
    56~64 Multimode G62.5/125 8 14.5 210
    56~64 Single-Mode E9/125 8 14.5 210
    84~96 Multimode G50/125 12 14.5 210
    84~96 Multimode G62.5/125 12 14.5 210
    84~96 Single-Mode E9/125 12 14.5 210
