For the connection of electrical equipment large material handling machines such as excavators, cranes, dumpers in mining and tunneling applications. The flexible cable design allows for movement of the equipment during operation.
| Construction | DIN VDE 0250-813 |
| General Requirements | DIN VDE 0250-1 |
| Guide Use | DIN VDE 0298-3 |
| Electrical Tests | DIN VDE 0472-501, 503, 508 |
| Non-Electrical Tests | DIN VDE 0472-401. 402,602,303, 615 |
| Under Fire Condition Tests | DIN VDE 0472-803, 804 |
| Flame Retardant | VDE 0482-332-1-2,DIN EN 60332-1-2,IEC 60332-1 |
| Oil Resistant | HD/EN/IEC 60811-2-1.,DIN VDE0473-811-2-1 |

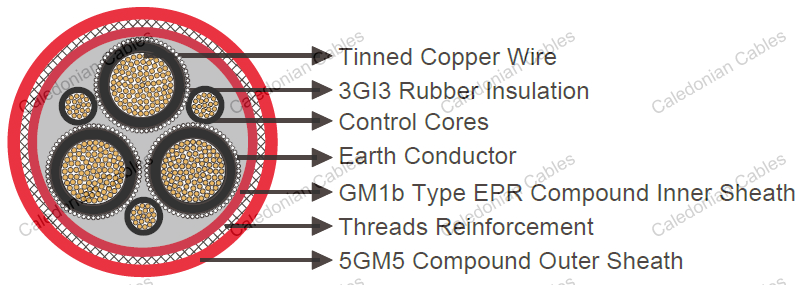

Conductor : Electrolytic, stranded, tinned copper wire DIN VDE 0295 Class 5
Insulation : 3Gl3 type EPR compound
Electrical Field Control : Inner and Outer semiconductive layer of semiconductive rubber
Protective-Earth Conductor : Tinned Copper conductor with semiconductive layer
Lay Up : Three main conductors laid-up with three control cores in the outer interstice
Inner Sheath : GM1b Type EPR Compound
Reinforcement : Embedded braid made of anti torsion synthetic threads
Outer Sheath : 5GM5 Type elastomer compound. Red.
| Rated Voltage | 3.6/6 KV | 6/10 KV | 8.7/15KV | 12/20 KV | 18/30 KV |
| AC Test Voltage | 11KV | 17KV | 24KV | 29KV | 43KV |
| Max.Permissible Operating Voltage AC | 4.2/7.2KV | 6.9/12 KV | 10.4/18KV | 13.9/24 KV | 20.8/36 KV |
| Min Bending Radius | VDE 0298-3 Tab 3 | ||||
| Current Carrying Capacities | VDE 0298-4 | ||||
| Working Temperature | |||||
| Fixed | -40°C-+80°C | ||||
| Mobile | -25°C-+80°C | ||||
| Max.Tensile Load Of cable | 15N/mm² | ||||
| max.torsion | 25°/m | ||||
| Trawl Speed For Tunnelling App | Max.30 m/min | ||||
| Minimum Distarce For Change Of Direction | 20×D | ||||
| Cross Section | Overall Diameter (min-max) | Appro. Weight |
|---|---|---|
| mm² | mm | kg/km |
| 3x25 + 3x25/3 | 41.8-45.0 | 2530 |
| 3x35 + 3x25/3 | 44.2-48.9 | 2900 |
| 3x50 + 3x25/3 | 48.5-51.4 | 3600 |
| 3x70 + 3x35/3 | 52.6-55.6 | 4400 |
| 3x95 + 3x50/3 | 55.7-58.8 | 5630 |
| 3x120 + 3x70/3 | 59.6-65.9 | 6200 |
| Cross Section | Overall Diameter (min-max) | Appro. Weight |
|---|---|---|
| mm² | mm | kg/km |
| 3x25 + 3x25/3 | 43.6-48.1 | 2600 |
| 3x35 + 3x25/3 | 45.6-50.4 | 2980 |
| 3x50 + 3x25/3 | 48.3-51.4 | 3720 |
| 3x70 + 3x35/3 | 53.4-59.1 | 4510 |
| 3x95 + 3x50/3 | 57.1-63.2 | 5720 |
| 3x120 + 3x70/3 | 63.0-69.7 | 6300 |
| Cross Section | Overall Diameter (min-max) | Appro. Weight |
|---|---|---|
| mm² | mm | kg/km |
| 3x25 + 3x25/3 | 48.1-53.2 | 3675 |
| 3x35 + 3x25/3 | 51.8-57.3 | 4415 |
| 3x50 + 3x25/3 | 55.5-61.4 | 5135 |
| 3x70 + 3x35/3 | 58.0-64.1 | 6005 |
| 3x95 + 3x50/3 | 63.4-70.1 | 7200 |
| 3x120 + 3x70/3 | 67.5-74.6 | 8700 |
| Cross Section | Overall Diameter (min-max) | Appro. Weight |
|---|---|---|
| mm² | mm | kg/km |
| 3x25 + 3x25/3 | 51.1-55.3 | 4460 |
| 3x35 + 3x25/3 | 54.4-58.2 | 4990 |
| 3x50 + 3x25/3 | 59.4-63.6 | 5740 |
| 3x70 + 3x35/3 | 64.2-68.4 | 6950 |
| 3x95 + 3x50/3 | 69.6-73.8 | 7870 |
| 3x120 + 3x70/3 | 73.6-77.8 | 9425 |
| Cross Section | Overall Diameter (min-max) | Appro. Weight |
|---|---|---|
| mm² | mm | kg/km |
| 3x25 + 3x25/3 | 66.0-72.8 | 6360 |
| 3x35 + 3x25/3 | 68.0-75.0 | 6925 |
| 3x50 + 3x25/3 | 71.6-79.1 | 7800 |
| 3x70 + 3x35/3 | 75.8-83.7 | 9140 |
| 3x95 + 3x50/3 | 79.4-87.7 | 10100 |
| 3x120 + 3x70/3 | 85.3-94.2 | 12260 |
| Cross Section | Overall Diameter (min-max) | Appro. Weight |
|---|---|---|
| mm² | mm | kg/km |
| 3x35 + 3x25/3 | 75.7-83.6 | 8400 |
| 3x50 + 3x25/3 | 79.5-87.8 | 9360 |
| 3x70 + 3x35/3 | 82.0-90.6 | 10400 |
| 3x95 + 3x50/3 | 87.3-96.4 | 11770 |
| 3x120 + 3x70/3 | 91.4-101.1 | 13680 |
