(N)TSCGEWöU FO(LWL)

Application

For the connection of electrical equipment large material handling machines such as excavators, cranes, dumpers in mining and tunneling applications in combination of power and data transmission. The flexible cable design allows for movement of the equipment during operation. Suitable also as flex MV reeling cable and also for festoon systems.

Standards

Construction	DIN VDE 0250-812
General Requirements	DIN VDE 0250-1
Guide Use	DIN VDE 0298-3
Electrical Tests	DIN VDE 0472-501, 503, 508
Non-Electrical Tests	DIN VDE 0472-401. 402,602,303, 615
Under Fire Condition Tests	DIN VDE 0472-803, 804
Flame Retardant	VDE 0482-332-1-2,DIN EN 60332-1-2,IEC 60332-1
Oil Resistant	HD/EN/IEC 60811-2-1.,DIN VDE0473-811-2-1

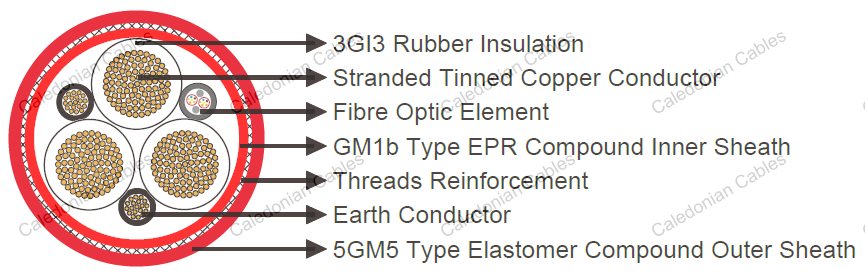

Cable Construction

Conductor : Electrolytic stranded tinned copper wire DIN VDE 0295 Class 5.

Insulation : 3Gl3 type EPR compound.

Electrical Field Control : Inner and Outer semiconductive layer of semiconductive rubber.

Protective-Earth Conductor : Tinned Copper conductor with semiconductive layer.

Optical Fiber : Fibre core diameter of fiber 9μm, 625μm or 50μm; Diameter over cladding 125μm; diameter over coating 250 μm; designs up to 24 fibers available.

Fiber coading : Color coding of the fibers and buffering tube for identification of the fiber type.

Fiber covering : Hollow core with filling compound,basic material ETFE.

Arrangement of Fiber cores : Six cores in one layer and specially laid-up around the central support element.

Lay Up : Three main conductors laid-up with two control cores and fiber optic element in the outer interstice.

Inner Sheath : GM1b Type EPR compound.

Reinforcement : Embedded braid made of anti torsion synthetic threads.

Outer Sheath : 5GM5 Type elastomer compound. Red.

Technical Characteristics

Rated Voltage	3.6/6 KV	6/10 KV	8.7/15KV	12/20KV	18/30KV
AC Test Voltage	11KV	17KV	24KV	29KV	43KV
Max.Permissible Operating Voltage AC	4.2/7.2 KV	6.9/12 KV	10.4/18 KV	13.9/24 KV	20.8/36 KV
Max.Permissible Operating Voltage DC	5.4/10.8 KV	9/18 KV	13.5/27 KV	18/36 KV	27/54 KV
Min Bending Radius	DIN VDE 0298-3
Current Carrying Capacities	DIN VDE 0298-4
Working Temperature
Fixed	-40°C-+80°C
Mobile	-25°C-+80°C
Max.Tensile Load Of cable	15N/mm²
max.torsion	25°/m
Trawl Speed For Tunnelling App	Max.30 m/min
Minimum Distarce For Change Of Direction	20×D

Dimensions And Weight

3.6/6 KV

Cross Section	Overall Diameter (min-max)	Permissible Tensile Force max.	conductor Resistance at 20°C	Appro. Weight
mm²	mm	n	Ω/km	kg/km
3x25+2x25/2+FO	42.2-45.2	1500	0.78	2660
3x25+2x50/2+FO	45.0-48.0	1500	0.78	2990
3x35+2x25/2+FO	43.8-46.8	2100	0.554	3050
3x35+2x50/2+FO	45.9-48.9	2100	0.554	3400
3x50+2x25/2+FO	45.1-48.1	3000	0.386	3540
3x50+2x50/2+FO	48.8-51.8	3000	0.386	4070
3x70+2x35/2+FO	48.8-51.8	4200	0.272	4480
3x70+2x50/2+FO	52.5-56.5	4200	0.272	4840
3x95+2x50/2+FO	54.3-58.3	5700	0.206	5800
3x120+2x70/2+FO	58.2-62.2	7200	0.161	7010
3x150+2x70/2+FO	62.4-66.4	9000	0.129	8210
3x185+2x95/2+FO	67.8-71.8	11100	0.106	9920
3x240+2x120/2+FO	74.4-78.4	14400	0.08	12530
3x300+2x150/2+FO	80.6-85.6	18000	0.064	15330

6/10 KV

Cross Section	Overall Diameter (min-max)	Permissible Tensile Force max.	conductor Resistance at 20°C	Appro. Weight
mm²	mm	n	Ω/km	kg/km
3x25+2x25/2+FO	42.7-45.7	1500	0.78	2740
3x25+2x50/2+FO	46.0-49.0	1500	0.78	2980
3x35+2x25/2+FO	45.2-48.2	2100	0.554	3160
3x35+2x50/2+FO	47.6-50.6	2100	0.554	3610
3x50+2x25/2+FO	46.5-49.5	3000	0.386	3670
3x50+2x50/2+FO	50.4-53.4	3000	0.386	4020
3x70+2x35/2+FO	50.3-53.3	4200	0.272	4610
3x70+2x50/2+FO	53.8-56.8	4200	0.272	5160
3x95+2x50/2+FO	55.6-59.6	5700	0.206	5940
3x120+2x70/2+FO	60.4-63.4	7200	0.161	7150
3x150+2x70/2+FO	65.2-69.2	9000	0.129	8600
3x185+2x95/2+FO	69.2-73.2	11100	0.106	10110
3x240+2x120/2+FO	77.2-81.2	14400	0.08	12980
3x300+2x150/2+FO	81.8-86.8	18000	0.064	15550

8.7/15 KV

Cross Section	Overall Diameter (min-max)	Permissible Tensile Force max.	conductor Resistance at 20°C	Appro. Weight
mm²	mm	n	Ω/km	kg/km
3x25+2x25/2+FO	46.0-49.0	1500	0.78	3000
3x25+2x50/2+FO	47.4-51.4	1500	0.78	3350
3x35+2x25/2+FO	46.3-49.3	2100	0.554	3550
3x35+2x50/2+FO	50.1-53.1	2100	0.554	3710
3x50+2x25/2+FO	50.1-53.1	3000	0.386	4020
3x50+2x50/2+FO	53.8-57.8	3000	0.386	4640
3x70+2x35/2+FO	54.8-58.8	4200	0.272	5170
3x70+2x50/2+FO	54.8-58.8	4200	0.272	5280
3x95+2x50/2+FO	59.2-63.2	5700	0.206	6370
3x120+2x70/2+FO	64.6-68.6	7200	0.161	7830
3x150+2x70/2+FO	68.8-72.8	9000	0.129	9090
3x185+2x95/2+FO	72.8-76.8	11100	0.106	10610
3x240+2x120/2+FO	76.8-79.7	14400	0.08	13540
3x300+2x150/2+FO	87.9-92.9	18000	0.064	16530

12/20 KV

Cross Section	Overall Diameter (min-max)	Permissible Tensile Force max.	conductor Resistance at 20°C	Appro. Weight
mm²	mm	n	Ω/km	kg/km
3x25+2x25/2+FO	46.5-49.5	1500	0.78	3070
3x25+2x50/2+FO	49.5-52.5	1500	0.78	3400
3x35+2x25/2+FO	49.3-52.3	2100	0.554	3590
3x35+2x50/2+FO	53.1-57.1	2100	0.554	4200
3x50+2x25/2+FO	54.1-58.1	3000	0.386	4500
3x50+2x50/2+FO	54.1-58.1	3000	0.386	4590
3x70+2x35/2+FO	58.0-62.0	4200	0.272	5540
3x70+2x50/2+FO	58.0-62.0	4200	0.272	5650
3x95+2x50/2+FO	62.4-66.4	5700	0.206	6750
3x120+2x70/2+FO	67.7-71.7	7200	0.161	8400
3x150+2x70/2+FO	71.9-75.9	9000	0.129	9520
3x185+2x95/2+FO	77.3-81.3	11100	0.106	11340
3x240+2x120/2+FO	83.8-87.8	14400	0.08	14060
3x300+2x150/2+FO	91.0-96.0	18000	0.064	17090

14/25 KV

Cross Section	Overall Diameter (min-max)	Permissible Tensile Force max.	conductor Resistance at 20°C	Appro. Weight
mm²	mm	n	Ω/km	kg/km
3x25+2x25/2+FO	50.5-53.5	1500	0.78	3460
3x25+2x50/2+FO	50.5-53.5	1500	0.78	3550
3x35+2x25/2+FO	54.2-57.2	2100	0.554	4180
3x35+2x50/2+FO	54.2-57.2	2100	0.554	4260
3x50+2x25/2+FO	57.0-61.0	3000	0.386	4980
3x50+2x50/2+FO	57.0-61.0	3000	0.386	5050
3x70+2x35/2+FO	62.0-66.0	4200	0.272	6020
3x70+2x50/2+FO	62.0-66.0	4200	0.272	6130
3x95+2x50/2+FO	67.9-71.9	5700	0.206	7500
3x120+2x70/2+FO	71.6-75.6	7200	0.161	8790
3x150+2x70/2+FO	77.3-81.3	9000	0.129	10390
3x185+2x95/2+FO	81.4-85.4	11100	0.106	11980
3x240+2x120/2+FO	89.2-94.2	14400	0.08	15130
3x300+2x150/2+FO	95.0-100.0	18000	0.064	17830

18/30 KV

Cross Section	Overall Diameter (min-max)	Permissible Tensile Force max.	conductor Resistance at 20°C	Appro. Weight
mm²	mm	n	Ω/km	kg/km
3x25+2x25/2+FO	55.1-59.1	1500	0.78	4020
3x25+2x50/2+FO	55.1-59.1	1500	0.78	4100
3x35+2x25/2+FO	58.0-62.0	2100	0.554	4590
3x35+2x50/2+FO	58.0-62.0	2100	0.554	4670
3x50+2x25/2+FO	61.8-65.8	3000	0.386	5410
3x50+2x50/2+FO	61.8-65.8	3000	0.386	5480
3x70+2x35/2+FO	67.0-71.0	4200	0.272	6710
3x70+2x50/2+FO	67.0-71.0	4200	0.272	6810
3x95+2x50/2+FO	71.4-75.4	5700	0.206	7960
3x120+2x70/2+FO	76.7-80.7	7200	0.161	9510
3x150+2x70/2+FO	81.0-85.0	9000	0.129	10950
3x185+2x95/2+FO	83.9-88.9	11100	0.106	12560
3x240+2x120/2+FO	92.8-97.8	14400	0.08	15770
3x300+2x150/2+FO	99.6-104.6	18000	0.064	18770

20/35 KV

Cross Section	Overall Diameter (min-max)	Permissible Tensile Force max.	conductor Resistance at 20°C	Appro. Weight
mm²	mm	n	Ω/km	kg/km
3x25+2x25/2+FO	59.8-63.8	1500	0.78	4580
3x35+2x25/2+FO	64.4-68.4	2100	0.554	5410
3x50+2x25/2+FO	68.1-72.1	3000	0.386	6270
3x50+2x50/2+FO	68.1-72.1	3000	0.386	6350
3x70+2x35/2+FO	71.8-75.8	4200	0.272	7350
