(N)3GHSSYCY

Application

These cables are used for the connection of mobile operating equipments in mines and underground excavations with hazardous environments. In stationary operation, e.g.highvoltage transformers in mining and tunnelling.

Standards

Construction	DIN VDE 0250-605 & IEC 60502-2
General Requirements	DIN VDE 0250-1
Guide Use	DIN VDE 0298-3
Electrical Tests	DIN VDE 0472-501, 503, 508
Non-Electrical Tests	DIN VDE 0472-401. 402,602,303, 615
Flame Retardant	VDE 0482-332-1-2,DIN EN 60332-1-2,IEC 60332-1

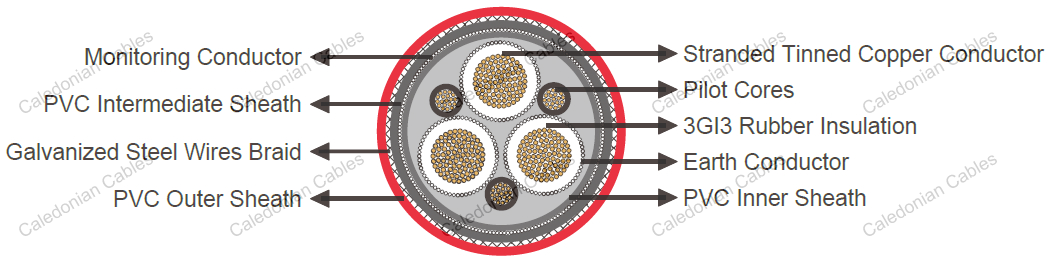

Cable Construction

Conductor	Flexible electrolytic stranded tinned copper wire DIN VDE 0295 Class 5
Insulation
Main Cores	3Gl3 type EPR compound
Pilot Control Cores	3Gl3 type EPR compound
Electrical Field Control	Extruded inner and outer rubber semiconductive layer For 3.6/6 kV cables outer semiconductive layer only
Protective Conductor	Made of plain copper wires or copper wire braiding laid up concentrically around each main core
Core Identification
Main Cores	Natural coloring, design acc to DIN VDE 0250 Part 1
Pilot Cores	Black colored and number coded
Lay Up	Three main conductors laid-up with three pilot control cores in the outer interstice.Protective cores are concentricalty wrapped over insulation of power cores
Inner Sheath	YM5 type PVC compound
Monitoring Conductor	Semioonductive tape + overall concentric lay of copper wires and syntetic tape over wires
Inner Sheath	PVC compound type DMV6 acc. to DIN VDE 0276-603
Armour	Galvanized steel wire braiding, coverage minimum 75% ST2 Type to IEC60502
Outer Sheath	PVC compound type DMV6 acc. to DIN VDE 0276-603, Red or Black

Technical Characteristics

Rated Voltage	3.6/6 KV	6/10 KV	8.7/15KV	12/20 KV	18/30 KV
AC Test Voltage	11KV	17KV	24KV	29KV	43KV
Max.Permissible Operating Voltage AC	4.2/7.2KV	6.9/12KV	10.4/18KV	13.9/24KV	20.8/36 KV
Max.Permissible Operating Voltage DC	5.4/10.8 KV	9/18 KV	13.5/27 KV	18/36 KV	27/54 KV
Min Bending Radius	DIN VDE 0298-3
Current Carrying Capacities	DIN VDE 0298-4
Working Temperature
Fixed	-40°C- +80°C
Mobile	+5°C- +80°C
Max.Tensile Load Of cable	20N/mm²
max.torsion	25°/m
Trawl Speed For Tunnelling App	Max.30 m/min
Minimum Distarce For Change Of Direction	20×D

Dimensions And Weight

3.6/6 KV

Cross Section	Overall Diameter (min-max)	conductor Resistance at 20°C	Appro. Weight
mm²	mm	Ω/km	kg/km
3x25+3x16/3E+3x2.5ST+ÜL	47.0-51.0	0.780	3600
3x35+3x16/3E+3x2.5ST+ÜL	49.0-54.0	0.554	4170
3x50+3x25/3E+3x2.5ST+ÜL	52.0-57.8	0.386	4850
3x70+3x35/3E+3x2.5ST+ÜL	56.1-61.2	0.272	5900
3x95+3x50/3E+3x2.5ST+ÜL	60.3-66.2	0.206	7044
3x120+3x70/3E+3x2.5ST+ÜL	63.8-70.2	0.161	8620
3x150+3x70/3E+3x2.5ST+ÜL	66.0-72.0	0.129	9860
3x185+3x95/3E+3x2.5ST+ÜL	70.0-74.0	0.106	11300

6/10 KV

Cross Section	Overall Diameter (min-max)	conductor Resistance at 20°C	Appro. Weight
mm²	mm	Ω/km	kg/km
3x25+3x16/3E+3x2.5ST+ÜL	54.0-57.0	0.780	4200
3x35+3x16/3E+3x2.5ST+ÜL	57.1-60.2	0.554	4650
3x50+3x25/3E+3x2.5ST+ÜL	60.4-63.6	0.386	5380
3x70+3x35/3E+3x2.5ST+ÜL	65.2-68.8	0.272	6450
3x95+3x50/3E+3x2.5ST+ÜL	68.0-71.9	0.206	7700
3x120+3x70/3E+3x2.5ST+ÜL	70.1-76.1	0.161	9260
3x150+3x70/3E+3x2.5ST+ÜL	73.0-78.0	0.129	10840
3x185+3x95/3E+3x2.5ST+ÜL	74.0-79.2	0.106	12400

8.7/15KV

Cross Section	Overall Diameter (min-max)	conductor Resistance at 20°C	Appro. Weight
mm²	mm	Ω/km	kg/km
3x25+3x16/3E+3x2.5ST+ÜL	58.0-62.0	0.780	4530
3x35+3x16/3E+3x2.5ST+ÜL	61.0-65.0	0.554	5100
3x50+3x25/3E+3x2.5ST+ÜL	64.7-68.7	0.386	5840
3x70+3x35/3E+3x2.5ST+ÜL	67.9-71.9	0.272	7840
3x95+3x50/3E+3x2.5ST+ÜL	72.4-76.4	0.206	9210

12/20 KV

Cross Section	Overall Diameter (min-max)	conductor Resistance at 20°C	Appro. Weight
mm²	mm	Ω/km	kg/km
3x25+3x16/3E+3x2.5ST+ÜL	62.3-66.3	0.780	4920
3x35+3x16/3E+3x2.5ST+ÜL	65.3-69.3	0.554	5400
3x50+3x25/3E+3x2.5ST+ÜL	69.0-73.0	0.386	6200
3x70+3x35/3E+3x2.5ST+ÜL	72.2-76.2	0.272	8240
3x95+3x50/3E+3x2.5ST+ÜL	76.8-80.8	0.206	9610
3x120+3x70/3E+3x2.5ST+ÜL	81.0-84.0	0.161	11260
3x150+3x70/3E+3x2.5ST+ÜL	84.5-88.7	0.129	13840
3x185+3x95/3E+3x2.5ST+ÜL	89.0-93.5	0.106	15400
