Steel Wire Cable Tray-Ancillary Items

Earth Conductor Clamps – Copper

Safe, durable earthing for protective conductors of cross section 16 to 50 mm²

  • Ordering Code Length (L) Csa of Cable
    　 mm mm²
    CSEC022016 22 16
    CSEC024035 24 35
    CSEC026050 26 50

Earth Terminal Supports

  • Earth Terminal Supports are installed using fixing kit B (x 2). Provide
    improved continuity for earthing when used in conjunction with earth
    conductor clamps (above) for the most demanding applications. Type:
    pre-galvanised steel, hot dip galvanised or stainless steel.



Earth Cable Clamp – Aluminium

  • A low cost earthing solution for a protective conductor of cross section 16 to 35 mm².

Earth Cable Support

  • Steel wire cable tray should be bonded to the earth of the installation every 15 to 20
    m. The earth cable support keeps cables tidy between bonding positions.

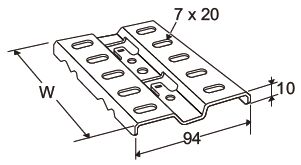

Multifix Base Plates

Multifix base plates are used in two orientations to suspend an installation with threaded rod or to mount luminaries underneath the installation.

  • Ordering Code Width (W)
    　 mm
    Pre-galvanised steel
    CSMPC100 100
    CSMPC150 150
    Hot dip galvanised
    CSMPG100 100
    CSMPG150 150
    Stainless steel
    CSMPS100 100
    CSMPS150 150
    PVC
    CSMPP100 100



Universal Conduit Take-off Plates

  • Universal Conduit Take-off Plates can be mounted on side or base of
    steel wire cable tray. Type: pre-galvanised steel or Dacromet.

Conduit Take-off Plates – Side

  • Conduit Take-off Plates – Side are used to provide 4 conduit outlets. Type: pregalvanised
    steel or Stainless steel.

Switch Box Take-off Plates

  • Switch Box Take-off Plates are used for simple clip-on fitting of junction boxes
    or other ancillary boxes to conduit take-off plates – Side. Type: pre-galvanised
    steel or stainless steel

Terminal Box Fixing Plate

  • Large side-mounting plate for many applications where a strong fixing is
    required. Type: pre-galvanised steel.

Universal Mounting Plates – Large

  • These plates are used to fit 50 to 100 mm width steel wire tray to the wall,
    and can also be used to mount small accessories on the side or base of steel
    wire tray. Not suitable for 28 mm depth tray. Type: pre-galvanised steel, hot dip
    galvanised or stainless steel.

Conduit Take-off Plates – Side

  • These plates are used to fit 50 mm width steel wire tray to the wall, and also
    used to mount small accessories to any width steel wire tray. Not suitable for 28
    mm depth tray. Type: pre-galvanised steel, hot dip galvanised or stainless steel.

Lighting Brackets

  • For suspending lighting under steel wire tray. Type: pre-galvanised
    steel.

Cable Dropout Plates

  • Type: pre-galvanised steel, Dacromet or stainless steel.

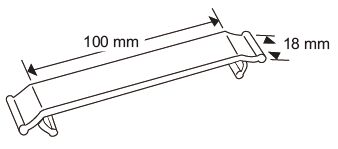

ID Clips

  • Type: pre-galvanised steel.
