Distribution Trunking Systems - Standard Trunking & Fittings

Distribution trunking classification

These steel distribution trunking was made to BS European standard BS EN 50085-2-1

Classification to BS EN 50085-1 2005 and BS EN 50085-2-1 2006

Clause 6.2 According to resistance to impact for installation and application: impact 2.0J

Clause 6.3 According to temperatures given in tables 1, 2 and 3:

  Min Max
1. Storage and transport –25 –
2. Installation –15 –
3. Application – +60

Clause 6.4 According to resistance to flame propagation : non-flame propagating (MG unpainted)

Clause 6.5 According to electrical continuity characteristic: CTS with electrical continuity (maximum linear impedance 1·0 milliohms per metre)

Clause 6.6 According to electrical insulating characteristic: CTS without electrical insulating characteristic

Clause 6.7 According to degree of protection provided by enclosure according to BS EN 60529: 1991: IP 30

Clause 6.9 According to system access cover retention: CTS access cover which can only be opened with a tool

Clause 6.10 According to electrically protective separation: CTS without internal protective partition

Clause 6.101 According to position when surface mounted: CTS surface mounted on wall; CTS surface mounted on ceiling (CTS mounted away from the wall or ceiling using fixing devices; Declare MG cover mounted upwards 2.0 metre hanger centres)

Clause 6.103 According to the functions provided: Type 2 CTS (distribution)

Trunking

  • This return edge steel surface trunking system with strength and rigidity is manufactured to BS EN 50085-2-1. Each trunking length is supplied with connector, lid and lid fixings. Supplied as standard with diecast turnbuckle fixings.

Single compartment

Width Depth Weight
mm mm kg/m
50 50 1.9
75 50 2.8
75 75 3.2
100 50 3.2
100 75 3.7
100 100 4.2
150 50 4.2
150 75 5.1
150 100 7.6
150 150 6.1
225 75 7.9
225 100 9.2
225 150 11.0
225 225 9.6
300 100 10.8
300 150 14.4
300 300

Spare Lids

Spare turnbuckle lids

Diecast turnbuckles included. Lids 50 to 150 wide: 6 per 3 m lid; Lids 225 and 300 wide: 4 per 1.5 m lid.

  • Width Length
    mm m
    50 3
    75 3
    100 3
    150 3
    225 1.5
    300 1.5

Spare screwfix and tamperproof screwfix lids

  • Screws and retaining clips not included. Lids up to 150 wide: 6 per 3 m lid; Lids 225 and 300 wide: 4 per 1.5 m lid.

Accessories

Trunking connectors

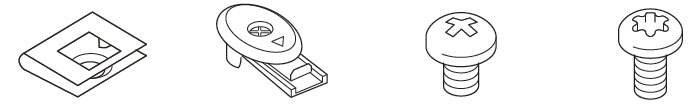

  • These connectors are supplied with connector screws, only available in pregalvanised inish.

Fitting to fitting adaptors

  • These adaptors are supplied with lid and lid fixings, available up to 150 mm x 150 mm.

Fastenings

Fittings

90° bends

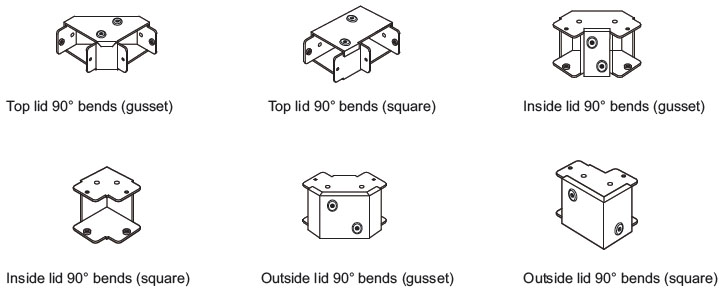

All 90° bends are supplied with lid, lid fixings and bend to trunking fastenings

45° bends

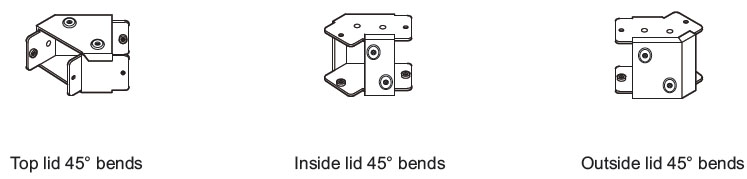

All 45° bends are supplied with lid, lid fixings and bend to trunking fastenings

Tees

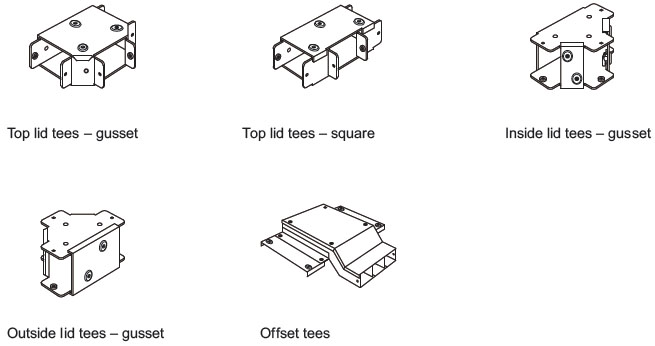

All top lid, inside lid and outside lid tees are supplied with lid, lid fixings and tee to trunking fastenings. Offset tees are supplied with lids and lid fixings only. Bridge flyovers reduce the cable capacity by 50% except on offset products which give full cable capacity.

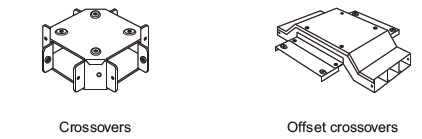

Crossovers

Reducers

  • Reducers are supplied with lids, lid fixings and fastenings. The larger trunking size uses standard connector (not supplied) for joining to reducer.

Bellmouths

  • Bellmouths are supplied with lids, lid fixings and bellmouth to trunking fastenings.

Change faces

  • Change faces are supplied with lids, lid fixings and one trunking connector fitted.

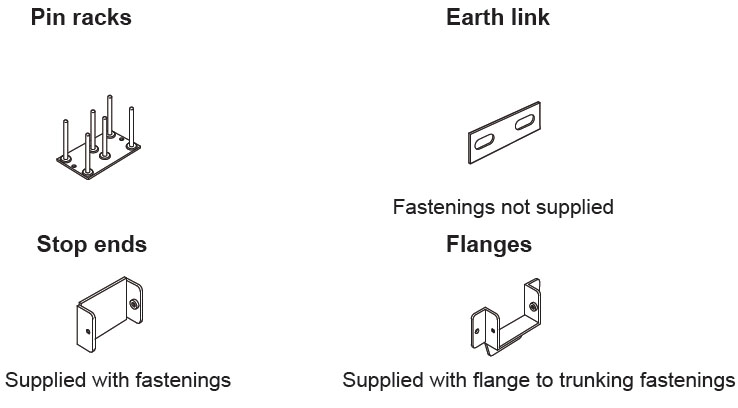

Accessories

Cable retainers

  • Change faces are supplied with lids, lid fixings and one trunking connector fitted.
  • Wide
    mm
    50
    75
    100
    150
    225
    300

1212

Stirrup hangers

Hole for M10 rod

  • Wide Max. Depth
    mm mm
    50 50
    75 75
    100 100
    150 150
    225 75
    225 100
    225 150
    225 225
    300 100
    300 150
    300 300

Loose partitions

  • Deep Length
    mm m
    50 3
    75 3
    100 3
    150 3
    225 3
    300 3

PVC edging strip

  • For fitting on to top edge of partition

Socket plates

Single

  • Wide
    mm
    100
    150
    225
    300

Twin

  • Wide
    mm
    100
    150
    225
    300
