Cable Ladder Systems-Supports
Overview
These supports are designed for use with light duty, medium duty, heavy duty and extra heavy duty ladders.
Heavy Duty Cantilever Arms

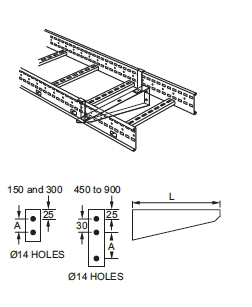

Heavy duty cantilever arms are supplied singly without fasteners, used to fit horizontal runs of ladder to flat surfaces and channel. All arms have slots in top flanges to accept ladder hold down brackets.
| Ordering Code | A | L |
|---|---|---|
| mm | mm | |
| CLCA150 | 30 | 250 |
| CLCA300 | 30 | 400 |
| CLCA450 | 45 | 550 |
| CLCA600 | 95 | 700 |
| CLCA750 | 145 | 850 |
| CLCA900 | 195 | 1000 |
Heavy Duty Trapeze Hangers
Heavy duty trapeze hangers are supplied singly without fasteners, used to support horizontal runs of ladder from overhead structure, use M12 threaded rods.
| Ordering Code | A |
|---|---|
| mm | |
| CLTH150 | 310 |
| CLTH300 | 460 |
| CLTH450 | 610 |
| CLTH600 | 760 |
| CLTH750 | 910 |
| CLTH900 | 1060 |
Hanger Rod Brackets

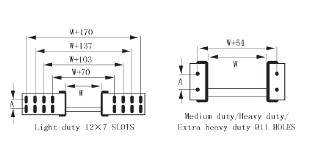

When hanger rod brackets are fitted to ladder, covers can not be used. Hanger rod brackets are supplied in pairs with bracket to ladder fasteners, used to support horizontal runs of ladder from overhead structure, use M10 threaded rods.
- Light duty: W+46
- Medium duty: W+66
- Heavy duty: W+66
- Extra heavy duty: W+66
-
Wall Support Brackets
-
Wall support brackets are supplied in pairs with bracket to ladder fasteners, used to fit horizontal or vertical runs of ladder to vertical surfaces and channel.
Medium duty: W+106 -
Heavy duty: W+106
-
90° End Connectors
90° end connectors are supplied in pairs with bracket to ladder fastener, used to fit ends of ladder to vertical surfaces
- Light duty: A=16mm
- Medium duty: A=50mm
- Heavy duty: A=75mm
- Extra heavy duty: A=75mm
