Cable Ladder Systems-Ancillary Items & Covers

Ancillary Items

Bendable connectors

Bendable connectors are supplied in pairs with fasteners, used for fabricating accessories on site to make up bends, reducers and compensate for misalignment of straight lengths. Application: Fabricating accessories on site from cut lengths of cable ladder, e.g. a long articulated bend; correcting minor mis-alignment problems; Reducing width of a run to the next size down when a properly manufactured reducer is not available.

Flexible expansion couplers

Flexible expansion couplers are supplied in pairs with fasteners, used to provide a semi-flexible joint to compensate for relative movement when spanning separate structures or changes in ladder lengths due to temperature variation.

Earth continuity connectors

Light duty: use M6 x 12 mm roofing nuts and bolts. Conductor area: 4 mm²

Medium duty, heavy duty and extra heavy duty: M6 brass fasteners included in pack, copper braid and copper lugs both in electrotinned finish. Conductor area: 16 mm²

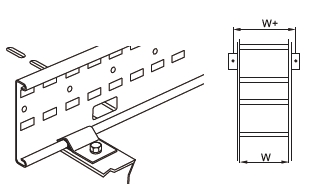

Hold down clip

Hold down clip is supplied singly without fasteners, used to fit ladder to flat surfaces, channel or heavy duty trapeze hangers which have slots in the top flange to accept fasteners
Light duty: use M6, centre distance between fixing
holes: W + 35
Medium duty: use M6, centre distance between fixing holes: W + 95 Heavy duty: use M6, centre distance between fixing holes: W + 95
Extra heavy duty: use M6, centre distance between fixing holes: W + 95

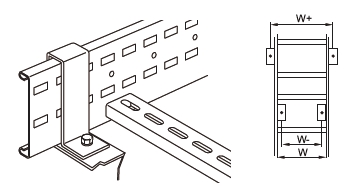

Hold down bracket

Hold down bracket is supplied singly without fasteners, used to fit ladder to flat surfaces, channel, cantilever arms or heavy duty trapeze hangers which have slots in the top flange to accept fasteners
Light duty: centre distance between fixing holes
(inside ladder): W - 38; centre distance between

Medium duty: centre distance between fixing
holes (inside ladder): W – 44; centre distance between fixing holes (outside ladder): W + 80
Heavy duty: centre distance between fixing holes (inside ladder): W - 44; centre distance between fixing holes (outside ladder): W + 80
Extra heavy duty: centre distance between fixing holes (inside ladder): W - 44; centre distance between fixing holes (outside ladder): W + 80

Boltable hold down bracket

Boltable hold down bracket is supplied singly with bracket to ladder fastener, used to fit ladder to channel in fabricated steel support structure.
Boltable angled hold down brackets

Boltable angled hold down brackets are supplied in handed pairs with bracket to ladder fastener, used to fit ladder to heavy duty cantilever arms and trapeze hangers which have slots in the side flange to accept fasteners.

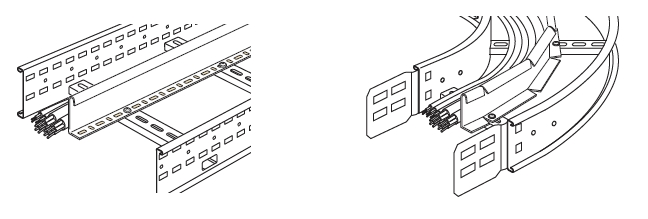

Straight dividers – 3 m     Curved dividers – 1.0 m

Vertical hinged connectors

Vertical hinged connectors are supplied in sets comprising four plates and fasteners, use with straight lengths to form risers or solve minor misalignment problems on site. When used with tee bracket, vertical hinged connectors can offset tee branch

Connect together to form pre-set angles or pre-assemble for adjustment on site using the holes / slots given below

15° 18° 22.5° 30° 45°
G:C A:F E:B B:G F:C

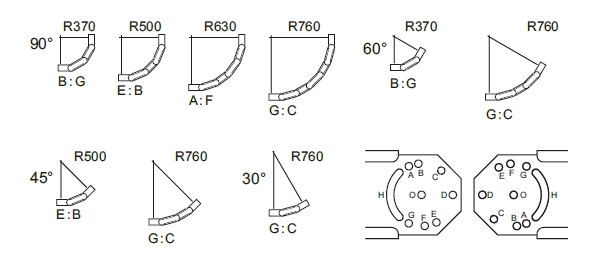

Articulated risers

Set comprises three ladder sections and the necessary vertical hinged connectors with fasteners. Use to form risers or solve most misalignment problems on site.

Connect together to form pre-set angles or pre-assembled for adjustment on site using the holes / slots shown

15° 18° 22·5° 0° 45°
G : C A : F E : B B : G F : C

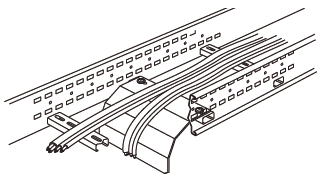

Dropout plate

Dropout plate is supplied with fasteners, used to provide local support for cables as they exit a cable ladder run between rungs.

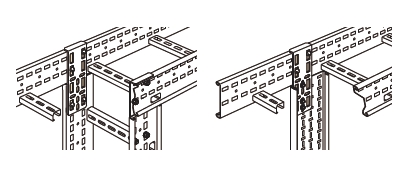

Rail-to-rail dropout brackets

Rail-to-rail dropout brackets are supplied in pairs with fasteners, used to attach a vertical run of ladder or tray beneath a horizontal main ladder run

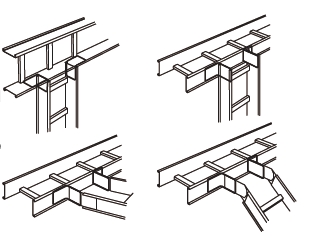

Tee brackets

Tee brackets are supplied in pairs with fasteners, used to create a branch of a straight ladder run. Couple with vertical hinged connectors or bendable connectors to offset the branch.

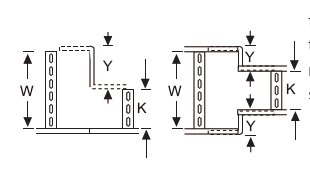

Short reducer brackets

Short reducer brackets are supplied singly with fasteners, used to form a reducer on site, can also be used to convert an equal tee into an unequal tee. For straight reducer, use in pairs. For offset reducer, use singly with straight coupler.

  • Offset reducer: Y = W - K
  • Straight reducer: Y = (W - K)/2
  • W = main ladder mm
  • K = reduced ladder mm

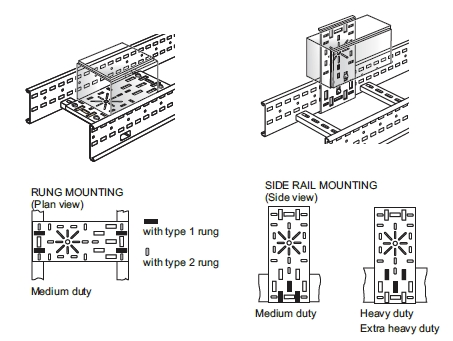

  • Ancillary mounting bracket
  • Ancillary mounting bracket are supplied singly with bracket to ladder fastenings

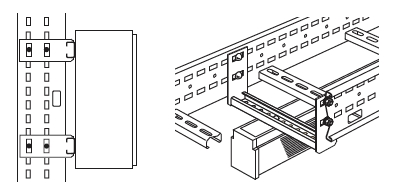

  • Ancillary mounting plate
  • A n c i l l a r y m o u n t i n g p l a t e s a r e supplied singly with bracket to ladder fasteners. Slots for M6 fasteners are provided for mounting ancillary items.

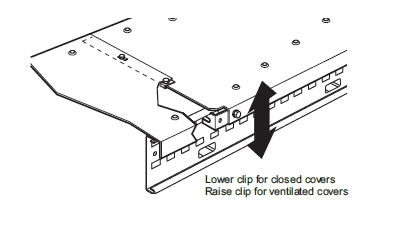

  • Covers for Medium Duty, Heavy Duty & Extra Heavy Duty

    Covers are supplied with clips and fasteners. Covers for both closed and ventilated installations are common (except when using inside and outside risers) 600 mm wide and above are overlap jointed for rigidity.
