Channel Support Systems - Framework Brackets

Overview

These brackets are manufactured to BS 6946. Unless otherwise stated, brackets are made from 6 mm thick steel (5 mm thick in stainless steel), are 40 mm wide and have 14 mm diameter holes to accept M12 (or smaller) setscrews. All bend radii are 5 mm unless otherwise stated. Steel complies with BS EN 10111. Minimum yield stress of material is 170 N/mm2. Channel nuts and setscrews are not supplied with brackets and must be ordered separately. The standard finish for all brackets is hot dip galvanised to BS EN ISO 1461. Stainless steel is also available unless otherwise stated.

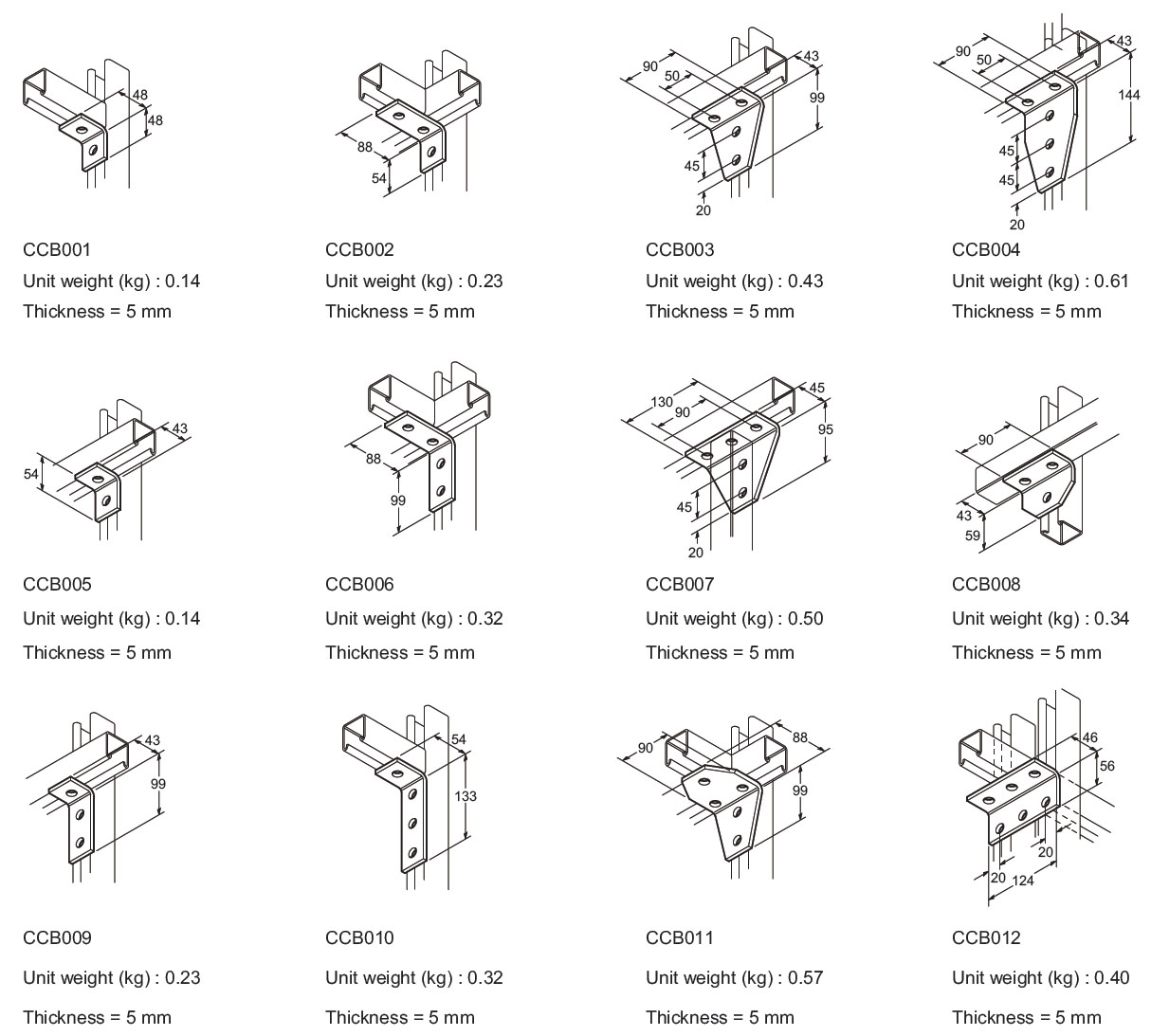

90° Brackets

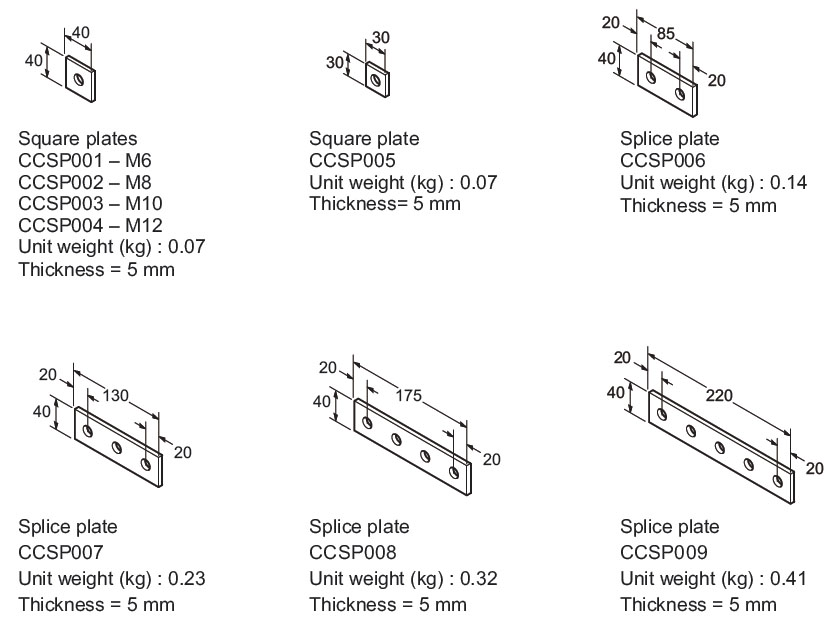

Square and Splice Plates

Splice plates: holes spaced at 45 mm centres.

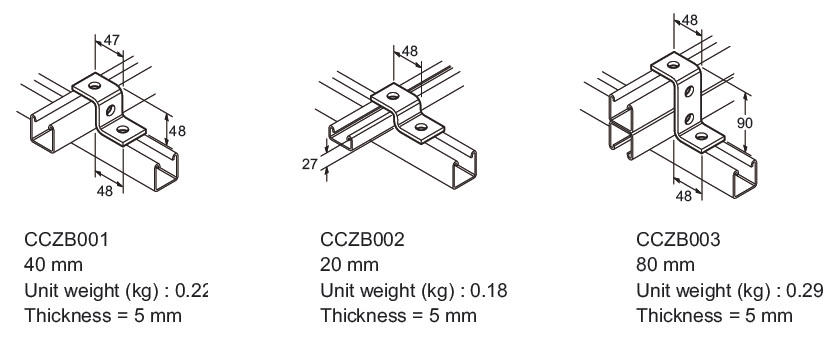

Z Brackets

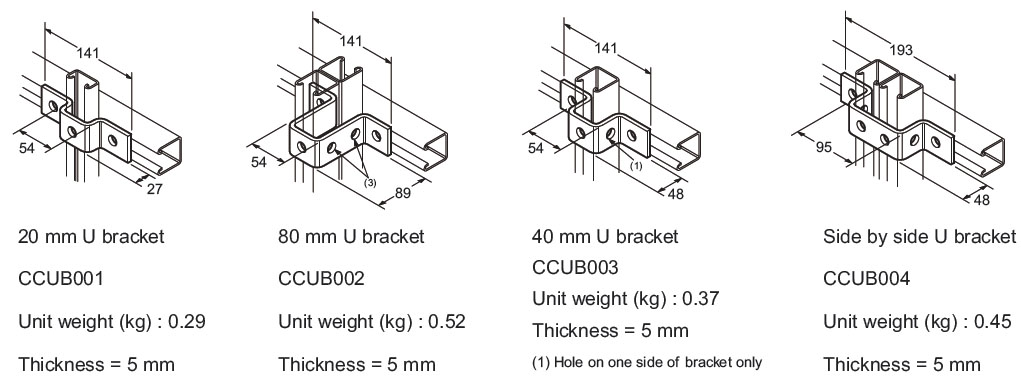

U Brackets

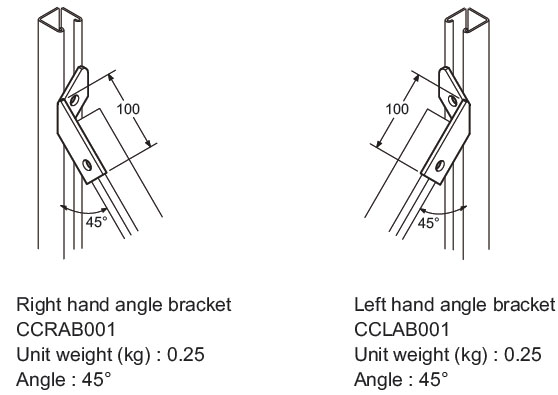

Angle Brackets

Obtuse angle brackets

Unit Weight	Angle	Thickness	A
kg	φ	mm	mm
0.25	15°	5	40
0.25	22.5°	5	40
0.25	30°	5	40
0.25	37.5°	5	40
0.25	45°	5	40
0.25	52.5°	5	40
0.25	60°	5	40
0.25	67.5°	5	40
0.25	75°	5	40
0.25	82.5°	5	40

Acute angle brackets

Unit Weight	Angle	Thickness	A
kg	φ	mm	mm
0.32	30°	5	70
0.32	37.5°	5	70
0.29	45°	5	60
0.29	52.5°	5	60
0.25	60°	5	40
0.25	67.5°	5	40
0.25	75°	5	40
0.25	82.5°	5	40

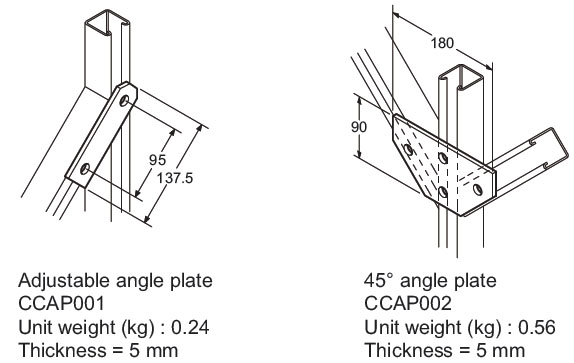

Angle Plates

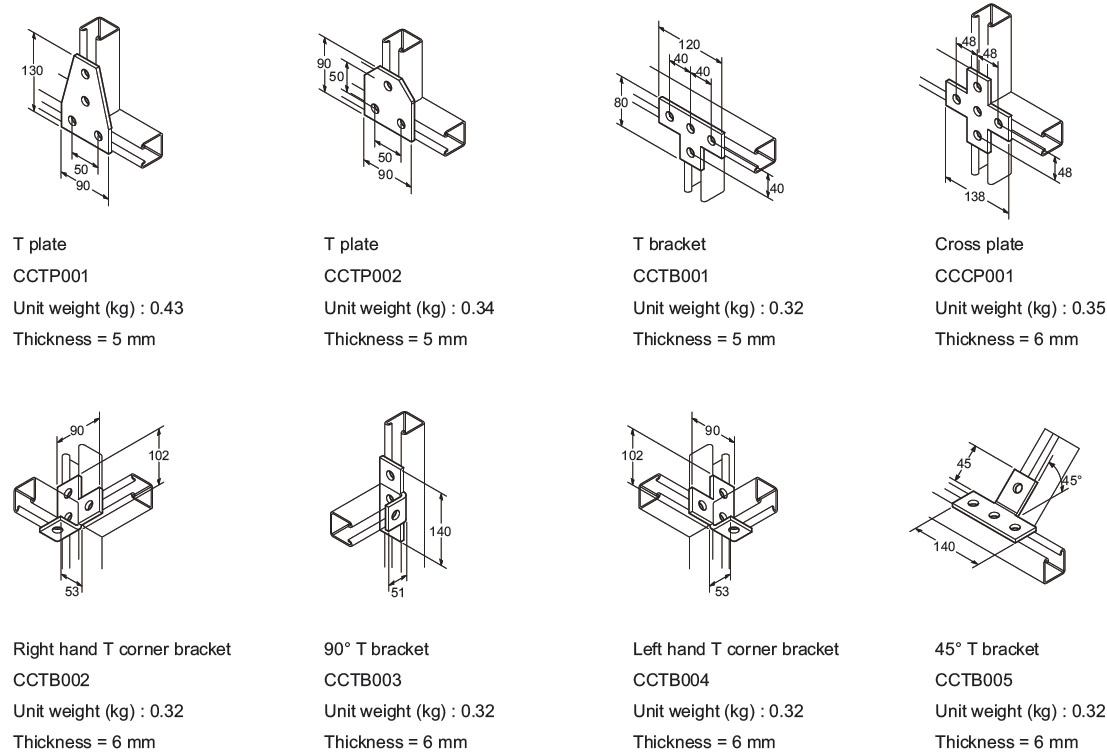

T Plates and Brackets

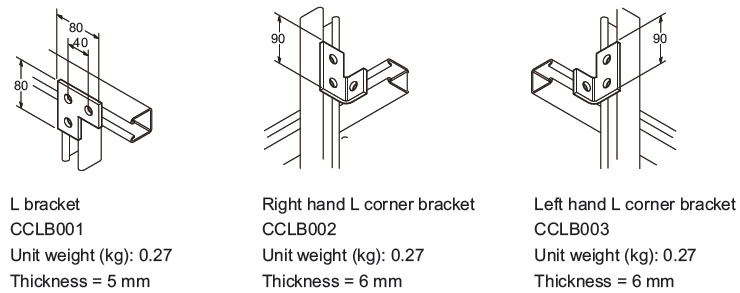

L Brackets

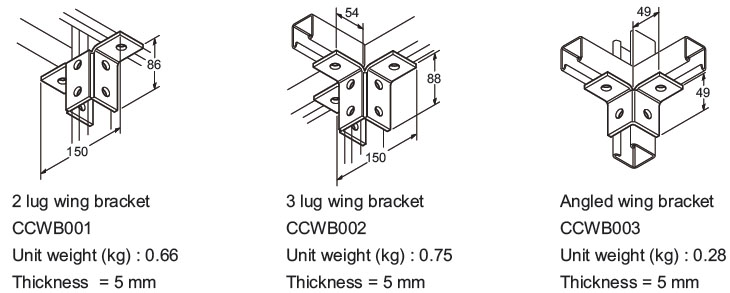

Wing Brackets

SB707 are not available in stainless steel (S) finish

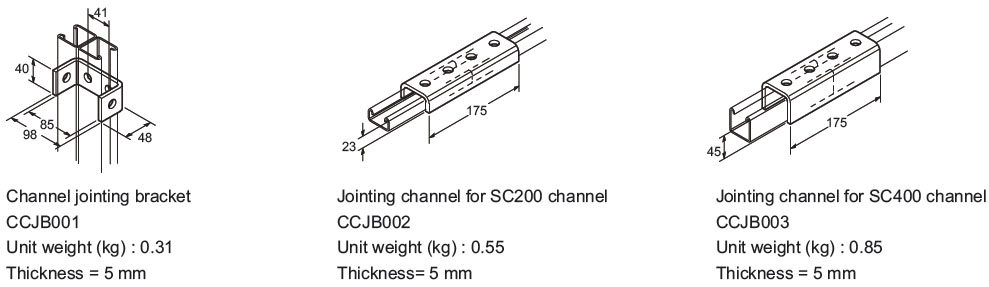

Jointing Brackets and Channels

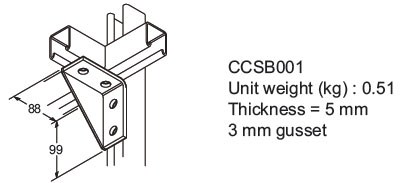

Shelf Bracket

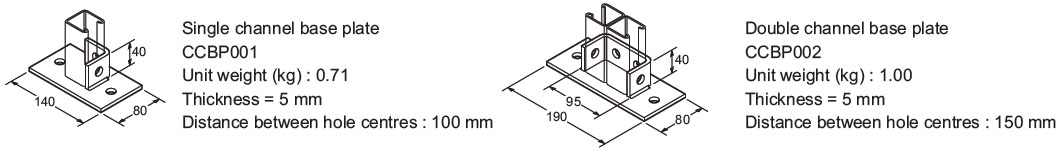

Base Plates

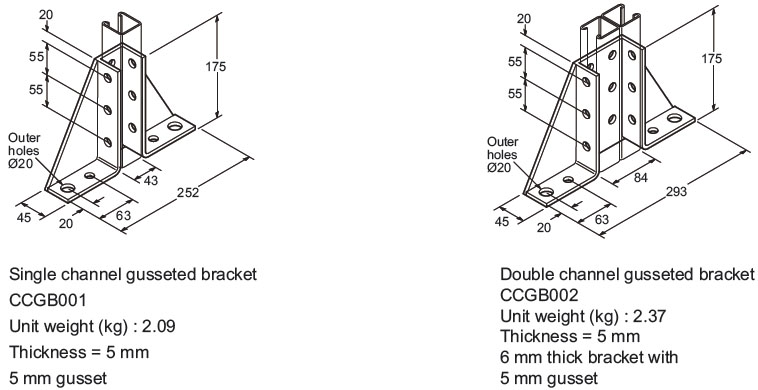

Gusseted Brackets

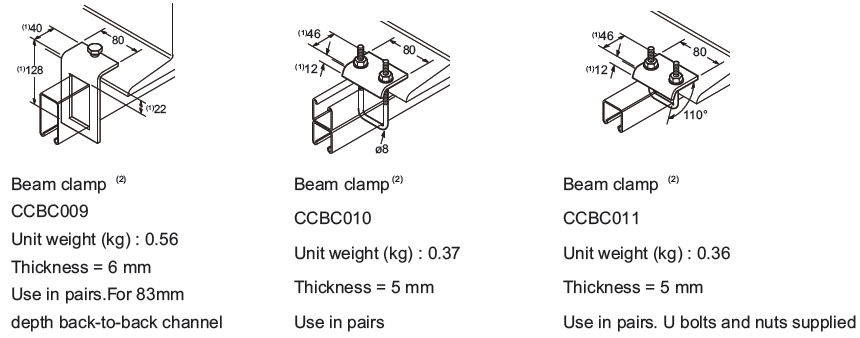

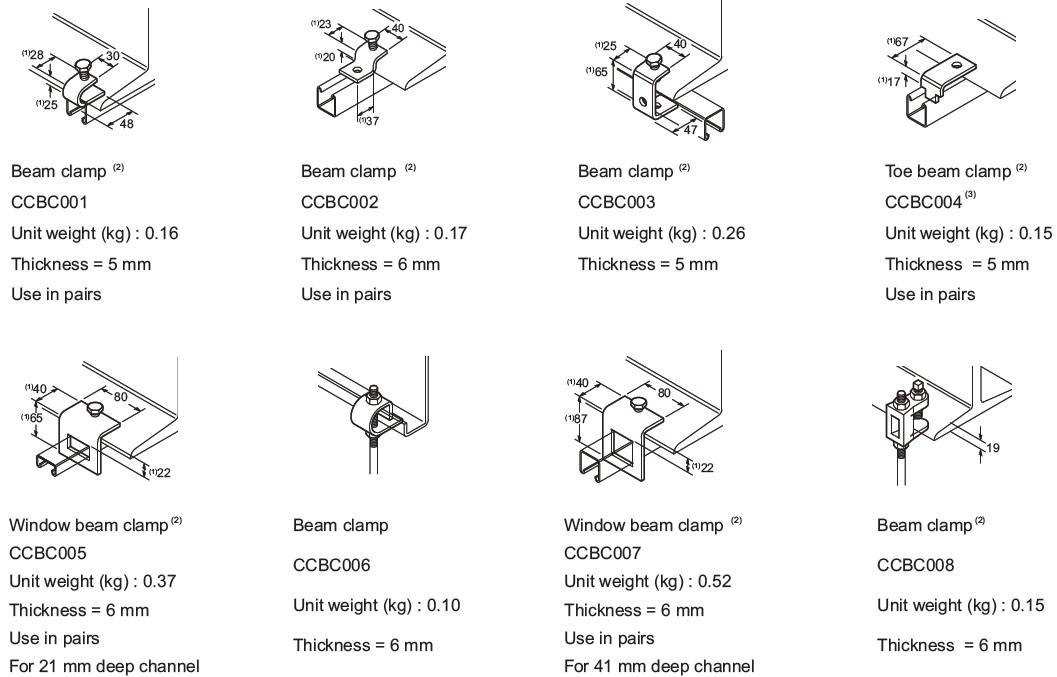

Beam, Window Beam and Toe Beam Clamps

(1) Indicates inside dimensions

(2) Beam clamps are supplied with nuts, bolts, cone point screws and U bolts where shown

(3) Requires 2 setscrews and channel nuts for fixing (not included)

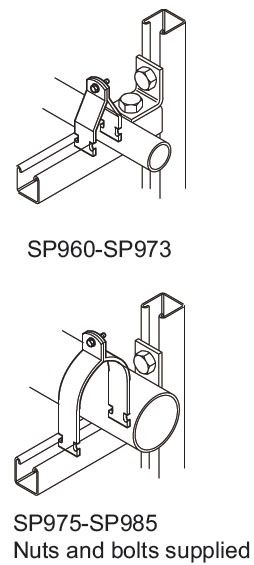

Pipe Clamps

Unit Weight	Pipe Diameter Size
kg	mm
0.06	10–14
0.07	13–17
0.08	17–22
0.09	22–26
0.10	25–35
0.11	32–42
0.13	42–59
0.15	54–65
0.16	62–71
0.17	73–83
0.19	81–87
0.20	89–101
0.22	101–113
0.24	113–125
0.25	125–135
0.29	145–155
0.33	170–180
0.38	200–212
0.41	220–230
