These cables are used in thermocouple circuits, petrochemical plants, utilities and industrial plants.

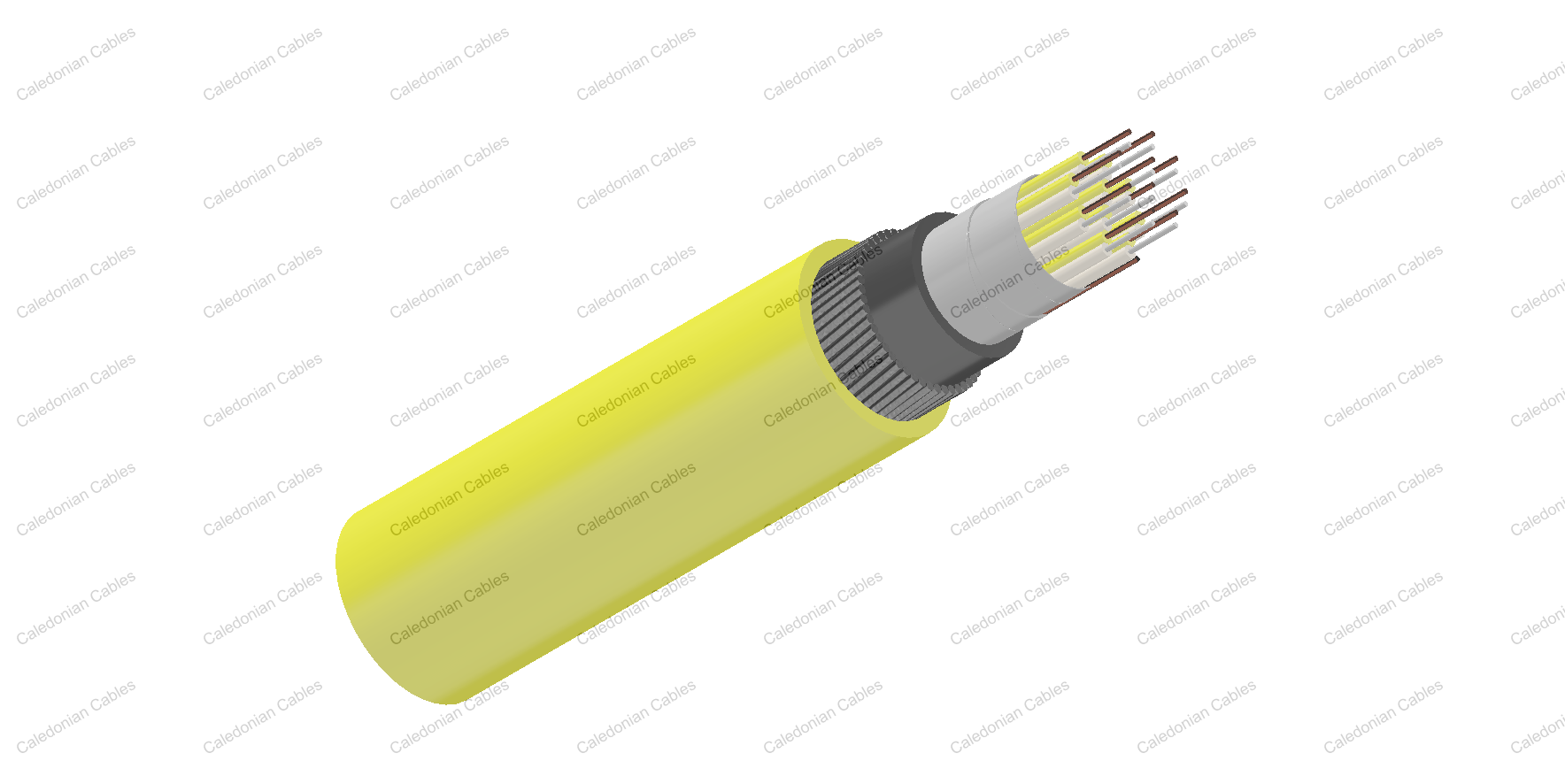

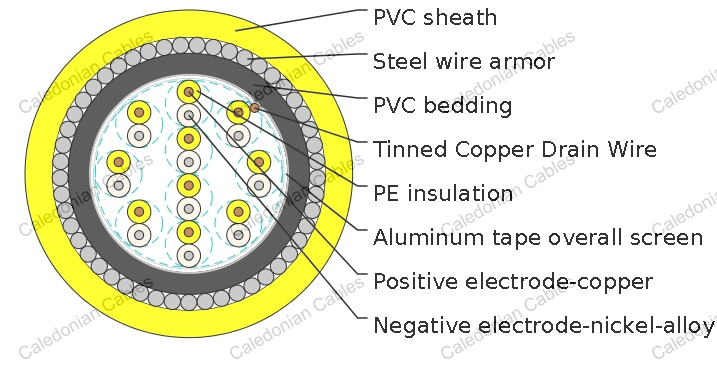

| Conductor | Solid |
|---|---|
| Type applicable | KX, EX, JX, TX, NX, KCA, KCB, RCA, RCB, SCA, RCB, BC |
| Insulation | PVC, PE, XLPE or LSZH thermoplastic material |
| Wrapping | At least 1 layer of plastic tape |
| Overall screen | 24 μm aluminium / PETP tape over 7-stranded tinned copper drain wire, 0.5 mm2 |
| Bedding | PE, PVC or LSZH thermoplastic material |
| Armor | Galvanized round steel wires |
| Outer sheath | PVC or LSZH thermoplastic material |
| Color code | According to IEC 60584-3 |
| Flame retardancy | IEC 60332-1 |
| Flame propagation | IEC 60332 cat. C |
| Temperature range | -30°C up to 70°C during operation. -5°C up to 50°C during installation. |
| Conductor Size (mm²) | No. of Pairs | Insulation Thickness (mm) | Bedding Thickness (mm) | Diameter of Armor Wire (mm) | Outer Sheath Thickness (mm) | Nominal O.D. (mm) | Weight (kg/km) |
|---|---|---|---|---|---|---|---|
| 0.5 | 1 | 0.4 | 0.8 | 0.9 | 1.3 | 9.6 | 206 |
| 0.5 | 2 | 0.4 | 0.8 | 0.9 | 1.4 | 12.1 | 295 |
| 0.5 | 4 | 0.4 | 0.9 | 0.9 | 1.4 | 13.4 | 374 |
| 0.5 | 6 | 0.4 | 1.1 | 0.9 | 1.4 | 15.4 | 480 |
| 0.5 | 8 | 0.4 | 1.1 | 0.9 | 1.5 | 16.3 | 546 |
| 0.5 | 10 | 0.4 | 1.2 | 0.9 | 1.5 | 17.9 | 656 |
| 0.5 | 12 | 0.4 | 1.2 | 0.9 | 1.5 | 18.5 | 703 |
| 0.5 | 16 | 0.4 | 1.2 | 1.25 | 1.6 | 21.1 | 975 |
| 0.5 | 20 | 0.4 | 1.2 | 1.25 | 1.6 | 22.5 | 1093 |
| 0.5 | 24 | 0.4 | 1.3 | 1.25 | 1.7 | 24.3 | 1285 |
| Conductor Size (mm²) | No. of Pairs | Insulation Thickness (mm) | Bedding Thickness (mm) | Diameter of Armor Wire (mm) | Outer Sheath Thickness (mm) | Nominal O.D. (mm) | Weight (kg/km) |
|---|---|---|---|---|---|---|---|
| 0.8 | 1 | 0.4 | 0.8 | 0.9 | 1.3 | 10.0 | 227 |
| 0.8 | 2 | 0.4 | 0.9 | 0.9 | 1.4 | 13.0 | 343 |
| 0.8 | 4 | 0.4 | 0.9 | 0.9 | 1.4 | 14.3 | 431 |
| 0.8 | 6 | 0.4 | 1.1 | 0.9 | 1.5 | 16.7 | 567 |
| 0.8 | 8 | 0.4 | 1.2 | 0.9 | 1.5 | 17.6 | 657 |
| 0.8 | 10 | 0.4 | 1.2 | 0.9 | 1.6 | 19.4 | 788 |
| 0.8 | 12 | 0.4 | 1.2 | 1.25 | 1.6 | 20.8 | 999 |
| 0.8 | 16 | 0.4 | 1.2 | 1.25 | 1.7 | 22.9 | 1175 |
| 0.8 | 20 | 0.4 | 1.3 | 1.25 | 1.7 | 24.8 | 1347 |
| 0.8 | 24 | 0.4 | 1.3 | 1.25 | 1.7 | 26.3 | 1556 |
| Conductor Size (mm²) | No. of Pairs | Insulation Thickness (mm) | Bedding Thickness (mm) | Diameter of Armor Wire (mm) | Outer Sheath Thickness (mm) | Nominal O.D. (mm) | Weight (kg/km) |
|---|---|---|---|---|---|---|---|
| 1.0 | 1 | 0.4 | 0.8 | 0.9 | 1.3 | 10.3 | 240 |
| 1.0 | 2 | 0.4 | 0.9 | 0.9 | 1.4 | 13.4 | 366 |
| 1.0 | 4 | 0.4 | 1.1 | 0.9 | 1.4 | 15.1 | 489 |
| 1.0 | 6 | 0.4 | 1.2 | 0.9 | 1.5 | 17.4 | 629 |
| 1.0 | 8 | 0.4 | 1.2 | 0.9 | 1.5 | 18.2 | 720 |
| 1.0 | 10 | 0.4 | 1.2 | 1.25 | 1.6 | 20.9 | 1016 |
| 1.0 | 12 | 0.4 | 1.2 | 1.25 | 1.6 | 21.5 | 1094 |
| 1.0 | 16 | 0.4 | 1.3 | 1.25 | 1.7 | 24.0 | 1312 |
| 1.0 | 20 | 0.4 | 1.3 | 1.25 | 1.7 | 25.7 | 1490 |
| 1.0 | 24 | 0.4 | 1.3 | 1.25 | 1.7 | 27.3 | 1727 |
| Conductor Size (mm²) | No. of Pairs | Insulation Thickness (mm) | Bedding Thickness (mm) | Diameter of Armor Wire (mm) | Outer Sheath Thickness (mm) | Nominal O.D. (mm) | Weight (kg/km) |
|---|---|---|---|---|---|---|---|
| 1.3 | 1 | 0.4 | 0.8 | 0.9 | 1.3 | 10.6 | 258 |
| 1.3 | 2 | 0.4 | 0.9 | 0.9 | 1.4 | 14.6 | 399 |
| 1.3 | 4 | 0.4 | 1.1 | 0.9 | 1.5 | 16.8 | 546 |
| 1.3 | 6 | 0.4 | 1.2 | 0.9 | 1.5 | 19.3 | 701 |
| 1.3 | 8 | 0.4 | 1.2 | 0.9 | 1.6 | 20.4 | 817 |
| 1.3 | 10 | 0.4 | 1.2 | 1.25 | 1.6 | 23.2 | 1136 |
| 1.3 | 12 | 0.4 | 1.2 | 1.25 | 1.7 | 24.2 | 1240 |
| 1.3 | 16 | 0.4 | 1.3 | 1.25 | 1.7 | 26.8 | 1484 |
| 1.3 | 20 | 0.4 | 1.3 | 1.25 | 1.7 | 28.9 | 1697 |
| 1.3 | 24 | 0.4 | 1.5 | 1.25 | 1.8 | 31.5 | 2025 |
| Conductor Size (mm²) | No. of Pairs | Insulation Thickness (mm) | Bedding Thickness (mm) | Diameter of Armor Wire (mm) | Outer Sheath Thickness (mm) | Nominal O.D. (mm) | Weight (kg/km) |
|---|---|---|---|---|---|---|---|
| 1.5 | 1 | 0.5 | 0.8 | 0.9 | 1.3 | 11.2 | 284 |
| 1.5 | 2 | 0.5 | 1.1 | 0.9 | 1.4 | 16.1 | 467 |
| 1.5 | 4 | 0.5 | 1.2 | 0.9 | 1.5 | 18.3 | 627 |
| 1.5 | 6 | 0.5 | 1.2 | 0.9 | 1.6 | 21.2 | 802 |
| 1.5 | 8 | 0.5 | 1.2 | 1.25 | 1.6 | 22.9 | 1082 |
| 1.5 | 10 | 0.5 | 1.3 | 1.25 | 1.7 | 25.7 | 1319 |
| 1.5 | 12 | 0.5 | 1.3 | 1.25 | 1.7 | 26.6 | 1430 |
| 1.5 | 16 | 0.5 | 1.3 | 1.25 | 1.7 | 29.3 | 1697 |
| 1.5 | 20 | 0.5 | 1.5 | 1.25 | 1.8 | 32.4 | 2000 |
| 1.5 | 24 | 0.5 | 1.5 | 1.6 | 1.9 | 35.5 | 2598 |
*The number here is just approx. weight. It changes according to the insulation material and the conductor used in different type of extension cable and compensating cable.
