These cables are used in thermocouple circuits, petrochemical plants, utilities and industrial plants.

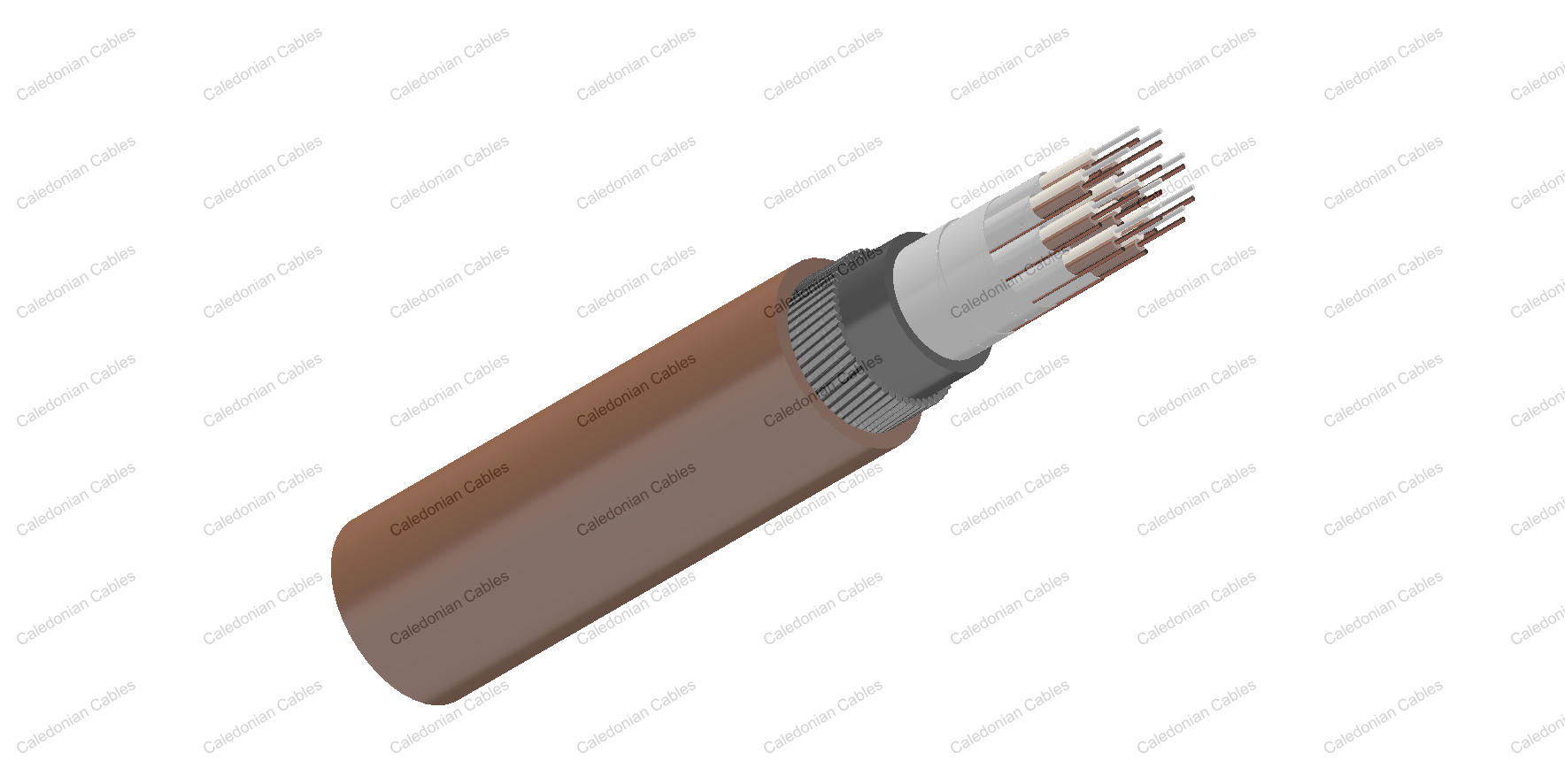

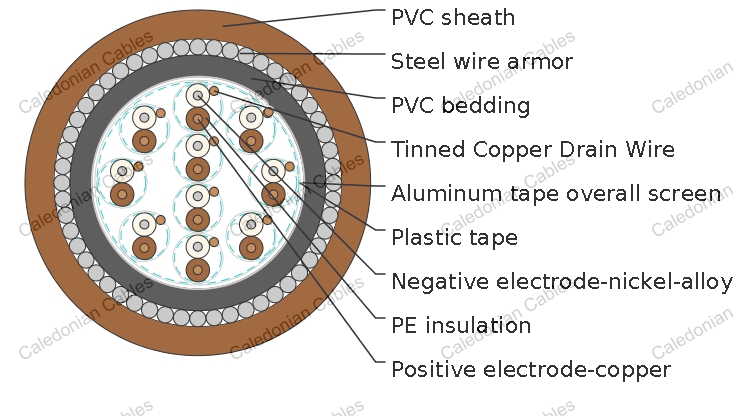

| Conductor | Solid |
|---|---|
| Type applicable | KX, EX, JX, TX, NX, KCA, KCB, RCA, RCB, SCA, RCB, BC |
| Insulation | PVC, PE, XLPE or LSZH thermoplastic material |
| Individual screen | 24 μm aluminium / PETP tape over solid tinned copper drain wire, 0.6 mm |
| Wrapping | At least 1 layer of plastic tape |
| Overall screen | 24 μm aluminium / PETP tape over 7-stranded tinned copper drain wire, 0.5 mm2 |
| Bedding | PE, PVC or LSZH thermoplastic material |
| Armor | Galvanized round steel wires |
| Outer sheath | PVC or LSZH thermoplastic material |
| Color code | According to IEC 60584-3 |
| Flame retardancy | IEC 60332-1 |
| Flame propagation | IEC 60332 cat. C |
| Temperature range | -30°C up to 70°C during operation. -5°C up to 50°C during installation. |
| Conductor Size (mm²) | No. of Pairs | Insulation Thickness (mm) | Bedding Thickness (mm) | Diameter of Armor Wire (mm) | Outer Sheath Thickness (mm) | Nominal O.D. (mm) | Weight (kg/km) |
|---|---|---|---|---|---|---|---|
| 0.5 | 2 | 0.4 | 0.9 | 0.9 | 1.4 | 13.5 | 314 |
| 0.5 | 4 | 0.4 | 1.1 | 0.9 | 1.4 | 15.2 | 393 |
| 0.5 | 6 | 0.4 | 1.2 | 0.9 | 1.5 | 17.6 | 497 |
| 0.5 | 8 | 0.4 | 1.2 | 0.9 | 1.5 | 18.4 | 567 |
| 0.5 | 10 | 0.4 | 1.2 | 1.25 | 1.6 | 21.0 | 832 |
| 0.5 | 12 | 0.4 | 1.2 | 1.25 | 1.6 | 21.7 | 893 |
| 0.5 | 16 | 0.4 | 1.3 | 1.25 | 1.7 | 24.2 | 1057 |
| 0.5 | 20 | 0.4 | 1.3 | 1.25 | 1.7 | 26.0 | 1196 |
| 0.5 | 24 | 0.4 | 1.3 | 1.25 | 1.8 | 27.8 | 1397 |
| Conductor Size (mm²) | No. of Pairs | Insulation Thickness (mm) | Bedding Thickness (mm) | Diameter of Armor Wire (mm) | Outer Sheath Thickness (mm) | Nominal O.D. (mm) | Weight (kg/km) |
|---|---|---|---|---|---|---|---|
| 0.8 | 2 | 0.4 | 0.9 | 0.9 | 1.4 | 14.2 | 351 |
| 0.8 | 4 | 0.4 | 1.1 | 0.9 | 1.5 | 16.3 | 460 |
| 0.8 | 6 | 0.4 | 1.2 | 0.9 | 1.5 | 18.7 | 576 |
| 0.8 | 8 | 0.4 | 1.2 | 0.9 | 1.6 | 19.7 | 675 |
| 0.8 | 10 | 0.4 | 1.2 | 1.25 | 1.6 | 22.4 | 966 |
| 0.8 | 12 | 0.4 | 1.3 | 1.25 | 1.7 | 23.6 | 1059 |
| 0.8 | 16 | 0.4 | 1.3 | 1.25 | 1.7 | 25.8 | 1246 |
| 0.8 | 20 | 0.4 | 1.3 | 1.25 | 1.8 | 28.0 | 1439 |
| 0.8 | 24 | 0.4 | 1.5 | 1.25 | 1.8 | 30.3 | 1667 |
| Conductor Size (mm²) | No. of Pairs | Insulation Thickness (mm) | Bedding Thickness (mm) | Diameter of Armor Wire (mm) | Outer Sheath Thickness (mm) | Nominal O.D. (mm) | Weight (kg/km) |
|---|---|---|---|---|---|---|---|
| 1.0 | 2 | 0.4 | 1.1 | 0.9 | 1.4 | 15.0 | 374 |
| 1.0 | 4 | 0.4 | 1.1 | 0.9 | 1.5 | 16.7 | 495 |
| 1.0 | 6 | 0.4 | 1.2 | 0.9 | 1.6 | 19.4 | 636 |
| 1.0 | 8 | 0.4 | 1.2 | 1.25 | 1.6 | 21.0 | 884 |
| 1.0 | 10 | 0.4 | 1.2 | 1.25 | 1.7 | 23.3 | 1064 |
| 1.0 | 12 | 0.4 | 1.3 | 1.25 | 1.7 | 24.3 | 1153 |
| 1.0 | 16 | 0.4 | 1.3 | 1.25 | 1.7 | 26.7 | 1365 |
| 1.0 | 20 | 0.4 | 1.5 | 1.25 | 1.8 | 29.4 | 1582 |
| 1.0 | 24 | 0.4 | 1.5 | 1.6 | 1.9 | 32.3 | 2098 |
| Conductor Size (mm²) | No. of Pairs | Insulation Thickness (mm) | Bedding Thickness (mm) | Diameter of Armor Wire (mm) | Outer Sheath Thickness (mm) | Nominal O.D. (mm) | Weight (kg/km) |
|---|---|---|---|---|---|---|---|
| 1.3 | 2 | 0.4 | 1.1 | 0.9 | 1.5 | 16.5 | 415 |
| 1.3 | 4 | 0.4 | 1.2 | 0.9 | 1.5 | 18.6 | 545 |
| 1.3 | 6 | 0.4 | 1.2 | 1.25 | 1.6 | 22.2 | 853 |
| 1.3 | 8 | 0.4 | 1.2 | 1.25 | 1.6 | 23.3 | 980 |
| 1.3 | 10 | 0.4 | 1.3 | 1.25 | 1.7 | 26.1 | 1183 |
| 1.3 | 12 | 0.4 | 1.3 | 1.25 | 1.7 | 27.0 | 1288 |
| 1.3 | 16 | 0.4 | 1.3 | 1.25 | 1.8 | 30.0 | 1553 |
| 1.3 | 20 | 0.4 | 1.5 | 1.25 | 1.9 | 33.2 | 1806 |
| 1.3 | 24 | 0.4 | 1.5 | 1.6 | 1.9 | 36.1 | 2358 |
| Conductor Size (mm²) | No. of Pairs | Insulation Thickness (mm) | Bedding Thickness (mm) | Diameter of Armor Wire (mm) | Outer Sheath Thickness (mm) | Nominal O.D. (mm) | Weight (kg/km) |
|---|---|---|---|---|---|---|---|
| 1.5 | 2 | 0.5 | 1.1 | 0.9 | 1.5 | 17.6 | 461 |
| 1.5 | 4 | 0.5 | 1.2 | 0.9 | 1.5 | 19.9 | 611 |
| 1.5 | 6 | 0.5 | 1.2 | 1.25 | 1.6 | 23.8 | 957 |
| 1.5 | 8 | 0.5 | 1.3 | 1.25 | 1.7 | 25.4 | 1119 |
| 1.5 | 10 | 0.5 | 1.3 | 1.25 | 1.7 | 28.1 | 1336 |
| 1.5 | 12 | 0.5 | 1.3 | 1.25 | 1.7 | 29.2 | 1459 |
| 1.5 | 16 | 0.5 | 1.5 | 1.25 | 1.9 | 33.2 | 1783 |
| 1.5 | 20 | 0.5 | 1.5 | 1.6 | 1.9 | 36.7 | 2308 |
| 1.5 | 24 | 0.5 | 1.7 | 1.6 | 2.0 | 39.8 | 2706 |
*The number here is just approx. weight. It changes according to the insulation material and the conductor used in different type of extension cable and compensating cable.
