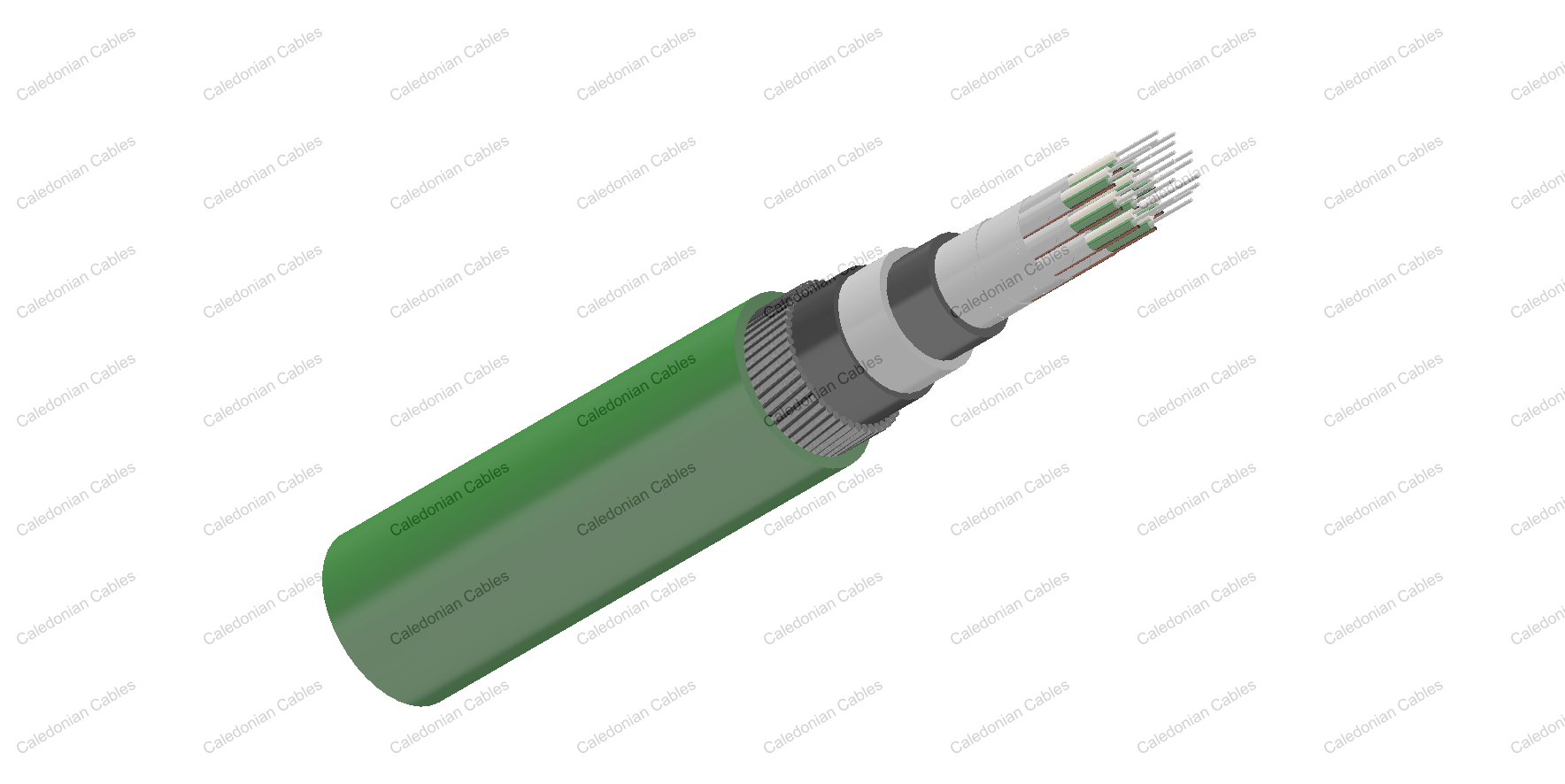

These cable can be used in cable tray or conduit to connect different types of thermocouple in industrial process controls, refineries, oil and gas plant. Excellent protection against corrosion, humidity and poor vibration resistance.

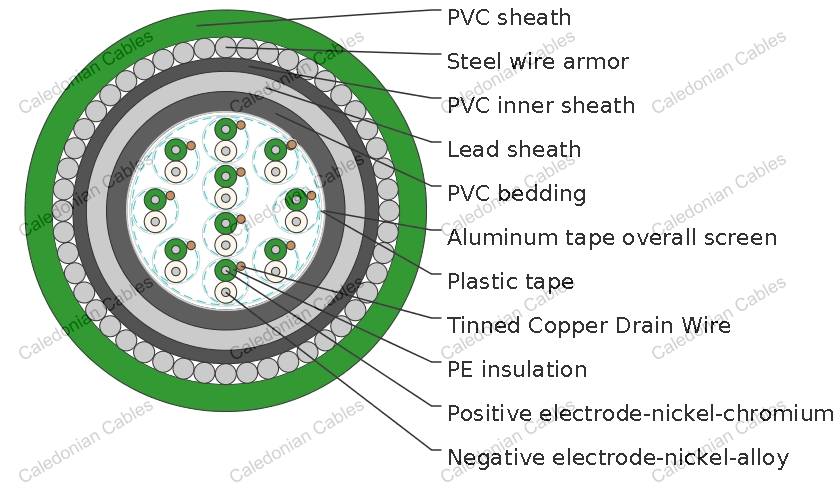

| Conductor | Solid |
|---|---|
| Type applicable | KX, EX, JX, TX, NX, KCA, KCB, RCA, RCB, SCA, RCB, BC |
| Insulation | PVC, PE, XLPE or LSZH thermoplastic material |
| Individual screen | 24 μm aluminium / PETP tape over solid tinned copper drain wire, 0.6 mm |
| Wrapping | At least 1 layer of plastic tape |
| Overall screen | 24 μm aluminium / PETP tape over 7-stranded tinned copper drain wire, 0.5 mm2 |
| Bedding | PE, PVC or LSZH thermoplastic material |
| Lead sheath | Lead alloy |
| Inner sheath | PVC or LSZH thermoplastic material |
| Armor | Galvanized round steel wires |
| Outer sheath | PVC or LSZH thermoplastic material |
| Color code | According to IEC 60584-3 |
| Flame retardancy | IEC 60332-1 |
| Flame propagation | IEC 60332 cat. C |
| Temperature range | -30°C up to 70°C during operation. -5°C up to 50°C during installation. |
| No. of Pairs | Insulation Thickness (mm) | Bedding Thickness (mm) | Lead Sheath Thickness (mm) | Inner Sheath Thickness (mm) | Diameter of Armor Wire (mm) | Outer Sheath Thickness (mm) | Nominal O.D. (mm) | Weight (kg/km) |
|---|---|---|---|---|---|---|---|---|
| 2 | 0.4 | 0.9 | 1.1 | 0.8 | 0.9 | 1.4 | 17.3 | 892 |
| 4 | 0.4 | 1.1 | 1.1 | 0.8 | 0.9 | 1.4 | 18.9 | 1078 |
| 6 | 0.4 | 1.2 | 1.1 | 0.8 | 0.9 | 1.5 | 21.2 | 1309 |
| 8 | 0.4 | 1.2 | 1.2 | 0.8 | 0.9 | 1.5 | 22.3 | 1491 |
| 10 | 0.4 | 1.2 | 1.2 | 0.8 | 1.25 | 1.6 | 25.4 | 1912 |
| 12 | 0.4 | 1.2 | 1.2 | 0.9 | 1.25 | 1.6 | 25.8 | 2000 |
| 16 | 0.4 | 1.3 | 1.3 | 0.9 | 1.25 | 1.7 | 28.2 | 2383 |
| 20 | 0.4 | 1.3 | 1.3 | 0.9 | 1.25 | 1.7 | 29.5 | 2610 |
| 24 | 0.4 | 1.3 | 1.4 | 1.0 | 1.25 | 1.8 | 32.6 | 3087 |
| No. of Pairs | Insulation Thickness (mm) | Bedding Thickness (mm) | Lead Sheath Thickness (mm) | Inner Sheath Thickness (mm) | Diameter of Armor Wire (mm) | Outer Sheath Thickness (mm) | Nominal O.D. (mm) | Weight (kg/km) |
|---|---|---|---|---|---|---|---|---|
| 2 | 0.4 | 0.9 | 1.1 | 0.8 | 0.9 | 1.4 | 18.0 | 970 |
| 4 | 0.4 | 1.1 | 1.1 | 0.8 | 0.9 | 1.5 | 20.2 | 1204 |
| 6 | 0.4 | 1.2 | 1.1 | 0.8 | 0.9 | 1.5 | 22.3 | 1451 |
| 8 | 0.4 | 1.2 | 1.2 | 0.8 | 0.9 | 1.6 | 24.6 | 1848 |
| 10 | 0.4 | 1.2 | 1.2 | 0.9 | 1.25 | 1.6 | 26.9 | 2137 |
| 12 | 0.4 | 1.3 | 1.3 | 0.9 | 1.25 | 1.7 | 28.2 | 2383 |
| 16 | 0.4 | 1.3 | 1.3 | 0.9 | 1.25 | 1.7 | 30.0 | 2690 |
| 20 | 0.4 | 1.3 | 1.4 | 1.0 | 1.25 | 1.8 | 32.1 | 3092 |
| 24 | 0.4 | 1.5 | 1.4 | 1.0 | 1.25 | 1.8 | 35.2 | 3581 |
| No. of Pairs | Insulation Thickness (mm) | Bedding Thickness (mm) | Lead Sheath Thickness (mm) | Inner Sheath Thickness (mm) | Diameter of Armor Wire (mm) | Outer Sheath Thickness (mm) | Nominal O.D. (mm) | Weight (kg/km) |
|---|---|---|---|---|---|---|---|---|
| 2 | 0.4 | 1.1 | 1.1 | 0.8 | 0.9 | 1.4 | 18.4 | 1011 |
| 4 | 0.4 | 1.1 | 1.1 | 0.8 | 0.9 | 1.5 | 20.2 | 1204 |
| 6 | 0.4 | 1.2 | 1.2 | 0.9 | 0.9 | 1.6 | 23.6 | 1691 |
| 8 | 0.4 | 1.2 | 1.2 | 0.9 | 1.25 | 1.6 | 24.6 | 1848 |
| 10 | 0.4 | 1.2 | 1.3 | 0.9 | 1.25 | 1.7 | 27.5 | 2244 |
| 12 | 0.4 | 1.3 | 1.3 | 0.9 | 1.25 | 1.7 | 28.2 | 2383 |
| 16 | 0.4 | 1.3 | 1.4 | 1.0 | 1.25 | 1.7 | 30.2 | 2781 |
| 20 | 0.4 | 1.5 | 1.4 | 1.1 | 1.25 | 1.8 | 32.5 | 3154 |
| 24 | 0.4 | 1.5 | 1.5 | 1.2 | 1.6 | 1.9 | 36.5 | 3982 |
| No. of Pairs | Insulation Thickness (mm) | Bedding Thickness (mm) | Lead Sheath Thickness (mm) | Inner Sheath Thickness (mm) | Diameter of Armor Wire (mm) | Outer Sheath Thickness (mm) | Nominal O.D. (mm) | Weight (kg/km) |
|---|---|---|---|---|---|---|---|---|
| 2 | 0.4 | 1.1 | 1.1 | 0.8 | 0.9 | 1.5 | 19.8 | 1140 |
| 4 | 0.4 | 1.2 | 1.2 | 0.9 | 0.9 | 1.5 | 22.5 | 1588 |
| 6 | 0.4 | 1.2 | 1.2 | 1.0 | 1.25 | 1.6 | 25.1 | 1915 |
| 8 | 0.4 | 1.2 | 1.3 | 1.1 | 1.25 | 1.6 | 26.4 | 2190 |
| 10 | 0.4 | 1.3 | 1.3 | 1.1 | 1.25 | 1.7 | 29.7 | 2606 |
| 12 | 0.4 | 1.3 | 1.4 | 1.1 | 1.25 | 1.7 | 30.5 | 2843 |
| 16 | 0.4 | 1.3 | 1.4 | 1.2 | 1.25 | 1.8 | 32.5 | 3235 |
| 20 | 0.4 | 1.5 | 1.5 | 1.2 | 1.25 | 1.9 | 35.2 | 3797 |
| 24 | 0.4 | 1.5 | 1.5 | 1.2 | 1.6 | 1.9 | 39.5 | 4653 |
| No. of Pairs | Insulation Thickness (mm) | Bedding Thickness (mm) | Lead Sheath Thickness (mm) | Inner Sheath Thickness (mm) | Diameter of Armor Wire (mm) | Outer Sheath Thickness (mm) | Nominal O.D. (mm) | Weight (kg/km) |
|---|---|---|---|---|---|---|---|---|
| 2 | 0.5 | 1.1 | 1.2 | 0.9 | 0.9 | 1.5 | 21.1 | 1303 |
| 4 | 0.5 | 1.2 | 1.2 | 1.0 | 0.9 | 1.5 | 23.7 | 1741 |
| 6 | 0.5 | 1.2 | 1.3 | 1.1 | 1.25 | 1.6 | 26.9 | 2193 |
| 8 | 0.5 | 1.3 | 1.3 | 1.1 | 1.25 | 1.7 | 28.7 | 2481 |
| 10 | 0.5 | 1.3 | 1.4 | 1.2 | 1.25 | 1.7 | 31.9 | 2995 |
| 12 | 0.5 | 1.3 | 1.4 | 1.2 | 1.25 | 1.7 | 32.6 | 3164 |
| 16 | 0.5 | 1.5 | 1.5 | 1.3 | 1.25 | 1.9 | 36.3 | 3863 |
| 20 | 0.5 | 1.5 | 1.6 | 1.3 | 1.6 | 1.9 | 39.2 | 4686 |
| 24 | 0.5 | 1.7 | 1.6 | 1.3 | 1.6 | 2.0 | 43.6 | 5471 |
*The number here is just approx. weight. It changes according to the insulation material and the conductor used in different type of extension cable and compensating cable.
