    Flat Single Pair PFA Insulated

    • Flat Single Pair PFA Insulated Thermocouple Cables

    Application

    These cables are used with thermocouples for temperature measurements.

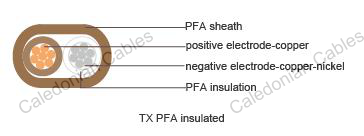

    Construction

    Conductor Solid or stranded. Material is according to thermocouple type.
    Insulation PFA
    Outer sheath PFA or glass braid
    Construction Flat
    Color code According to IEC 60584-3

    K Type

    AWG(mm) Insulation Material Sheath Material Max. Temp. (°C) Nominal O.D. (mm) Weight (kg/km)
    40 (0.08) PFA PFA 260 0.4 x 0.7 3.4
    36 (0.13) PFA PFA 260 0.5 x 0.8 3.6
    30 (0.25) PFA PFA 260 0.6 x 1.0 4.0
    24 (0.51) PFA PFA 260 1.4 x 2.4 10.0
    24 (7/0.2) PFA PFA 260 1.6 x 2.6 10.5
    22 (7/0.25) PFA PFA 260 1.7 x 3.4 13.4
    20 (0.81) PFA PFA 260 1.7 x 3.0 16.7
    20 (7/0.32) PFA PFA 260 1.9 x 3.2 17.1

    E Type

    AWG(mm) Insulation Material Sheath Material Max. Temp. (°C) Nominal O.D. (mm) Weight (kg/km)
    40 (0.08) PFA PFA 260 0.4 x 0.7 3.4
    36 (0.13) PFA PFA 260 0.5 x 0.8 3.6
    30 (0.25) PFA PFA 260 0.6 x 1.0 4.0
    24 (0.51) PFA PFA 260 1.4 x 2.4 10.0
    24 (7/0.2) PFA PFA 260 1.6 x 2.6 10.5
    22 (7/0.25) PFA PFA 260 1.7 x 3.4 13.4
    20 (0.81) PFA PFA 260 1.7 x 3.0 16.7
    20 (7/0.32) PFA PFA 260 1.9 x 3.2 17.1

    J Type

    AWG(mm) Insulation Material Sheath Material Max. Temp. (°C) Nominal O.D. (mm) Weight (kg/km)
    40 (0.08) PFA PFA 260 0.4 x 0.7 3.4
    36 (0.13) PFA PFA 260 0.5 x 0.8 3.6
    30 (0.25) PFA PFA 260 0.6 x 1.0 4.0
    24 (0.51) PFA PFA 260 1.4 x 2.4 10.0
    24 (7/0.2) PFA PFA 260 1.6 x 2.6 10.5
    22 (7/0.25) PFA PFA 260 1.7 x 3.4 13.4
    20 (0.81) PFA PFA 260 1.7 x 3.0 16.7
    20 (7/0.32) PFA PFA 260 1.9 x 3.2 17.1

    T Type

    AWG(mm) Insulation Material Sheath Material Max. Temp. (°C) Nominal O.D. (mm) Weight (kg/km)
    40 (0.08) PFA PFA 150 0.4 x 0.7 3.4
    36 (0.13) PFA PFA 150 0.5 x 0.8 3.6
    30 (0.25) PFA PFA 150 0.6 x 1.0 4.0
    24 (0.51) PFA PFA 260 1.4 x 2.4 10.0
    24 (7/0.2) PFA PFA 260 1.6 x 2.6 10.5
    22 (7/0.25) PFA PFA 260 1.7 x 3.4 13.4
    20 (0.81) PFA PFA 260 1.7 x 3.0 16.7
    20 (7/0.32) PFA PFA 260 1.9 x 3.2 17.1

    N Type

    AWG(mm) Insulation Material Sheath Material Max. Temp. (°C) Nominal O.D. (mm) Weight (kg/km)
    30 (0.25) PFA PFA 260 0.6 x 1.0 1.7
    24 (0.51) PFA PFA 260 1.4 x 2.4 6.7
    20 (0.81) PFA PFA 260 1.7 x 3.0 10.0

    K Type

    AWG(mm) Insulation Material Sheath Material Max. Temp. (°C) Nominal O.D. (mm) Weight (kg/km)
    40 (0.08) PFA Glass Braid 260 0.7 x 0.9 3.4
    36 (0.13) PFA Glass Braid 260 0.7 x 1.0 3.6
    30 (0.25) PFA Glass Braid 260 0.9 x 1.2 4.5
