Application

The cables are designed for use as connection between central offices. The cables are suitable for installation in ducts, direct burial in the ground and also for aerial installation with integral suspension strand. Jelly filled option is for subscriber’s cables installed underground or along the edge of pavement. An armoured option is offered for direct burial installations. A figure-8 self support option is offered for aerial installation.

Standards

• DIN VDE 0816

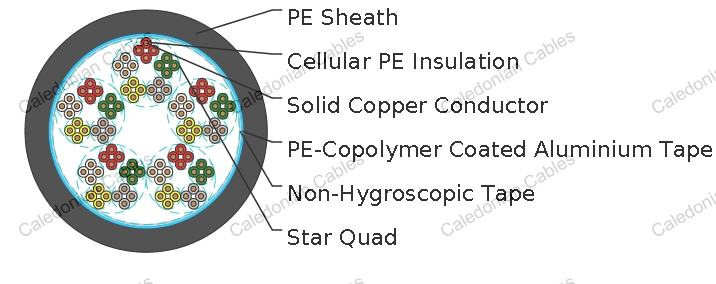

Construction

Conductors

Solid annealed bare copper 0.4/0.6/0.8mm, as per class 1 of DIN VDE 0295/ BS 6360/IEC 60228

Insulation

Cellular polyethylene 2YI2 type as per VDE 0207-2

Twisted Pairs

Insulated conductors are twisted into pairs with varying lay length to minimize crosstalk

Cabling Element

Star Quads

Cable Core Assembly

4 Cores are twisted into star quad. 5 star quads are stranded into a basic unit. 5 or 10 basic units each are stranded into one main unit. The star quads are grouped in units and stranded in layers to form the cable core.Standard make up is per VDE 0816 in the Cable Make Up Diagram

Core Wrapping

One or more non-hygroscopic polyester tapes are helically or longitudinally laid with an overlap. These tapes furnish thermal, mechanical as well as high dielectric protection between shielding and individual conductors

Moisture Barrier

A layer of aluminium tape (0.2mm) coated with PE-copolymer on one or both sides is applied longitudinally with overlap over the cable core to provide 100% electrical shielding coverage and ensures a barrier against water vapor

Sheath

Black low or medium density polyethylene 2YM2 type as per VDE 0207-3, being able to withstand exposure to
sunlight, temperature variations, ground chemicals and other environmental contaminants

Ripcord

Ripcord may be provided for slitting the sheath longitudinally to facilitate its removal

Spare Pairs (optional)

Spare pairs may be provided for large pair cables

Continuity Wire (optional)

Tinned copper drain wire may be longitudinally laid to ensure electrical continuity of the screen

Optional Construction

Jelly Filled Cable

The cable core interstices are filled with petroleum jelly to avoid longitudinal water penetration within the cable. The water resistant filling compound is applied to the air space between non-hygroscopic tape and shield,shield and sheath within the cable core

Armoured Cable

Corrugated steel tape armour is applied over an optional inner polyethylene sheath with an overlap. An outer polyethylene sheath is applied over the armour

Type Code

Electrical Properties

Mechanical and Thermal Properties

Temperature range during operation (fixed state): -30°C – +70°C
Temperature range during installation (mobile state): -20°C – +50°C
Minimum bending radius: 10 x Overall Diameter (unarmoured cables);15 x Overall Diameter (armoured cables)

Colour Code

Quads

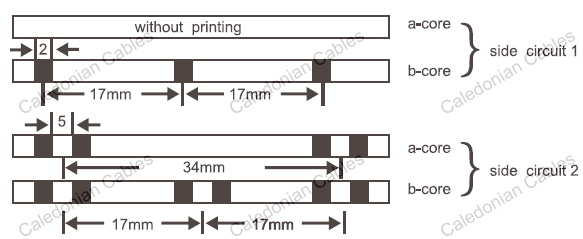

The single core is identified by black ring markings:

Subunits

Basic colours for the wire insulation of the 5 star quads of a basic unit:

The tracer units are coded with a red helix, all other units by a white binder

Dimensions And Weight

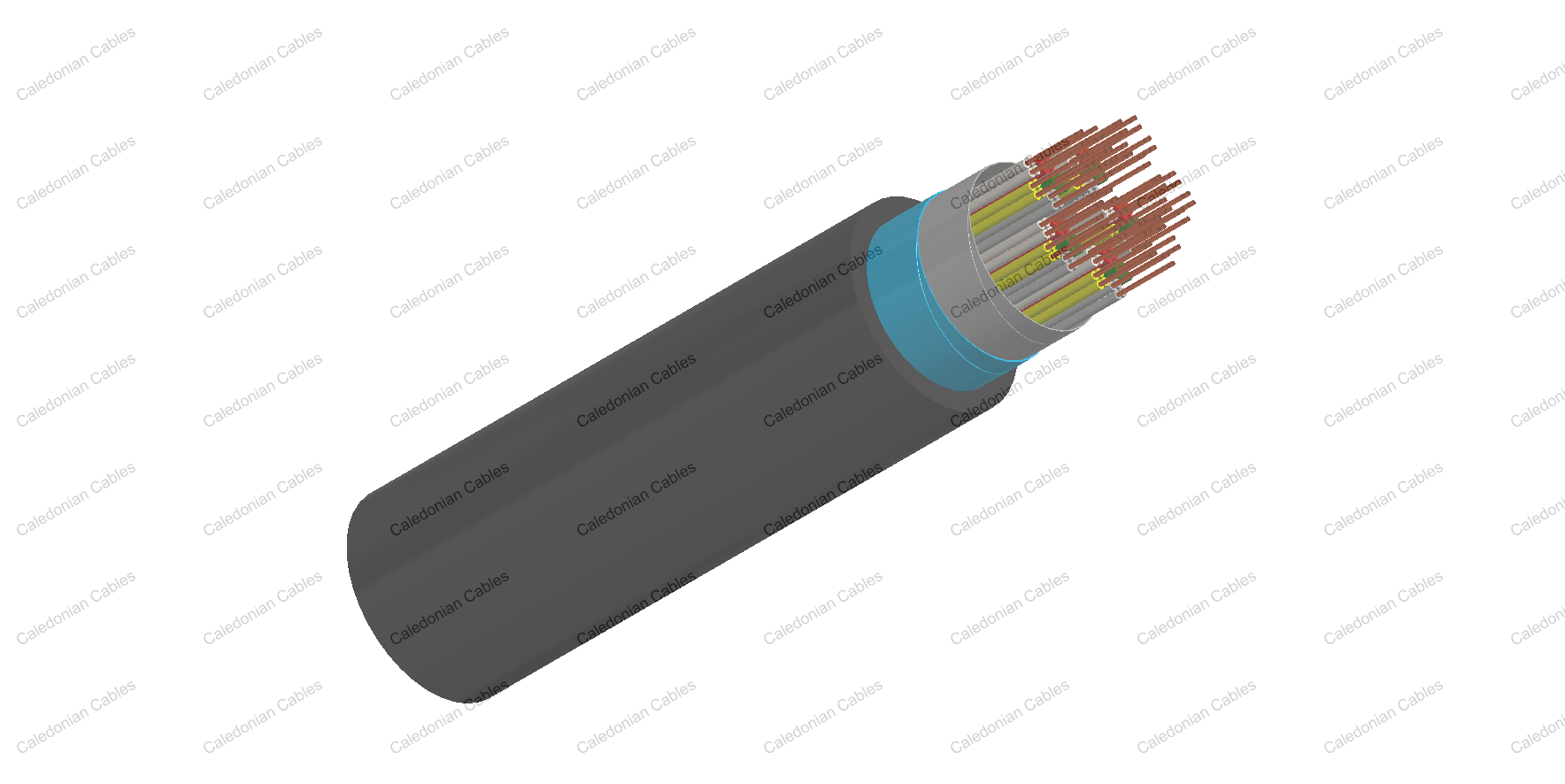

Cellular PE Insulated and LAP Sheathed Air Core Cable VDE CODE: A-02Y(L)2Y …x2x0.4/0.6/0.8 StIII Bd
