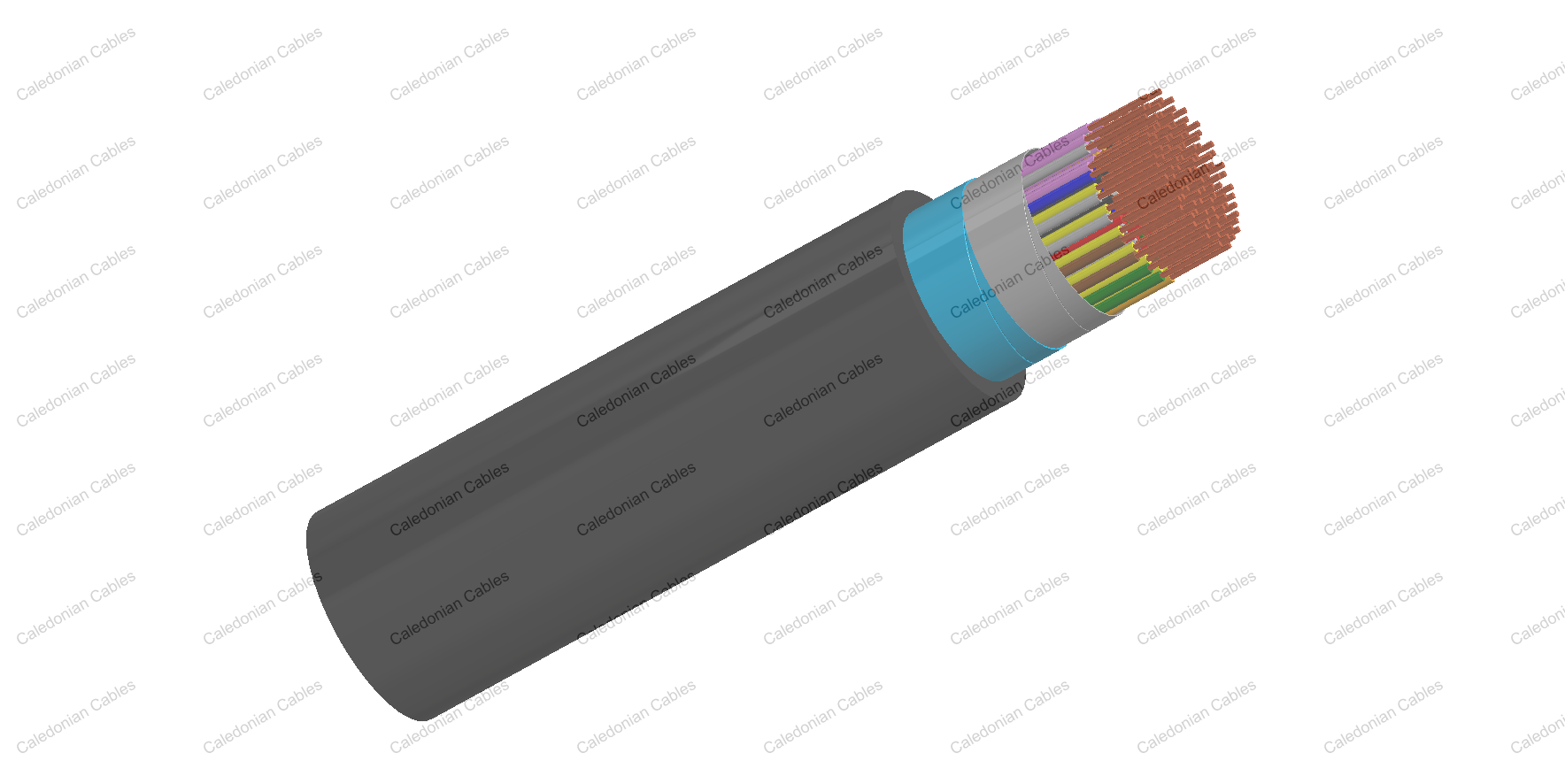

The cables are designed for use as subscriber distribution cables and as connection between central offices. The recommended installation is in ducts
• RUS (REA) PE-39 (RUS 7 CFR 1755.390)
• ICEA S-84-608

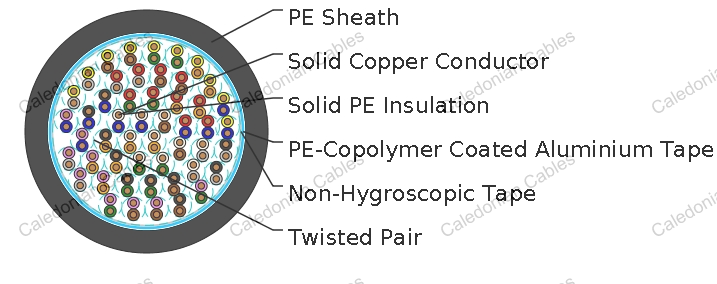

Conductors
Solid annealed bare copper, 0.4/0.5/0.63/0.9mm, as per ASTM B-3/class 1 of IEC 60228
Insulation
Solid medium or high density polyethylene as per ASTM D 1248/IEC 60708
Twisted Pairs
Insulated conductors are twisted into pairs with varying lay length to minimize crosstalk
Cabling Element
Twisted Pairs
Cable Core Assembly
Cables of 25 pairs or less are assembled into cylindrical core. Cables larger than 25 pairs are assembled into units, which are then used to form the core. Units are identified by colour coded binders
Core Wrapping
One or more non-hygroscopic polyester tapes are helically or longitudinally laid with an overlap. These tapes furnish thermal, mechanical as well as high dielectric protection between shielding and individual conductors
Moisture Barrier
A layer of corrugated PE copolymer coated aluminium tape (0.2mm/8mil) is applied longitudinally with overlap over the cable core to provide 100% electrical shielding coverage and ensure a barrier against water vapor
Sheath
Black low or medium density polyethylene as per ASTM D 1248/IEC 60708, being able to withstand exposure to sunlight, temperature variations, ground chemicals and other environmental contaminants
Ripcord
Ripcord may be provided for slitting the sheath longitudinally to facilitate its removal
Spare Pairs (optional)
Spare pairs may be provided for large pair cables
Continuity Wire (optional)
One tinned copper drain wire may be longitudinally laid to ensure electrical continuity of the screen
|
Nominal Conductor Diameter |
mm |
0.4 |
0.5 |
0.63 |
0.9 |
|
Conductor Gauge Size |
AWG |
26 |
24 |
22 |
19 |
|
Maximum Average DC Resistance |
Ω/km / Ω/mile |
140/225 |
87/140 |
55/88.6 |
27.0/43.4 |
|
Maximum Individual DC Resistance |
Ω/km / Ω/mile |
144.2/232 |
89.5/144 |
56.5/91.0 |
28.0/45.0 |
|
Minimum Insulation Resistance @500V DC |
MΩ.km / MΩ.mile |
1600/1000 |
1600/1000 |
1600/1000 |
1600/1000 |
|
Maximum Average Resistance Unbalance |
% |
1.5 |
1.5 |
1.5 |
1.5 |
|
Maximum Individual Resistance Unbalance |
% |
5 |
5 |
5 |
5 |
| Average Mutual Capacitance | nF/km / nF/kft | 48.5-54.0 /14.8-16.5 |
48.5-54.0 /14.8-16.5 |
48.5-54.0 /14.8-16.5 |
48.5-54.0 /14.8-16.5 |
| Maximum Individual Mutual Capacitance | nF/km / nF/kft | 57/17.4 | 57/17.4 | 57/17.4 | 57/17.4 |
| Maximum Individual Capacitance Unbalance pair-to-pair | pF/km / pF/kft | 145/44 | 145/44 | 145/44 | 145/44 |
| Capacitance Unbalance RMS pair-to-pair | pF/km / pF/kft | 45/13.7 | 45/13.7 | 45/13.7 | 45/13.7 |
| Maximum Individual Capacitance Unbalance pair-to-ground | pF/km / pF/kft | 2625/800 | 2625/800 | 2625/800 | 2625/800 |
| Maximum Average Capacitance Unbalance pair-to-ground | pF/km / pF/kft | 574/175 | 574/175 | 574/175 | 574/175 |
| Maximum Conductor Loop Resistance @20°C | Ω/km / Ω/mile | 300/482 | 192/309 | 114/183.6 | 60/96.4 |
| Impedance @1KHz | Ω | 994 | 796 | 660 | 445 |
| Impedance @100KHz | Ω | 147 | 134 | 125 | 122 |
| Impedance @512KHz | Ω | 120 | 118 | 117 | 116 |
| Impedance @1MHz | Ω | 117 | 115 | 114 | 113 |
| Maximum Average Attenuation @0.8KHz | dB/km / dB/kft | 1.64/0.5 | 1.30/0.39 | 1.04/0.32 | 0.74/0.22 |
| Maximum Average Attenuation @1KHz | dB/km / dB/kft | 1.68/0.51 | 1.35/0.41 | 1.08/0.33 | 0.76/0.23 |
| Maximum Average Attenuation @3KHz | dB/km / dB/kft | 3.18/0.97 | 2.52/0.77 | 2.01/0.61 | 1.42/0.43 |
| Maximum Average Attenuation @150KHz | dB/km / dB/kft | 11.4/3.47 | 8.3/2.53 | 6.2/1.89 | 4.4/1.34 |
| Maximum Average Attenuation @772KHz | dB/km / dB/kft | 24.3/7.4 | 19.4/5.9 | 15.4/4.7 | 10.8/3.3 |
| Maximum Average Attenuation @1000KHz | dB/km / dB/kft | 27.1/8.25 | 21.4/6.52 | 17.5/5.33 | 12.8/3.89 |
| Dielectric Strength | |||||
| Conductor to Conductor (3secs) | V DC | 2400 | 3000 | 4000 | 5000 |
| Conductor to Screen (3secs) | V DC | 10000 | 10000 | 10000 | 10000 |
| Minimum EL Far-end Cross-talk-Mean Power Sum | |||||
|
@150KHz |
dB/305m / dB/kft | 61 | 63 | 63 | 65 |
|
@772KHz |
dB/305m / dB/kft | 47 | 49 | 49 | 57 |
|
@1.6MHz |
dB/305m / dB/kft | 41 | 42 | 43 | 44 |
|
@3.15MHz |
dB/305m / dB/kft | 35 | 37 | 37 | 39 |
|
@6.3MHz |
dB/305m / dB/kft | 29 | 31 | 31 | 33 |
| Minimum Far-end Cross-talk-Worst Pair Power Sum | |||||
|
@150KHz |
dB/305m / dB/kft | 57 | 57 | 57 | 59 |
|
@772KHz |
dB/305m / dB/kft | 43 | 43 | 43 | 45 |
|
@1.6MHz |
dB/305m / dB/kft | 37 | 37 | 37 | 39 |
|
@3.15MHz |
dB/305m / dB/kft | 31 | 31 | 31 | 33 |
|
@6.3MHz |
dB/305m / dB/kft | 25 | 25 | 25 | 27 |
| Minimum Near-end Cross-talk-Mean Power Sum | |||||
|
@150KHz |
dB/305m / dB/kft | 58 | 58 | 58 | 58 |
|
@772KHz |
dB/305m / dB/kft | 47 | 47 | 47 | 47 |
|
@1.6MHz |
dB/305m / dB/kft | 43 | 43 | 43 | 43 |
|
@3.15MHz |
dB/305m / dB/kft | 38 | 38 | 38 | 38 |
|
@6.3MHz |
dB/305m / dB/kft | 34 | 34 | 34 | 34 |
| Minimum Near-end Cross-talk-Worst Pair Power Sum | |||||
|
@150KHz |
dB/305m / dB/kft |
53 |
53 |
53 |
53 |
|
@772KHz |
dB/305m / dB/kft |
42 |
42 |
42 |
42 |
|
@1.6MHz |
dB/305m / dB/kft |
38 |
38 |
38 |
38 |
|
@3.15MHz |
dB/305m / dB/kft |
33 |
33 |
33 |
33 |
|
@6.3MHz |
dB/305m / dB/kft |
29 |
29 |
29 |
29 |
|
Nominal Insulation Thickness |
mm |
0.15 |
0.2 |
0.26 |
0.3 |
|
Nominal Insulated Conductor Diameter |
mm |
0.7 |
0.9 |
1.15 |
1.5 |
Temperature range during operation (fixed state): -30°C – +70°C
Temperature range during installation (mobile state): -20°C – +50°C
Minimum bending radius: 10 x Overall Diameter (unarmoured cables);15 x Overall Diameter (armoured cables)
Standard colour code is per ICEA S-84-608 given in Colour Code Chart
Solid PE Insulated & LAP Sheathed Jelly Filled Cables to RUS (REA) PE-39 (ICEA S-84-608)
| Cable Code | Number of Pairs | Nominal Sheath Thickness mm/inch |
Nominal Overall Diameter mm/inch |
Nominal Weight kg/km / lbs/kft |
| 0.4mm Conductor, 0.7mm Insulated Wire | ||||
|
25 |
1.5/0.059 |
14.0/0.551 |
203/136 |
|
|
50 |
1.5/0.059 |
17.1/0.673 |
326/219 |
|
|
75 |
1.5/0.059 |
19.5/0.768 |
446/300 |
|
|
100 |
1.7/0.067 |
22.0/0.866 |
569/382 |
|
|
TP39-2YF(L)2Y-150P04 |
150 |
1.7/0.059 |
25.7/1.012 |
827/556 |
|
TP39-2YF(L)2Y-200P04 |
200 |
1.7/0.067 |
28.7/1.130 |
1023/687 |
|
TP39-2YF(L)2Y-300P04 |
300 |
1.8/0.071 |
33.6/1.323 |
1451/975 |
|
TP39-2YF(L)2Y-400P04 |
400 |
1.9/0.075 |
37.8/1.488 |
1876/1261 |
|
TP39-2YF(L)2Y-600P04 |
600 |
2.0/0.079 |
45.8/1.803 |
2781/1869 |
|
TP39-2YF(L)2Y-900P04 |
900 |
2.1/0.083 |
54.7/2.154 |
4057/2726 |
|
0.5mm Conductor, 0.9mm Insulated Wire |
||||
| TP39-2Y(L)2Y-6P05 | 6 | 1.5/0.059 | 11.3/0.445 |
123/83 |
| TP39-2Y(L)2Y-12P05 | 12 | 1.5/0.059 | 13.3/0.524 |
180/121 |
| TP39-2Y(L)2Y-18P05 | 18 | 1.7/0.067 | 14.9/0.587 |
233/157 |
| TP39-2Y(L)2Y-25P05 | 25 | 1.7/0.067 | 16.3/0.642 |
285/192 |
| TP39-2Y(L)2Y-50P05 | 50 | 1.7/0.067 | 20.4/0.803 |
478/321 |
| TP39-2Y(L)2Y-75P05 | 75 | 1.8/0.071 | 23.8/0.937 |
673/452 |
| TP39-2Y(L)2Y-100P05 | 100 | 2.0/0.079 | 27.0/1.063 |
869/584 |
| TP39-2Y(L)2Y-150P05 | 150 | 2.2/0.087 | 31.6/1.244 |
1273/855 |
| TP39-2Y(L)2Y-200P05 | 200 | 2.4/0.094 | 35.4/1.394 |
1579/1061 |
| TP39-2Y(L)2Y-300P05 | 300 | 2.5/0.098 | 42.5/1.673 |
2307/1550 |
| TP39-2Y(L)2Y-400P05 | 400 | 2.5/0.098 | 48.4/1.906 |
3026/2033 |
| TP39-2Y(L)2Y-600P05 | 600 | 2.5/0.098 | 57.9/2.280 |
4429/2976 |
|
0.63mm Conductor, 1.15mm Insulated Wire |
||||
| TP39-2Y(L)2Y-6P063 | 6 | 1.5/0.059 | 12.6/0.496 |
158/106 |
| TP39-2Y(L)2Y-12P063 | 12 | 1.5/0.059 | 15.1/0.594 |
240/161 |
| TP39-2Y(L)2Y-18P063 | 18 | 1.7/0.067 | 17.0/0.669 |
317/213 |
| TP39-2Y(L)2Y-25P063 | 25 | 1.7/0.067 | 18.9/0.744 |
398/267 |
| TP39-2Y(L)2Y-50P063 | 50 | 1.7/0.067 | 24.3/0.957 |
696/468 |
| TP39-2Y(L)2Y-75P063 | 75 | 1.8/0.071 | 28.2/1.110 |
984/661 |
| TP39-2Y(L)2Y-100P063 | 100 | 1.9/0.075 | 32.2/1.268 |
1278/859 |
| TP39-2Y(L)2Y-150P063 | 150 | 2.1/0.083 | 38.0/1.496 |
1898/1275 |
| TP39-2Y(L)2Y-200P063 | 200 | 2.2/0.087 | 43.4/1.709 |
2405/1616 |
| TP39-2Y(L)2Y-300P063 | 300 | 2.2/0.087 | 52.0/2.047 |
3516/2363 |
| TP39-2Y(L)2Y-400P063 | 400 | 2.2/0.087 | 59.2/2.331 |
4614/3100 |
|
0.9mm Conductor, 1.5mm Insulated Wire |
||||
| TP39-2Y(L)2Y-6P09 | 6 | 1.5/0.059 | 15.3/0.602 |
244/164 |
| TP39-2Y(L)2Y-12P09 | 12 | 1.5/0.059 | 18.9/0.744 |
397/267 |
| TP39-2Y(L)2Y-18P09 | 18 | 1.7/0.067 | 21.7/0.854 |
542/364 |
| TP39-2Y(L)2Y-25P09 | 25 | 1.7/0.067 | 24.7/0.972 |
708/476 |
