J-2Y(St)Y…2X0.6 StIII Bd         J-2Y(St)H…2X0.6 StIII Bd

Application

The installation cables are used for telephone, signaling and data transmission for permanent surface or concealed installation in dry and damp rooms and for outdoor applications.

Standards

• DIN VDE 0816/0815

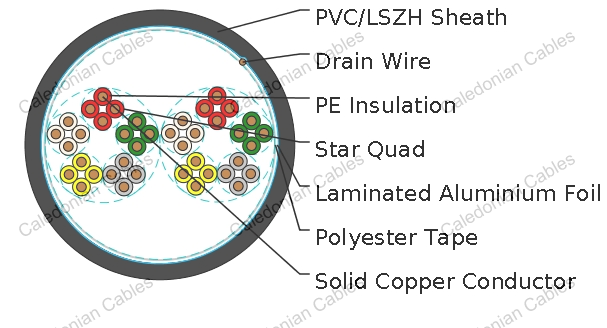

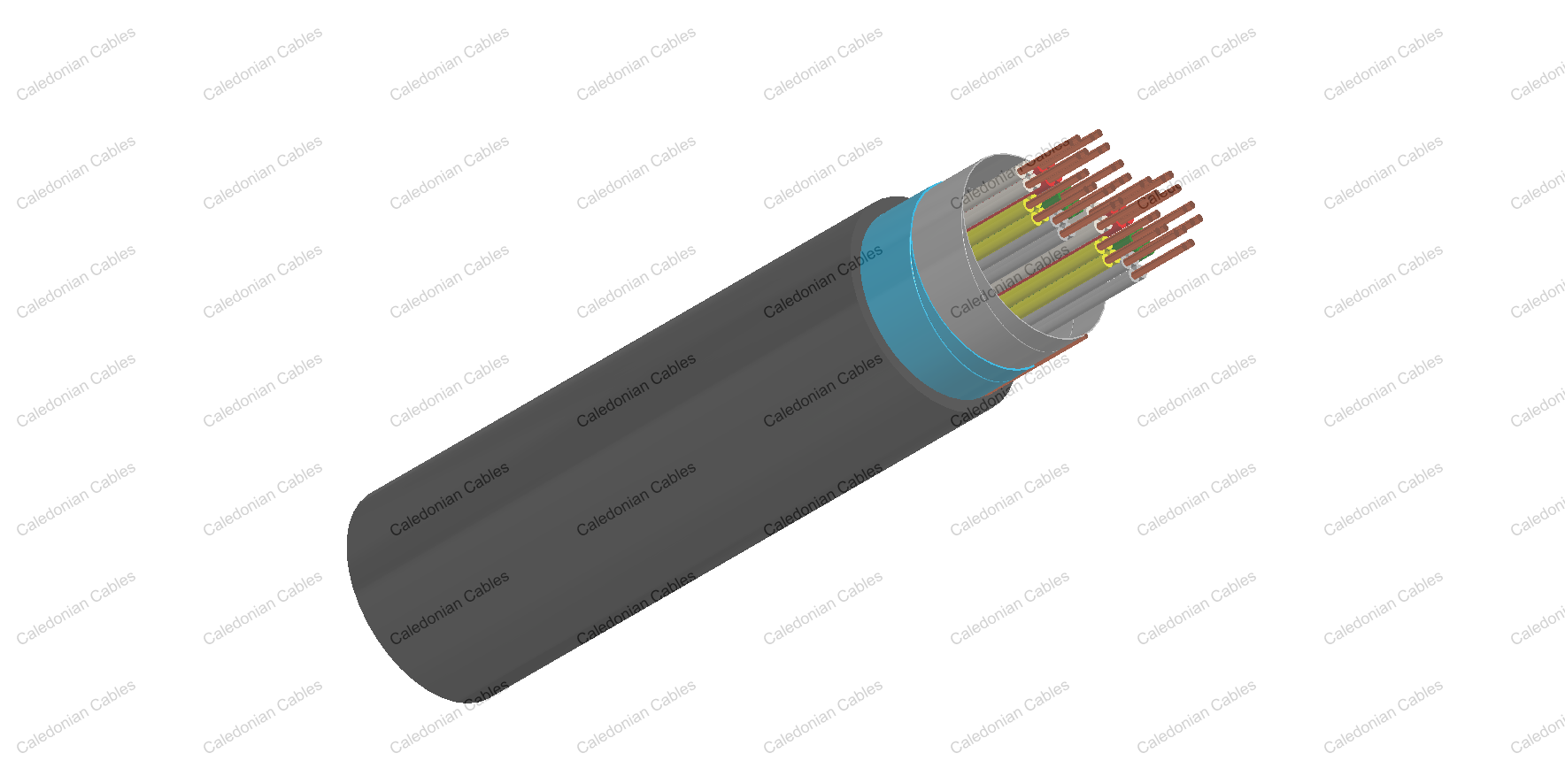

Construction

Conductors

Solid annealed bare copper sized 0.6mm as per VDE 0295/IEC 60228 class 1

Insulation

Solid polyethylene 2YI2 type as per VDE 0207-2

Cabling Element

Star Quads

Cable Core Assembly

Group of four wires is stranded into a star quad, the quads are assembled into units and the units form the core

Core Wrapping

One or more non-hygroscopic polyester tapes are helically or longitudinally laid with an overlap prior to sheathing

Screen

Laminated aluminium foil is fully enclosing the core with an overlap

Sheath

PVC YM1 type to DIN VDE 0207 part 5. LSZH sheath can be offered as option

Ripcord

Nylon ripcord may be placed parallel to the cores to facilitate sheath removal

Drain Wire (optional)

Tinned drain wire may be applied longitudinally to provide continuity of the screen

Type Codes

Electrical Properties

Mechanical and Thermal Properties

Temperature range during operation (fixed state): -30°C – +70°C
Temperature range during installation (mobile state): -20°C – +50°C
Minimum bending radius: 10 x Overall Diameter

Colour Code

Quads
The single core is identified by black ring markings:

Subunits
Basic colours for the wire insulation of the 5 star quads of a basic unit:

The tracer units are coded with a red helix, all other units by a white binder

Dimensions And Weight

VDE CODE: J-2Y(St)Y…x2x 0.6 StIII Bd

VDE CODE: J-2Y(St)H…x2x 0.6 StIII Bd
