    PE Insulated & LSZH Sheathed Cables to CW 1600

    Application

    The cables are similar in design and application to CW 1308, but with Low Smoke Halogen Free cores and sheath. CW 1600 has the added advantage of an Aluminium/Polyester foil screen and drain wire. A fire barrier tape is included on cable with more than 6 pairs. The cables are used for the internal wiring of building when the need to protect people and equipment from smoke and fumes is paramount. The cables are designed to handle low frequency signals for short range applications and intended to be terminated in insulation displacement connectors (IDC).

    Standards

    • CW 1600

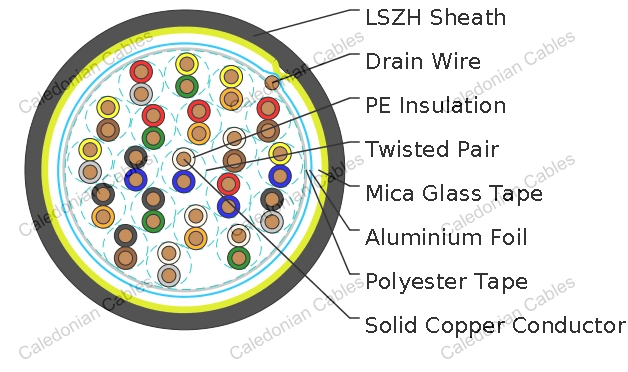

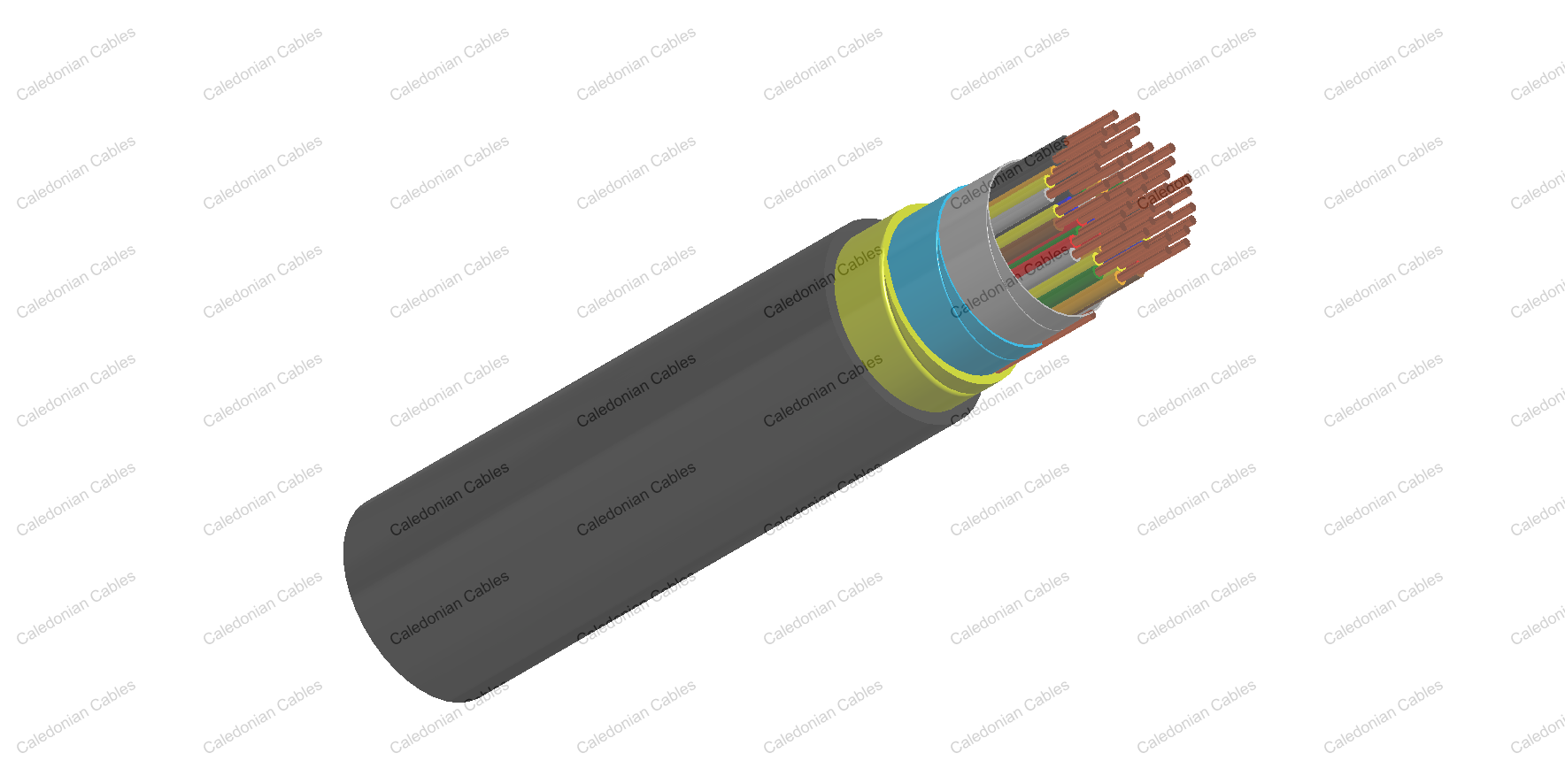

    Construction

    Conductors

    Solid annealed bare or tinned copper sized 0.5mm (24AWG respectively) as per class 1 of BS 6360/IEC 60228.

    Insulation

    Solid polyethylene as per BS 6234/IEC 60708

    Twisted Pairs

    Insulated conductors are twisted into pairs with varying lay length to minimize crosstalk

    Cabling Element

    Twisted Pairs/Triples/Quads

    Cable Core Assembly

    There are two modes of construction: layer for general use, including two cables for installation in customer’s premises where a good appearance is required; and unit of 20 pairs which includes an insulated earth conductor of 1.38mm, for use with customer distribution scheme.

    Core Wrapping

    Cable containing more than 12 wires have a polyester tape applied over the cable core prior to sheathing.

    Screen

    A 24μ aluminium polyester foil shield can be provided for fully enclosing the core with an overlap

    Fire Barrier Tape

    Mica glass tape is included in cable with more than 6 pairs for achieving the required fire properties

    Sheath

    LSZH compound. Grey, White, Cream or Black colours are available for options

    Ripcord

    Nylon ripcord may be placed parallel to the cores to facilitate sheath removal

    Drain Wire

    A solid tinned 0.5mm earth/continuity wire shall be laid longitudinally

    Electrical & Mechanical Properties

    Nominal Conductor Diameter

    mm

    0.5

    1.38

    Conductor Size

    mm2

    0.196

    1.495

    Maximum Conductor Resistance @20°C

    Ω/km

    97.8

    12.4

    Minimum Insulation Resistance @500V DC

    MΩ.km

    50

    N/A

    Maximum Average Mutual Capacitance @0.8KHz-3.0KHz

    nF/km

    80

    N/A

    Maximum Capacitance Unbalance @0.8KHz-3.0KHz pair-to-pair pF/500m 500 N/A

    Minimum Insulation Thickness

    mm

    0.15

    0.55

    Maximum Insulated Conductor Diameter

    mm

    0.95

    3.5

    Mechanical and Thermal Properties

    Temperature range during operation (fixed state): -30°C – +70°C
    Temperature range during installation (mobile state): -20°C – +50°C
    Minimum bending radius: 7.5 x Overall Diameter

    Fire Hazard Performance

    1) Minimum Smoke Emission IEC 61034, EN 50268 ( New: EN 61034), VDE 0482-268 ( New: VDE 0482-1034)
    These standards specify a method to measure the generation of smoke from cables during fire. The result is expressed as percentage of light transmitted. Usually, the smoke density shall not be less than 60%.
    2) Halogen Free  IEC 60754-1, EN 50267-2-1
    These standards specify a method for determination of the amount of halogen acid gas
    evolved during combustion of compound. The hydrochloric acid yield should be less than 0.5%.
    3) Non corrosive gases IEC 60754-2, EN 50267-2-2, VDE 0482-267
    These  standards  specify  a  method  for  determination  of  acidity  of  gas  evolved  during combustion of cables by measuring PH and conductivity. The specimen is deemed to pass this test if the pH value is less than 4.3 when related to 1 litre of water and conductivity is less than 10 μs/min.
    4) Reduced Fire Propagation IEC 60332-3C, EN 50266-2-4, VDE 0482-266-2-4
    These standards specify a method for flame propagation test for bunched cables.
    5) Flame Retardancy IEC 60332-1, VDE 0482-265-2-1
    These standards specify a method for flame propagation test for single core cables.
    6) Temperature Index BS EN ISO 4589-3, BS 2782 Part 1
    These standards specify a method for measuring the temperature Index of materials. The temperature index shall be equal or greater than 280ºC.
    7) Oxygen Index BS EN ISO 4589-2, BS 2863
    These standards specify a test for measuring the minimum oxygen concentration to support candle like combustion of plastics. The oxygen index shall not be less than 30%.

    Color Code

    Colour Scheme for Pairs

    Cabling
    Element
    No.
    a-wire b-wire Cabling
    Element
    No.
    a-wire b-wire
    1 WHITE Blue BLUE 13 BLACK Green GREEN
    2 WHITE Orange ORANGE 14 BLACK Brown BROWN
    3 WHITE

    Green

    GREEN

    15 BLACK Grey GREY
    4 WHITE

    Brown

    BROWN

    16 YELLOW Blue BLUE
    5 WHITE

    Grey

    GREY

    17 YELLOW Orange ORANGE
    6 RED Blue BLUE

    18

    YELLOW

    Green GREEN
    7 RED Orange ORANGE

    19

    YELLOW

    Brown BROWN

    8

    RED

    Green

    GREEN

    20

    YELLOW

    Grey GREY

    9

    RED

    Brown

    BROWN

    21 VIOLET Blue BLUE

    10

    RED

    Grey

    GREY

    22 VIOLET Orange ORANGE
    11 BLACK Blue BLUE 23 VIOLET Green GREEN
    12 BLACK Orange ORANGE 24 VIOLET Brown BROWN
            25 VIOLET Grey GREY

    Note 1: Uppercase letters indicate the base, solid colour of insulation, and the lower case indicates ink bands applied onto the base colour.

    Make Up & Unit Identification Colours – Unit

    Pair Size 20 Pairs 40 Pairs 80 Pairs 100 Pairs 160 Pairs 320 Pairs
    Number of Units
    Centre
    1st Layer
    2nd Layer
    1 4 X ½ 1 1 4 X ½ 1
        6 X ½ 8 X ½ 6 5
              10
    Unit No. Colours of Unit Lappings
    1 ORANGE ORANGE ORANGE ORANGE ORANGE ORANGE

    2

      GREEN

    ORANGE

    ORANGE

    GREEN

    ORANGE

    3



    NATURAL

    NATURAL

    ORANGE

    NATURAL

    4



    GREEN

    NATURAL

    NATURAL

    NATURAL

    5





    GREEN

    NATURAL

    NATURAL

    6







    NATURAL

    GREEN

    7







    NATURAL

    ORANGE

    7







    GREEN

    NATURAL

    9-15









    NATURAL

    16









    GREEN

    Note 1: ½ refers to sub-units of 10 Pairs. Note 2: These cables include the single 1.38mm diameter insulated conductor.

    Dimensions And Weight

    Cable Code Number
    of
    Pairs
    Minimum Insulation
    Thickness
    mm
    Pair Elements
    or Unit Size
    Minimum Sheath
    Thickness
    mm
    Maximum Overall
    Diameter
    mm
    Nominal
    Weight
    kg/km
    0.5mm Conductor, 0.95mm Insulated Wire-Layer

    TP1600-2Y(St)H-2P05

    2

    0.15

    Prs1-2

    0.6

    4.5

    23

    TP1600-2Y(St)H-3P05

    3

    0.15

    Prs1-3

    0.6

    5.0

    35

    TP1600-2Y(St)H-4P05

    4

    0.15

    Prs1-4

    0.6

    5.8

    40

    TP1600 -2Y(St)H-6P05

    6

    0.15

    Prs1-6

    0.6

    6.8

    51

    TP1600-2Y(St)H-12P05

    12

    0.15

    Prs1-12

    0.7

    9.1

    92

    TP1600-2Y(St)H-25P05

    25

    0.15

    Prs1-25

    0.8

    11.4

    167

    0.5mm Conductor, 0.95mm Insulated Wire-Unit

    TP1600-2Y(St)H-(10P+E)05

    10+E

    0.15

    1/2X20

    0.6

    8.6

    102

    TP1600-2Y(St)H-(20P+E)05

    20+E

    0.15

    20

    0.7

    12.0

    157

    TP1600-2Y(St)H-(40P+E)05

    40+E

    0.15

    20

    0.9

    15.0

    271

    TP1600-2Y(St)H-(50P+E)05

    50+E

    0.15

    20

    1.0

    18.0

    341

    TP1600-2Y(St)H-(80P+E)05

    80+E

    0.15

    20

    1.2

    22.5

    496

    TP1600-2Y(St)H-(100P+E)05

    100+E

    0.15

    20

    1.5

    27.0

    633

    TP1600-2Y(St)H-(160P+E)05

    160+E

    0.15

    20

    1.7

    30.3

    960

    TP1600-2Y(St)H-(320P+E)05

    320+E

    0.15

    20

    2.2

    39.5

    1840

    Note: The “E” in the table above indicates that the cable contains an earth-wire.
