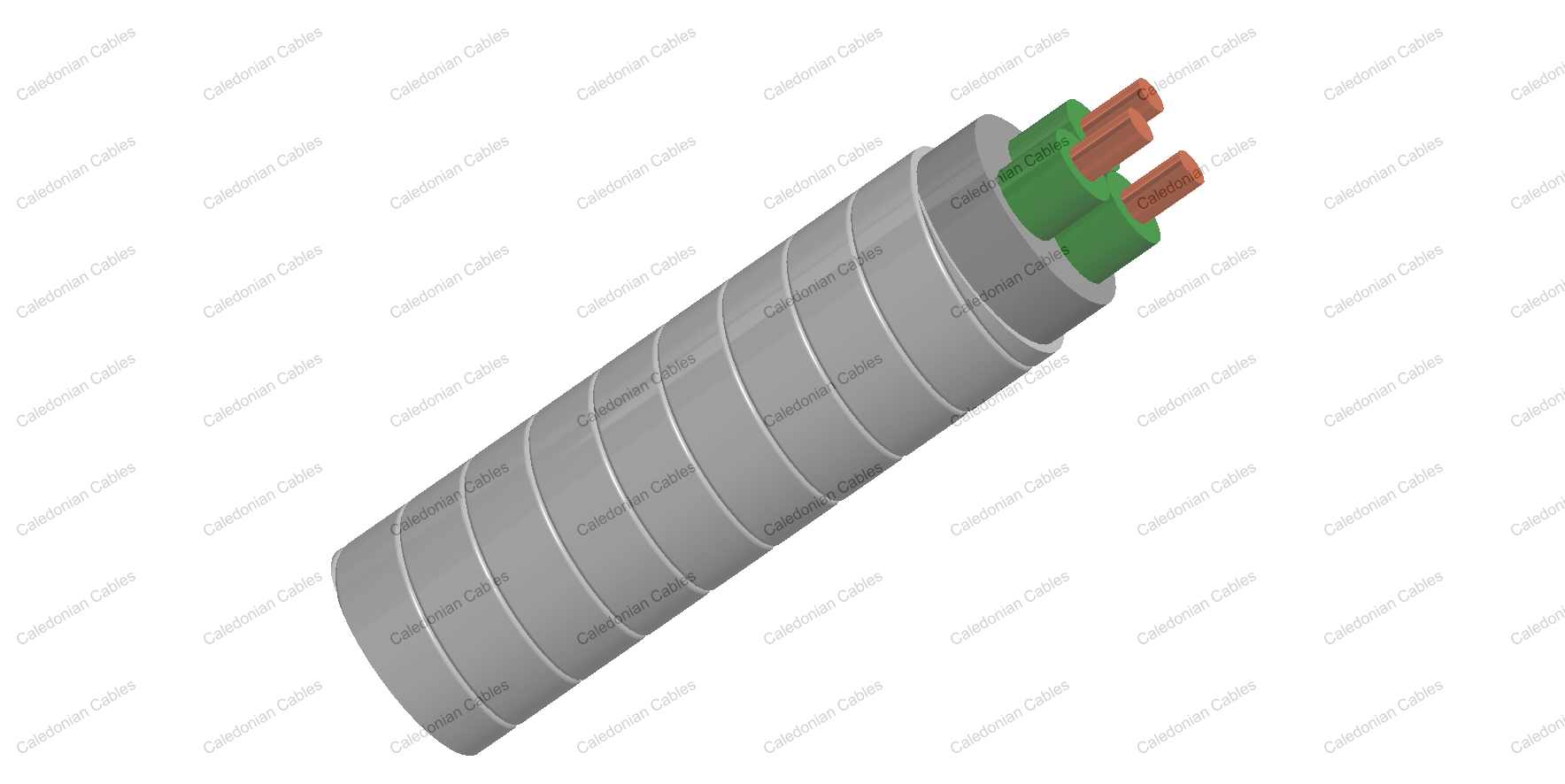

    205℉/96℃ PP/NBR Round Electrical Submersible Pump Cable

    • 205℉/96℃ PP/NBR Round Electrical Submersible Pump Cable
    • 205℉/96℃ PP/NBR Round Electrical Submersible Pump Cable

    Application

    These cables are designed for transmitting power to the submersible motor in the oil industry, suitable for installed down well in the oil industry.

    Standard

    • IEEE Std. 1019
    • API RP 11S5
    • API RP 11S6

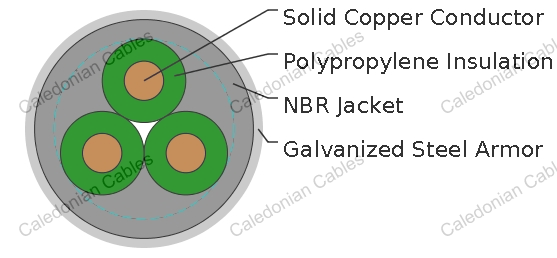

    Construction

    Conductor Solid/stranded copper conductor.
    Insulation Polypropylene insulation.
    Jacket Oil-resistant nitrile rubber.
    Armor Galvanized steel.

    Dimension and Weight

    3kV

    Cable Type Conductor Size Conductor O.D. Insulation Thickness Overall O.D. Weight
      AWG mm^2 inches mm inches mm inches mm lbs/kft kg/km
    QYPNY-96-3kV-3G10S - 10 0.14 3.556 0.075 1.9 1.03 26.1 724 1077
    QYPNY-96-3kV-3G6 6 13.3 0.162 4.115 0.075 1.9 1.09 27.8 832 1238
    QYPNY-96-3kV-3G16S - 16 0.178 4.521 0.075 1.9 1.14 29.0 917 1364
    QYPNY-96-3kV-3G4 4 21.1 0.204 5.182 0.075 1.9 1.22 31.0 1066 1587
    QYPNY-96-3kV-3G25S - 25 0.222 5.639 0.075 1.9 1.27 32.3 1178 1752
    QYPNY-96-3kV-3G2 2 33.6 0.258 6.553 0.075 1.9 1.38 35.1 1420 2114
    QYPNY-96-3kV-3G1 1 42.4 0.289 7.341 0.075 1.9 1.47 37.4 1651 2456
    QYPNY-96-3kV-3G1/0 1/0 53.5 0.368 9.347 0.075 1.9 1.71 43.4 2326 3462
    QYPNY-96-3kV-3G2/0 2/0 67.4 0.414 10.516 0.075 1.9 1.84 46.8 2779 4135

    5kV

    Cable Type Conductor Size Conductor O.D. Insulation Thickness Overall O.D. Weight
      AWG mm^2 inches mm inches mm inches mm lbs/kft kg/km
    QYPNY-96-5kV-3G10S - 10 0.14 3.556 0.09 2.3 1.12 28.5 806 1199
    QYPNY-96-5kV-3G6 6 13.3 0.162 4.115 0.09 2.3 1.19 30.2 917 1365
    QYPNY-96-5kV-3G16S - 16 0.178 4.521 0.09 2.3 1.24 31.4 1005 1495
    QYPNY-96-5kV-3G4 4 21.1 0.204 5.182 0.09 2.3 1.31 33.4 1158 1724
    QYPNY-96-5kV-3G25S - 25 0.222 5.639 0.09 2.3 1.37 34.7 1272 1894
    QYPNY-96-5kV-3G2 2 33.6 0.258 6.553 0.09 2.3 1.47 37.4 1521 2263
    QYPNY-96-5kV-3G1 1 42.4 0.289 7.341 0.09 2.3 1.57 39.8 1756 2613
    QYPNY-96-5kV-3G1/0 1/0 53.5 0.368 9.347 0.09 2.3 1.80 45.7 2444 3637
    QYPNY-96-5kV-3G2/0 2/0 67.4 0.414 10.516 0.09 2.3 1.94 49.2 2903 4321
