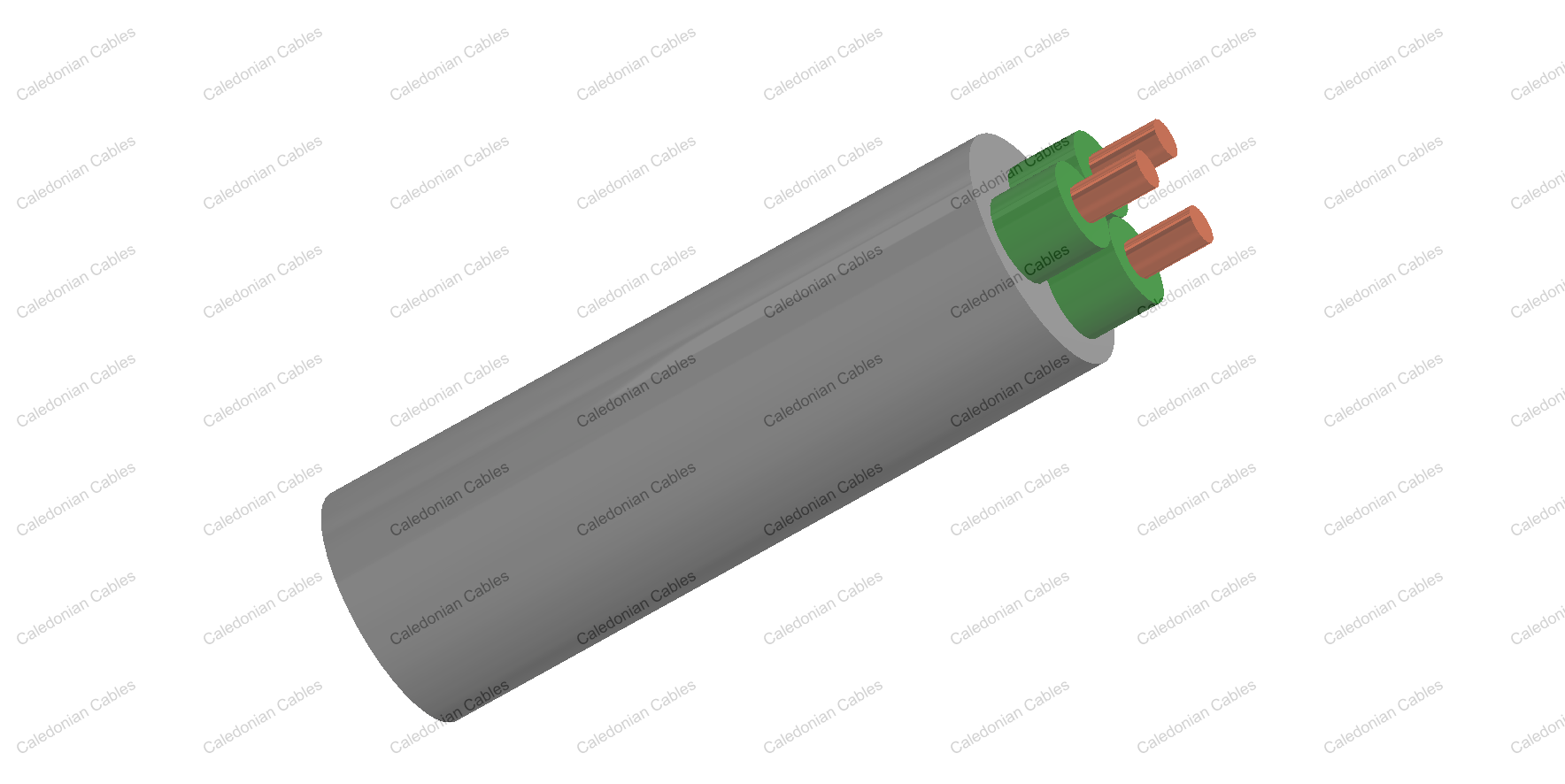

    176℉/80℃ PP/PE Unarmored Round Electrical Submersible Pump Cable

    • 176℉/80℃ PP/PE Unarmored Round Electrical Submersible Pump Cable
    • 176℉/80℃ PP/PE Unarmored Round Electrical Submersible Pump Cable

    Application

    These cables are designed for transmitting power to the submersible motor in the oil industry, suitable for installed down well in the oil industry.

    Standard

    • IEEE Std. 1019
    • API RP 11S5
    • API RP 11S6

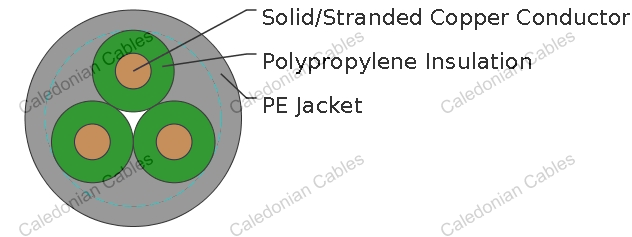

    Construction

    Conductor Solid/stranded copper conductor.
    Insulation Polypropylene insulation.
    Jacket Excellent abrasion resistance PE.

    Dimension and Weight

    3kV

    Cable Type Conductor Size Conductor O.D. Insulation Thickness Overall O.D. Weight
      AWG mm^2 inches mm inches mm inches mm lbs/kft kg/km
    QYPHY(U)-80-3kV-3G10S - 10 0.14 3.556 0.075 1.9 0.98 24.9 518 771
    QYPHY(U)-80-3kV-3G6 6 13.3 0.162 4.115 0.075 1.9 1.04 26.5 613 913
    QYPHY(U)-80-3kV-3G16S - 16 0.178 4.521 0.075 1.9 1.09 27.7 689 1025
    QYPHY(U)-80-3kV-3G4 4 21.1 0.204 5.182 0.075 1.9 1.17 29.7 823 1225
    QYPHY(U)-80-3kV-3G25S - 25 0.222 5.639 0.075 1.9 1.22 31.1 924 1375
    QYPHY(U)-80-3kV-3G2 2 33.6 0.258 6.553 0.075 1.9 1.33 33.8 1146 1705
    QYPHY(U)-80-3kV-3G1 1 42.4 0.289 7.341 0.075 1.9 1.42 36.1 1358 2021
    QYPHY(U)-80-3kV-3G1/0 1/0 53.5 0.368 9.347 0.075 1.9 1.66 42.1 1987 2958
    QYPHY(U)-80-3kV-3G2/0 2/0 67.4 0.414 10.516 0.075 1.9 1.80 45.6 2413 3591

    5kV

    Cable Type Conductor Size Conductor O.D. Insulation Thickness Overall O.D. Weight
      AWG mm^2 inches mm inches mm inches mm lbs/kft kg/km
    QYPHY(U)-80-5kV-3G10S - 10 0.14 3.556 0.09 2.3 1.07 27.2 582 866
    QYPHY(U)-80-5kV-3G6 6 13.3 0.162 4.115 0.09 2.3 1.14 28.9 681 1013
    QYPHY(U)-80-5kV-3G16S - 16 0.178 4.521 0.09 2.3 1.19 30.1 759 1129
    QYPHY(U)-80-5kV-3G4 4 21.1 0.204 5.182 0.09 2.3 1.26 32.1 897 1335
    QYPHY(U)-80-5kV-3G25S - 25 0.222 5.639 0.09 2.3 1.32 33.4 1001 1489
    QYPHY(U)-80-5kV-3G2 2 33.6 0.258 6.553 0.09 2.3 1.42 36.2 1228 1827
    QYPHY(U)-80-5kV-3G1 1 42.4 0.289 7.341 0.09 2.3 1.52 38.5 1445 2150
    QYPHY(U)-80-5kV-3G1/0 1/0 53.5 0.368 9.347 0.09 2.3 1.75 44.5 2087 3105
    QYPHY(U)-80-5kV-3G2/0 2/0 67.4 0.414 10.516 0.09 2.3 1.89 47.9 2520 3749
