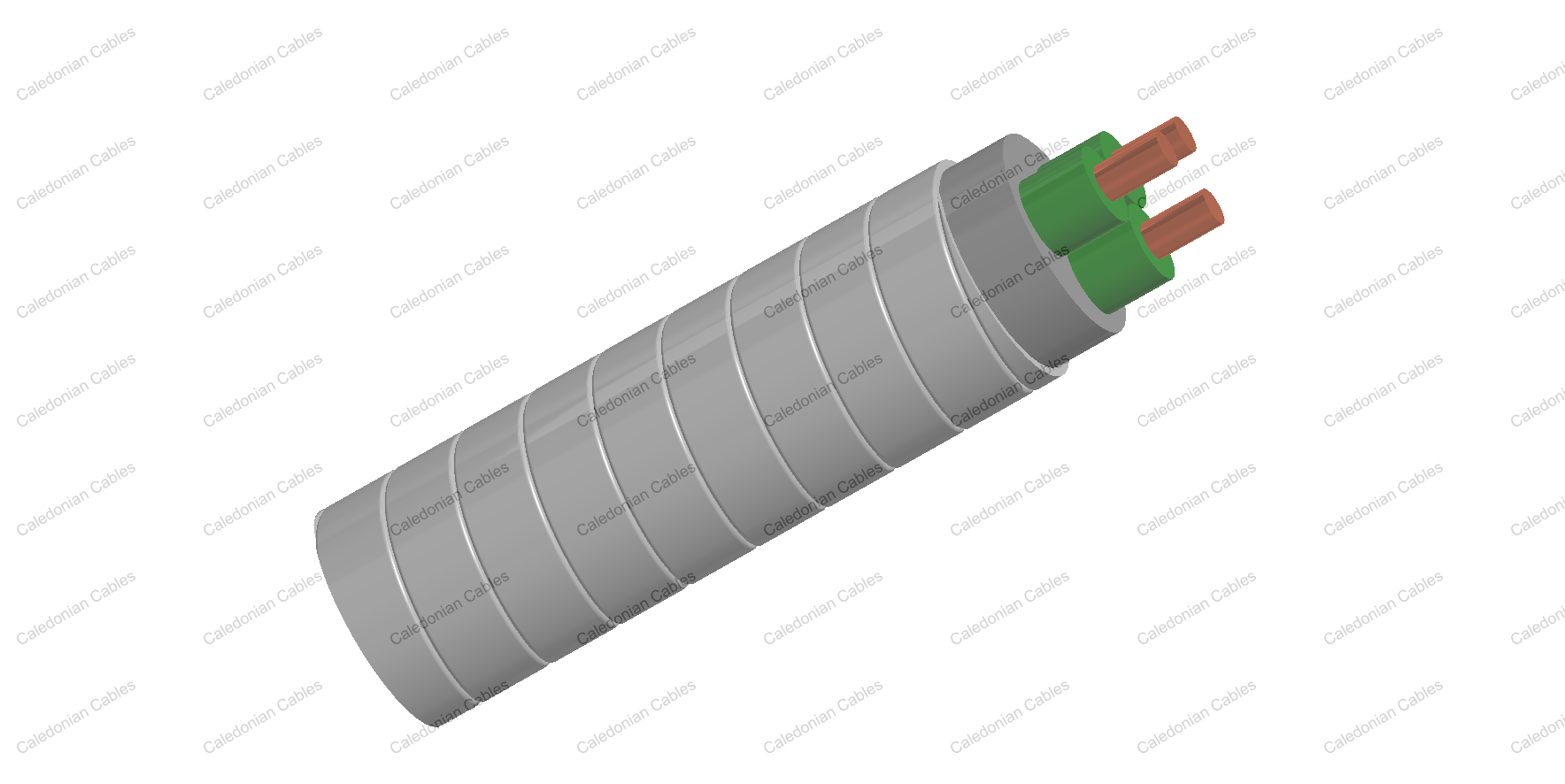

    176℉/80℃ PP/HDPE Round Electrical Submersible Pump Cable

    • 176℉/80℃ PP/HDPE Round Electrical Submersible Pump Cable
    • 176℉/80℃ PP/HDPE Round Electrical Submersible Pump Cable

    Application

    These cables are designed for transmitting power to the submersible motor in the oil industry, suitable for installed down well in the oil industry.

    Standard

    • IEEE Std. 1019
    • API RP 11S5
    • API RP 11S6

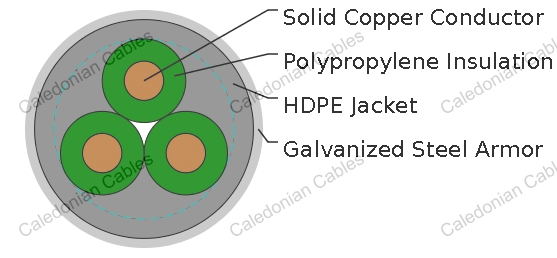

    Construction

    Conductor Solid bare copper conductor with poly adhesive layer.
    Insulation Polypropylene insulation.
    Jacket Integral HDPE jacket.
    Armor Galvanized steel armor.

    Dimension and Weight

    3kV

    Cable Type Conductor Size Conductor O.D. Insulation Thickness Overall O.D. Weight
      AWG mm^2 inches mm inches mm inches mm lbs/kft kg/km
    QYPHY-80-3kV-3G6 6 13.3 0.16 4.1 0.075 1.9 1.1 26.8 860 1280
    QYPHY-80-3kV-3G4 4 21.1 0.20 5.1 0.075 1.9 1.1 29.1 1080 1607
    QYPHY-80-3kV-3G2 2 33.5 0.26 6.6 0.075 1.9 1.3 32.6 1420 2113
    QYPHY-80-3kV-3G1 1 42.4 0.29 7.4 0.075 1.9 1.3 33.8 1640 2440

    4kV

    Cable Type Conductor Size Conductor O.D. Insulation Thickness Overall O.D. Weight
      AWG mm^2 inches mm inches mm inches mm lbs/kft kg/km
    QYPHY-80-4kV-3G6 6 13.3 0.16 4.1 0.08 2.1 1.1 27.7 900 1339
    QYPHY-80-4kV-3G4 4 21.1 0.20 5.1 0.08 2.1 1.2 30.0 1120 1666
    QYPHY-80-4kV-3G2 2 33.5 0.26 6.6 0.08 2.1 1.3 33.5 1460 2172
    QYPHY-80-4kV-3G1 1 42.4 0.29 7.4 0.08 2.1 1.4 34.6 1680 2500

    5kV

    Cable Type Conductor Size Conductor O.D. Insulation Thickness Overall O.D. Weight
      AWG mm^2 inches mm inches mm inches mm lbs/kft kg/km
    QYPHY-80-5kV-3G6 6 13.3 0.16 4.1 0.09 2.3 1.1 28.5 930 1384
    QYPHY-80-5kV-3G4 4 21.1 0.20 5.1 0.09 2.3 1.2 30.9 1160 1726
    QYPHY-80-5kV-3G2 2 33.5 0.26 6.6 0.09 2.3 1.4 34.3 1500 2232
    QYPHY-80-5kV-3G1 1 42.4 0.29 7.4 0.09 2.3 1.4 35.5 1720 2559

    Other conductor size can be offered upon request.
