    400℉/204℃ EPDM/EPDM Round Electrical Submersible Pump Cable

    • 400℉/204℃ EPDM/EPDM Round Electrical Submersible Pump Cable

    Application

    These cables are designed for transmitting power to the submersible motor in the oil industry, suitable for installed down well in the oil industry.

    Standard

    • IEEE Std. 1018
    • API RP 11S5
    • API RP 11S6

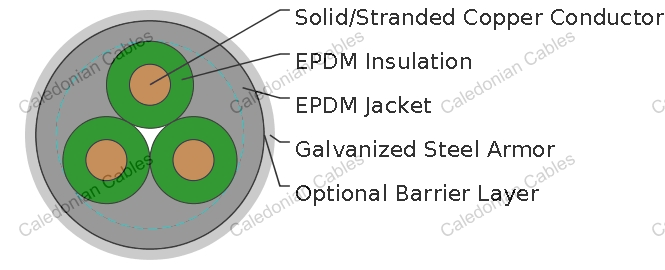

    Construction

    Conductor Solid/stranded copper conductor.
    Insulation EPDM insulation.
    Optional Barrier: Tape, braid, tape and braid, or extruded barrier, used for fluid protection and hoop strength.
    Jacket EPDM rubber.
    Armor Galvanized steel.

    Dimension and Weight

    3kV

    Cable Type Conductor Size Conductor O.D. Insulation Thickness Overall O.D. Weight
      AWG mm^2 inches mm inches mm inches mm lbs/kft kg/km
    QYEEY-204-3kV-3G10S - 10 0.14 3.556 0.075 1.9 1.03 26.1 694 1032
    QYEEY-204-3kV-3G6 6 13.3 0.162 4.115 0.075 1.9 1.09 27.8 798 1187
    QYEEY-204-3kV-3G16S - 16 0.178 4.521 0.075 1.9 1.14 29.0 880 1309
    QYEEY-204-3kV-3G4 4 21.1 0.204 5.182 0.075 1.9 1.22 31.0 1024 1524
    QYEEY-204-3kV-3G25S - 25 0.222 5.639 0.075 1.9 1.27 32.3 1132 1685
    QYEEY-204-3kV-3G2 2 33.6 0.258 6.553 0.075 1.9 1.38 35.1 1368 2036
    QYEEY-204-3kV-3G1 1 42.4 0.289 7.341 0.075 1.9 1.47 37.4 1593 2370
    QYEEY-204-3kV-3G1/0 1/0 53.5 0.368 9.347 0.075 1.9 1.71 43.4 2254 3354
    QYEEY-204-3kV-3G2/0 2/0 67.4 0.414 10.516 0.075 1.9 1.84 46.8 2697 4014

    5kV

    Cable Type Conductor Size Conductor O.D. Insulation Thickness Overall O.D. Weight
      AWG mm^2 inches mm inches mm inches mm lbs/kft kg/km
    QYEEY-204-5kV-3G10S - 10 0.14 3.556 0.09 2.3 1.12 28.5 760 1131
    QYEEY-204-5kV-3G6 6 13.3 0.162 4.115 0.09 2.3 1.19 30.2 867 1290
    QYEEY-204-5kV-3G16S - 16 0.178 4.521 0.09 2.3 1.24 31.4 950 1414
    QYEEY-204-5kV-3G4 4 21.1 0.204 5.182 0.09 2.3 1.31 33.4 1097 1632
    QYEEY-204-5kV-3G25S - 25 0.222 5.639 0.09 2.3 1.37 34.7 1207 1796
    QYEEY-204-5kV-3G2 2 33.6 0.258 6.553 0.09 2.3 1.47 37.4 1446 2152
    QYEEY-204-5kV-3G1 1 42.4 0.289 7.341 0.09 2.3 1.57 39.8 1674 2491
    QYEEY-204-5kV-3G1/0 1/0 53.5 0.368 9.347 0.09 2.3 1.80 45.7 2342 3485
    QYEEY-204-5kV-3G2/0 2/0 67.4 0.414 10.516 0.09 2.3 1.94 49.2 2790 4152
