250℉/121℃ PP/LEAD Flat Electrical Submersible Pump Cable

These cables are designed for transmitting power to the submersible motor in the oil industry, suitable for installed down well in the oil industry.

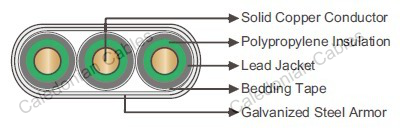

Conductor	Solid bare copper conductor.
Insulation	Polypropylene insulation with a metal deactivator and a poly adhesive layer to the conductor.
Jacket	Lead jacket.
Tape	Longitudinally applied, rubber backed, fabric bedding tap.
Armor	Galvanized steel tape.

Cable Type	Conductor Size		Conductor O.D.		Insulation Thickness		Overall O.D.		Weight
	AWG	mm^2	inches	mm	inches	mm	inches	mm	lbs/kft	kg/km
QYPQ-121-5kV-3G4	4	21.1	0.20	5.2	0.09	2.3	1.60 x 0.62	40.6 x 15.7	1700	2529
QYPQ-121-5kV-3G2	2	33.6	0.26	6.6	0.09	2.3	1.76 x 0.67	44.7 x 17.0	2100	3124
QYPQ-121-5kV-3G1	1	42.4	0.29	7.4	0.09	2.3	1.85 x 0.70	47.0 x 17.8	2400	3571

Other conductor size can be offered upon request.
