PVC/PUR spiral cable

APPLICATION

These PVC/PUR spiral cables are used as till feeder cable and they are ideally suited for use of high quality kitchen and housekeeping utensils, lighting,electrical tools, building industry, handing equipment, entertainment equipment etc. These cables have a high reset power, an excellent appearance and especially a long service life.

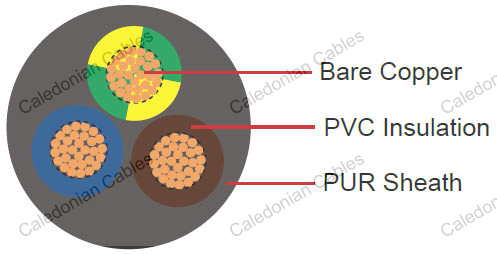

CONSTRUCTION

Conductor	Stranded bare copper conductors according to VDE 0295 class 5
Cores Twisted
Core Insulation	PVC core insulation
Core Color Code	According to VDE 0293 or DIN 47100
Sheath	PUR outer sheath
Sheath Color	Black (Other colors and types are available on request)

CHARACTERISTICS

Temperature Rating	-5°C to +80°C
Voltage Rating	300V/500V (up to 1 mm²)
Voltage Rating	For type H07BQ-F 450/750 V (up to 1.5mm²)
Elasticity Ratio	PVC/PUR black approx 1 : 4
Test Voltage	2000 V, for type H07BQ-F 2500V

DIMENSIONS AND WEIGHT

AWG	Cross-section	Closed Spiral Lenght	Cable Diameter	Outer Diameter	Copper Count Weight
AWG	mm²	mm	mm	mm	kg/km
18	2 x 0.75	500	6.50	23.00	77.80
18	2 x 0.75	1000	6.50	23.00	149.80
18	2 x 0.75	1400	6.50	23.00	207.40
18	2 x 0.75	2000	6.50	23.00	293.80
18	2 x 0.75	3000	6.50	23.00	437.80
18	3 x 0.75	500	7.10	25.20	116.70
18	3 x 0.75	1000	7.10	25.20	224.70
18	3 x 0.75	1400	7.10	25.20	311.10
18	3 x 0.75	2000	7.10	25.20	440.60
18	3 x 0.75	3000	7.10	25.20	656.60
18	4 x 0.75	500	7.90	28.80	156.60
18	4 x 0.75	1000	7.90	28.80	301.60
18	4 x 0.75	1400	7.90	28.80	417.60
18	4 x 0.75	2000	7.90	28.80	591.60
18	4 x 0.75	3000	7.90	28.80	881.60
18	5 x 0.75	500	8.60	31.20	194.40
18	5 x 0.75	1000	8.60	31.20	374.40
18	5 x 0.75	1400	8.60	31.20	518.40
18	5 x 0.75	2000	8.60	31.20	734.40
18	5 x 0.75	3000	8.60	31.20	1094.40
17	2 x 1.00	500	6.80	24.60	103.70
17	2 x 1.00	1000	6.80	24.60	199.70
17	2 x 1.00	1400	6.80	24.60	276.50
17	2 x 1.00	2000	6.80	24.60	391.70
17	2 x 1.00	3000	6.80	24.60	583.70
17	3 x 1.00	500	7.20	26.40	156.60
17	3 x 1.00	1000	7.20	26.40	301.60
17	3 x 1.00	1400	7.20	26.40	417.60
17	3 x 1.00	2000	7.20	26.40	591.60
17	3 x 1.00	3000	7.20	26.40	884.60
17	4 x 1.00	500	7.80	28.60	207.40
17	4 x 1.00	1000	7.80	28.60	399.40
17	4 x 1.00	1400	7.80	28.60	553.00
17	4 x 1.00	2000	7.80	28.60	783.40
17	4 x 1.00	3000	7.80	28.60	1167.40
17	5 x 1.00	500	9.00	32.00	259.20
17	5 x 1.00	1000	9.00	32.00	499.20
17	5 x 1.00	1400	9.00	32.00	691.20
17	5 x 1.00	2000	9.00	32.00	979.20
17	5 x 1.00	3000	9.00	32.00	1459.20
17	7 x 1.00	500	11.10	39.00	361.80
17	7 x 1.00	1000	11.10	39.00	696.80
17	7 x 1.00	1400	11.10	39.00	964.80
17	7 x 1.00	2000	11.10	39.00	1366.80
17	7 x 1.00	3000	11.10	39.00	2036.80
16	2 x 1.50	500	8.50	30.00	156.60
16	2 x 1.50	1000	8.50	30.00	301.60
16	2 x 1.50	1400	8.50	30.00	417.60
16	2 x 1.50	2000	8.50	30.00	591.60
16	2 x 1.50	3000	8.50	30.00	881.60
16	3 x 1.50	500	8.90	32.80	232.20
16	3 x 1.50	1000	8.90	32.80	447.20
16	3 x 1.50	1400	8.90	32.80	619.20
16	3 x 1.50	2000	8.90	32.80	877.20
16	3 x 1.50	3000	8.90	32.80	1307.20
16	5 x 1.50	500	10.90	38.80	388.80
16	5 x 1.50	1000	10.90	38.80	748.80
16	5 x 1.50	1400	10.90	38.80	1036.80
16	5 x 1.50	2000	10.90	38.80	1468.80
16	5 x 1.50	3000	10.90	38.80	2188.80
16	7 x 1.50	500	12.20	46.40	545.40
16	7 x 1.50	1000	12.20	46.40	1050.40
16	7 x 1.50	1400	12.20	46.40	1451.10
16	7 x 1.50	2000	12.20	46.40	2060.40
16	7 x 1.50	3000	12.20	46.40	3070.40
16	3 x 2.50	500	10.60	38.20	388.80
16	3 x 2.50	1000	10.60	38.20	748.80
16	3 x 2.50	1400	10.60	38.20	1036.80
16	3 x 2.50	2000	10.60	38.20	1468.80
16	3 x 2.50	3000	10.60	38.20	2188.80
