Electronic Screened Spiral Cable (TPE-E/PUR)

Applications :

These TPE-E/PUR screened spiral cables are used in lighting industry, machine industry, power tools, construction industry, consumer electronics, mobile equipment etc. these cables are screened against high frequency interference. Suitable for use in the control cable sectors requiring the use of screened semi-conductors.

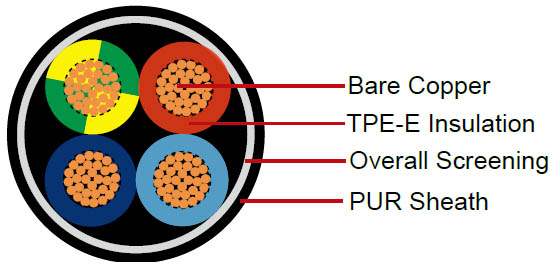

Construction :

Electronic Screened Spiral Cable (TPE-E/PUR) Electronic Screened Spiral Cable (TPE-E/PUR)



Conductor : Stranded bare copper conductors according to DIN VDE 0295 and IEC 60228 cl. 5
Cores Twisted
Overall Screening
Core Insulation : TPE-E core insulation
Core Color Code : According to VDE0293 or DIN 47100
Sheath : PUR outer sheath
Sheath Color : Black (Other colors and types are available on request)

Characteristics :

Temperature Rating : -25°C to +70°C
Voltage Rating : 300V (up to 0.14 mm2)
  500V (up to 0.25 mm2)
Elasticity Ratio : TPE/PUR black approx 1 : 4
Test Voltage : 2000 V

Dimensions and Weight :

AWG Cross-section Closed Spiral Lenght Cable Diameter Outer Diameter Copper Count Weight
  mm2 mm mm mm kg/km
26 2 x 0.14 300 3.80 13.60 30.60
26 2 x 0.14 400 3.80 13.60 39.60
26 2 x 0.14 500 3.80 13.60 48.60
26 2 x 0.14 1000 3.80 13.60 93.60
26 3 x 0.14 300 4.10 15.20 44.20
26 3 x 0.14 400 4.10 15.20 55.80
26 3 x 0.14 500 4.10 15.20 67.50
26 3 x 0.14 1000 4.10 15.20 135.00
26 4 x 0.14 300 4.60 16.20 47.60
26 4 x 0.14 400 4.60 16.20 61.60
26 4 x 0.14 500 4.60 16.20 75.60
26 4 x 0.14 1000 4.60 16.20 145.60
26 5 x 0.14 300 4.60 17.20 54.40
26 5 x 0.14 400 4.60 17.20 70.40
26 5 x 0.14 500 4.60 17.20 86.40
26 5 x 0.14 1000 4.60 17.20 166.40
26 6 x 0.14 300 5.20 19.40 64.60
26 6 x 0.14 400 5.20 19.40 83.60
26 6 x 0.14 500 5.20 19.40 102.60
26 6 x 0.14 1000 5.20 19.40 197.60
26 7 x 0.14 300 5.50 20.00 68.00
26 7 x 0.14 400 5.50 20.00 88.00
26 7 x 0.14 500 5.50 20.00 108.00
26 7 x 0.14 1000 5.50 20.00 208.00
26 8 x 0.14 300 5.60 20.20 74.80
26 8 x 0.14 400 5.60 20.20 96.80
26 8 x 0.14 500 5.60 20.20 118.80
26 8 x 0.14 1000 5.60 20.20 228.80
26 2 x 0.25 300 4.50 16.00 51.00
26 2 x 0.25 400 4.50 16.00 66.00
26 2 x 0.25 500 4.50 16.00 81.00
26 2 x 0.25 1000 4.50 16.00 156.00
26 4 x 0.25 300 5.00 18.00 74.80
26 4 x 0.25 400 5.00 18.00 96.80
26 4 x 0.25 500 5.00 18.00 118.80
26 4 x 0.25 1000 5.00 18.00 228.80
24 5 x 0.25 300 5.40 19.80 85.00
24 5 x 0.25 400 5.40 19.80 110.00
24 5 x 0.25 500 5.40 19.80 135.00
24 5 x 0.25 1000 5.40 19.80 260.00
24 6 x 0.25 300 5.70 20.40 102.00
24 6 x 0.25 400 5.70 20.40 132.00
24 6 x 0.25 500 5.70 20.40 162.00
24 6 x 0.25 1000 5.70 20.40 312.00
24 8 x 0.25 300 6.50 23.00 119.00
24 8 x 0.25 400 6.50 23.00 154.00
24 8 x 0.25 500 6.50 23.00 189.00
24 8 x 0.25 1000 6.50 23.00 364.00
24 12 x 0.25 300 7.10 26.20 170.00
24 12 x 0.25 400 7.10 26.20 220.00
24 12 x 0.25 500 7.10 26.20 270.00
24 12 x 0.25 1000 7.10 26.20 520.00
20 2 x 0.50 300 5.50 20.00 78.20
20 2 x 0.50 400 5.50 20.00 101.20
20 2 x 0.50 500 5.50 20.00 124.20
20 2 x 0.50 1000 5.50 20.00 239.20
20 4 x 0.50 300 5.80 21.60 153.00
20 4 x 0.50 400 5.80 21.60 198.00
20 4 x 0.50 500 5.80 21.60 243.00
20 4 x 0.50 1000 5.80 21.60 648.00
20 6 x 0.50 300 7.00 26.00 231.20
20 6 x 0.50 400 7.00 26.00 299.20
20 6 x 0.50 500 7.00 26.00 367.20
20 6 x 0.50 1000 7.00 26.00 707.20
20 8 x 0.50 300 8.00 29.00 289.00
20 8 x 0.50 400 8.00 29.00 374.00
20 8 x 0.50 500 8.00 29.00 459.00
20 8 x 0.50 1000 8.00 29.00 884.00
20 12 x 0.50 300 8.80 31.60 380.80
20 12 x 0.50 400 8.80 31.60 492.80
20 12 x 0.50 500 8.80 31.60 604.80
20 12 x 0.50 1000 8.80 31.60 1164.80
