PVC/PVC Spiral Cable
Applications :
These PVC spiral cables are used in lighting industry, machine industry, power tools, construction industry, consumer electronics, mobile equipment etc. These cables offers excellent low mechanical and chemical resistance capabilities; middle elastic force; has good low-cost advantage. PVC cables have a high reset power, an excellent appearance and especially a long service life.

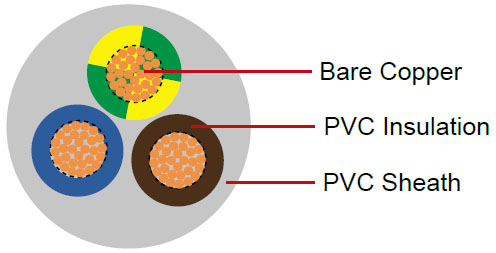

Construction :
| Conductor : |
Bare copper conductors according to DIN VDE 0295 and IEC 60228 class 5 |
| Conductor Sizes : |
0.5mm2 to 1.5mm2, 2 to 5 cores |
| Core Insulation : |
PVC core insulation |
| Core Color Code : |
According to VDE 0293 or DIN 47100 |
| Sheath : |
PVC outer sheath |
| Sheath Color : |
Black, White or Grey |
Characteristics :
| Temperature Rating : |
-5°C to +70°C |
| Voltage Rating : |
H03VVH8-F 300/300V (up to 1 mm2) |
| |
H05VVH8-F 300/500V (from 1.5 mm2) |
| Test Voltage : |
2000 V |
Dimensions and Weight :
| AWG |
Cross-section |
Closed Spiral Lenght |
Cable Diameter |
Outer Diameter |
Copper Count Weight |
| |
mm2 |
mm |
mm |
mm |
kg/km |
| 18 |
2 x 0.75 |
200 |
6.20 |
21.40 |
34.60 |
| 18 |
2 x 0.75 |
400 |
6.20 |
21.40 |
63.40 |
| 18 |
2 x 0.75 |
600 |
6.20 |
21.40 |
92.20 |
| 18 |
2 x 0.75 |
800 |
6.20 |
21.40 |
121.00 |
| 18 |
2 x 0.75 |
1000 |
6.20 |
21.40 |
149.80 |
| 18 |
2 x 0.75 |
1200 |
6.20 |
21.40 |
178.60 |
| 18 |
2 x 0.75 |
1400 |
6.20 |
21.40 |
207.40 |
| 18 |
3 x 0.75 |
200 |
6.60 |
22.20 |
51.90 |
| 18 |
3 x 0.75 |
400 |
6.60 |
22.20 |
95.10 |
| 18 |
3 x 0.75 |
600 |
6.60 |
22.20 |
138.30 |
| 18 |
3 x 0.75 |
800 |
6.60 |
22.20 |
181.50 |
| 18 |
3 x 0.75 |
1000 |
6.60 |
22.20 |
224.70 |
| 18 |
3 x 0.75 |
1200 |
6.60 |
22.20 |
267.80 |
| 18 |
3 x 0.75 |
1400 |
6.60 |
22.20 |
311.10 |
| 17 |
2 x 1.00 |
200 |
6.60 |
22.20 |
43.20 |
| 17 |
2 x 1.00 |
400 |
6.60 |
22.20 |
65.30 |
| 17 |
2 x 1.00 |
600 |
6.60 |
22.20 |
122.80 |
| 17 |
2 x 1.00 |
800 |
6.60 |
22.20 |
161.30 |
| 17 |
2 x 1.00 |
1000 |
6.60 |
22.20 |
199.70 |
| 17 |
2 x 1.00 |
1200 |
6.60 |
22.20 |
238.10 |
| 17 |
2 x 1.00 |
1400 |
6.60 |
22.20 |
276.50 |
| 16 |
2 x 1.50 |
200 |
7.70 |
26.40 |
69.60 |
| 16 |
2 x 1.50 |
400 |
7.70 |
26.40 |
127.00 |
| 16 |
2 x 1.50 |
600 |
7.70 |
26.40 |
185.60 |
| 16 |
2 x 1.50 |
800 |
7.70 |
26.40 |
243.60 |
| 16 |
2 x 1.50 |
1000 |
7.70 |
26.40 |
301.60 |
| 16 |
2 x 1.50 |
1200 |
7.70 |
26.40 |
359.60 |
| 16 |
2 x 1.50 |
1400 |
7.70 |
26.40 |
417.60 |
| 16 |
3 x 1.50 |
200 |
8.50 |
29.00 |
103.20 |
| 16 |
3 x 1.50 |
400 |
8.50 |
29.00 |
189.20 |
| 16 |
3 x 1.50 |
600 |
8.50 |
29.00 |
275.20 |
| 16 |
3 x 1.50 |
800 |
8.50 |
29.00 |
361.20 |
| 16 |
3 x 1.50 |
1000 |
8.50 |
29.00 |
447.20 |
| 16 |
3 x 1.50 |
1200 |
8.50 |
29.00 |
533.20 |
| 16 |
3 x 1.50 |
1400 |
8.50 |
29.00 |
619.20 |
