FIREROL Extra-Flexible Standard Wall Single Core Unsheathed Cable (1500V)

NF F 63-826 (FRF-SW-1.5SU-EF)

Application

These cables are used as power and control cable for protected installations inside and outside of rail and transport vehicles, where handling and installation cost are an important factor, suitable for use in control, auxiliary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.

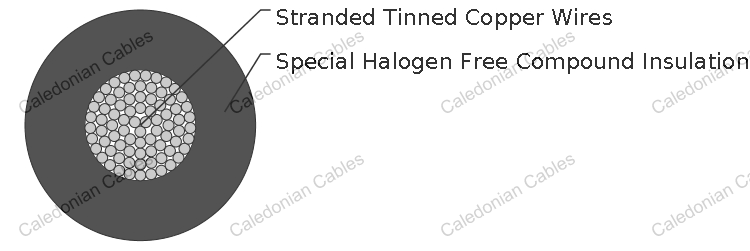

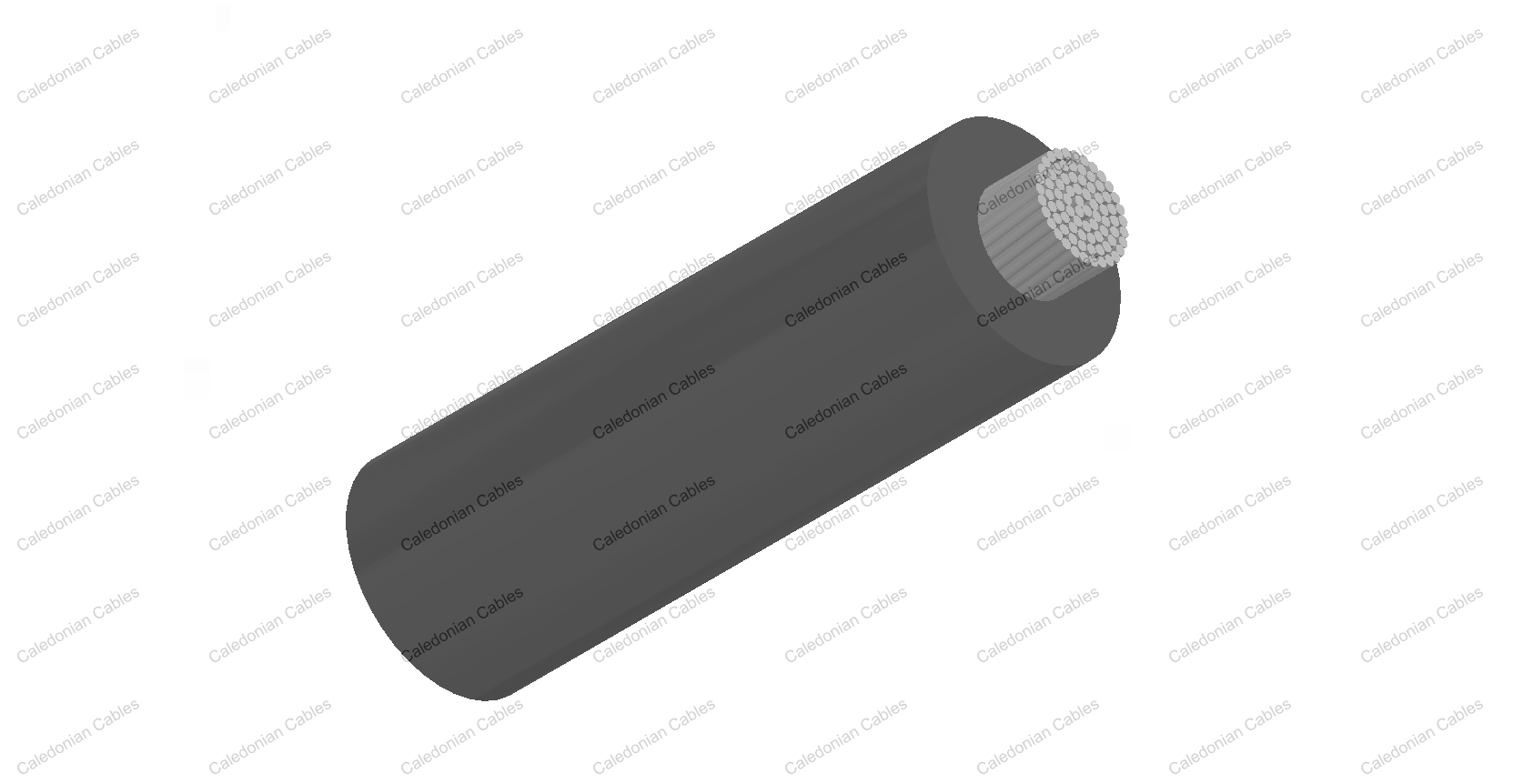

Construction

Conductor	Stranded tinned copper wires to IEC 60228 Class 6
Insulation	Special halogen free compound

Electrical & Mechanical Properties

Nominal Voltage	500V
Max. Conductor Temperature	90°C/105°C
Temperature Range	-25°C~90°C
Bending Radius	3 × Overall Diameter

Fire Performance for Rolling Stock Application

NF F 63-826

NF F 16-101

BS 6853

EN54454-2

Fire Performance in general

EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2)	Vertical flame propogation for a single insulated wire or cable
EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804	Vertical flame spread of vertically mounted bunched wires or cables
EN 50268-2; IEC 61034-2; NF C 32-073 ; NF C 20-902; NF F 16 101; VDE 0472 Teil 816	Low Smoke Emission
EN 50267-2-1; IEC 60754-1; NF C 32-074; NF C 20-454; VDE 0472 Teil 815	Halogen Free
EN 50267-2-2/3; IEC 60754-2; NF C 32-074; NF C 20-453; VDE 0472 Teil 813	Low Corrosivity (Acidity & Conductivity)
EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853	Low Toxicity
NF F 63 808; BS6853; NF F 16 101	Smoke index
EN45545-2	Requirement for fire behavior of materials & components R15/R16

FRF-SW-1.5SU-EF 1500V

Nominal Cross Sectional Area	Number & Nominal Diameter of Strands	Nominal Insulation Thickness	Overall Diameter		Weight
Nominal Cross Sectional Area	Number & Nominal Diameter of Strands	Nominal Insulation Thickness	Min.	Max.	Weight
mm²	No/mm	mm	mm	mm	kg/km
10.0	320/0.20	2.3	8.4	9.5	187
16.0	512/0.20	2.3	9.7	10.8	266
25.0	800/0.20	2.3	11.0	12.2	354
35.0	1120/0.20	2.4	12.4	13.7	440
50.0	705/0.30	2.5	14.2	15.5	613
70.0	990/0.30	2.7	16.1	17.7	875
95.0	1340/0.30	2.7	18.0	19.8	1045
120.0	1690/0.30	2.8	20.0	21.9	1350
150.0	2123/0.30	2.8	21.8	23.8	1650
185.0	1470/0.40	2.9	23.7	25.9	2130
