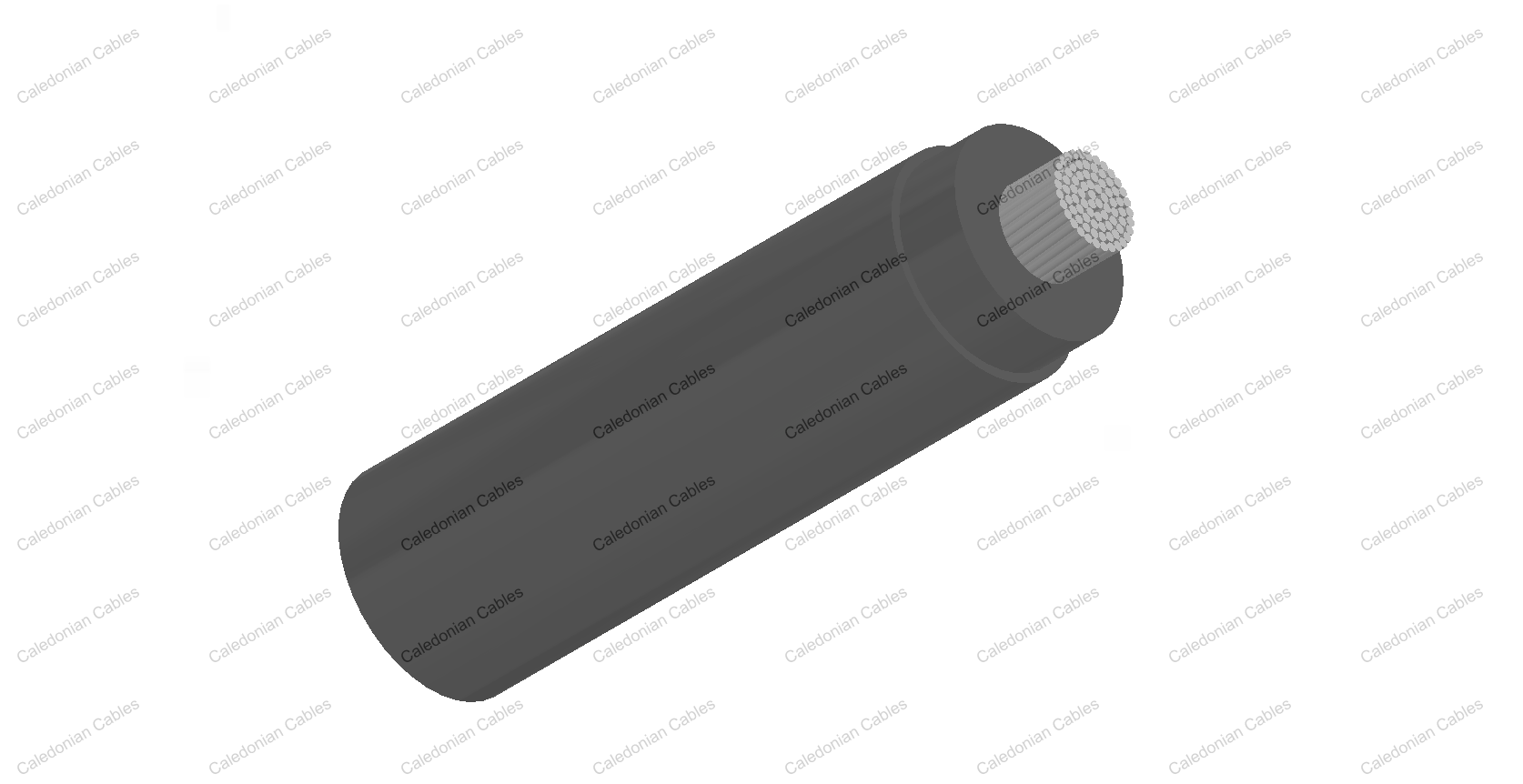

These cables are used as power and control cable for protected installations inside and outside of rail and transport vehicles, where handling and installation cost are an important factor, suitable for used in control, auxiliary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.

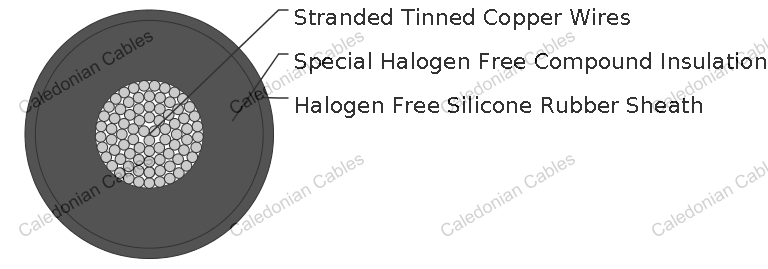

| Conductor | Stranded tinned copper wires to IEC 60228 Class 6 |
| Insulation | Halogen free silicone rubber |
| Reinforcement | Textile braid |
| Sheath | Halogen free silicone rubber |
| Nominal Voltage | 3000V |
| Max. Conductor Temperature | 120°C/140°C |
| Temperature Range | -40°C~+135°C |
| Bending Radius | 3 × Overall Diameter |
NF F 63-827
NF F 16-101
EN45545-2
| EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2) | Vertical flame propogation for a single insulated wire or cable |
| EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804 | Vertical flame spread of vertically mounted bunched wires or cables |
| EN 50268-2; IEC 61034-2; NF C 32-073 ; NF C 20-902; NF F 16 101; VDE 0472 Teil 816 | Low Smoke Emission |
| EN 50267-2-1; IEC 60754-1; NF C 32-074; NF C 20-454; VDE 0472 Teil 815 | Halogen Free |
| EN 50267-2-2/3; IEC 60754-2; NF C 32-074; NF C 20-453; VDE 0472 Teil 813 | Low Corrosivity (Acidity & Conductivity) |
| EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853 | Low Toxicity |
| NF F 63 808; BS6853; NF F 16 101 | Smoke index |
| EN45545-2 | Requirement for fire behavior of materials & components R15/R16 |
| Nominal Cross Sectional Area | Number & Nominal Diameter of Strands | Nominal Insulation Thickness | Overall Diameter | Weight | |
|---|---|---|---|---|---|
| Min. | Max. | ||||
| mm² | No/mm | mm | mm | mm | kg/km |
| 25.0 | 800/0.20 | 2.8 | 12.0 | 13.2 | 390 |
| 35.0 | 1120/0.20 | 2.8 | 13.2 | 14.7 | 500 |
| 50.0 | 705/0.30 | 3.0 | 15.2 | 16.7 | 680 |
| 70.0 | 990/0.30 | 3.2 | 17.1 | 18.8 | 930 |
| 95.0 | 1340/0.30 | 3.2 | 19.0 | 21.0 | 1150 |
| 120.0 | 1690/0.30 | 3.3 | 21.0 | 23.1 | 1470 |
| 150.0 | 2123/0.30 | 3.3 | 22.8 | 25.0 | 1800 |
| 185.0 | 1470/0.40 | 3.4 | 24.7 | 27.1 | 2240 |
| 240.0 | 1905/0.40 | 3.6 | 27.6 | 31.2 | 2820 |
