-Used as power and control cable for protected installations inside and outside of rail and transport vehicles, where handling and installation cost are an important factor.
-Used in control, auxillary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.

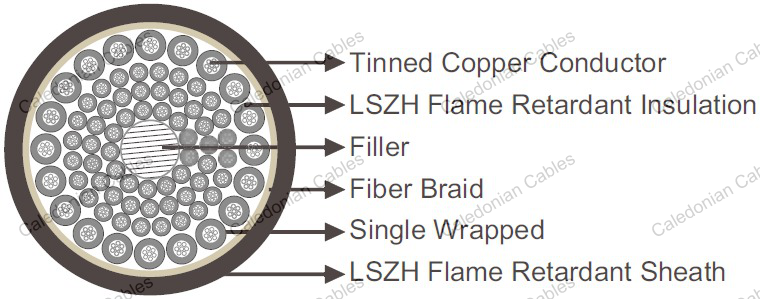

| Conductor | Tinned copper wires |
| Insulation | Low smoke halogen free flame retardant compound |
| Single Wrapped | |
| Filler | |
| Fiber Braid | |
| Sheath | Low smoke halogen free flame retardant compound |
| Nominal Voltage | 750V |
| Long-term Working Temperature | 125°C |
| Lowest Operation Temperature | -25°C |
| Minimum Bending Radius | 6 x Overall Diameter |
| Flame Retardant | GB/T 18380.1-2001; GB/T 18380.3-2001 C |
| Low Corrosivity (Acidity & Conductivity) | GB/T17650.1-1998; GB/T17650.2-1998 |
| Halogen Free | GB/T17650.1-1998; GB/T17650.2-1998 |
| Low Smoke | GB/T17651.1-1998; GB/T17651.2-1998 |
| Number of conductor × Nominal Cross-Sectional Area | Conductor Construction | Nominal Insulation Thickness | Nominal Sheath Thickness | Nominal Overall Diameter | Maximum Conductor Resistance 20°C |
|---|---|---|---|---|---|
| mm² | No/mm | mm | mm | mm | Ω/km |
| 20×3.5+56×1.25 | 20×66/0.26+56×50/0.18 | 1.0/0.8 | 3.3 | 49 | 5.38/15.5 |
