-Used as power and control cable for protected installations inside and outside of rail and transport vehicles, where handling and installation cost are an important factor.
-Used in control, auxillary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.

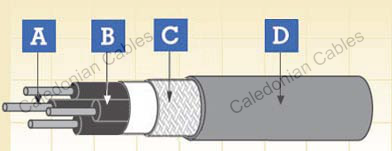

| Conductor | Tinned copper wires |
| Separator (if available) | |
| Insulation | Low smoke halogen free flame retardant compound |
| Filler | |
| Separator | |
| Screen | Tinned copper braid |
| Sheath | Low smoke halogen free flame retardant compound |
| Nominal Voltage | 750V |
| Long-term Working Temperature | 125°C |
| Lowest Operation Temperature | -40°C |
| Minimum Bending Radius | 2 x Overall Diameter (OD≤10mm); 4 x Overall Diameter (10mm≤OD≤20mm); 6 x Overall Diameter (OD≥20mm) |
| Flame Retardant | GB/T18380.1-2001; GB/T18380.3-2001 C |
| Low Corrosivity (Acidity & Conductivity) | GB/T17650.1-1998; GB/T17650.2-1998 |
| Halogen Free | GB/T17650.1-1998; GB/T17650.2-1998 |
| Low Smoke | GB/T17651.1-1998; GB/T17651.2-1998 |
| Number of conductor × Nominal Cross-Sectional Area | Conductor Construction | Overall Diameter | Weight | Maximum Conductor Resistance 20°C |
|---|---|---|---|---|
| mm² | No/mm | mm | kg/km | Ω/km |
| 2×6 | 189/0.20 | 14.9 | 361 | 3.39 |
| 3×6 | 189/0.20 | 15.8 | 452 | 3.39 |
| 4×6 | 189/0.20 | 17.2 | 554 | 3.39 |
| 3×10 | 322/0.20 | 20.3 | 729 | 1.95 |
| 4×10 | 322/0.20 | 22.4 | 912 | 1.95 |
| 2×16 | 513/0.20 | 21.6 | 764 | 1.24 |
| 3×16 | 513/0.20 | 23.1 | 994 | 1.24 |
| 4×16 | 513/0.20 | 25.5 | 1252 | 1.24 |
| 2×25 | 798/0.20 | 25.2 | 1056 | 0.79 |
| 3×25 | 798/0.20 | 26.6 | 1367 | 0.79 |
| 4×25 | 798/0.20 | 29.8 | 1780 | 0.79 |
| 2×35 | 1121/0.20 | 27.8 | 1329 | 0.56 |
| 3×35 | 1121/0.20 | 29.5 | 1768 | 0.56 |
| 4×35 | 1121/0.20 | 32.9 | 2297 | 0.56 |
| 2×50 | 703/0.30 | 32.2 | 1819 | 0.393 |
| 3×50 | 703/0.30 | 34.5 | 2439 | 0.393 |
| 4×50 | 703/0.30 | 38.1 | 3130 | 0.393 |
