    Low Smoke Halogen Free Flame Retardant Multicore Cables (250V, 750V)

    WDZ-DCK-100, WDZ-DCK-125 250V, 750V

    Application

    -Used as power and control cable for protected installations inside and outside of rail and transport vehicles, where handling and installation cost are an important factor.

    -Used in control, auxillary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.

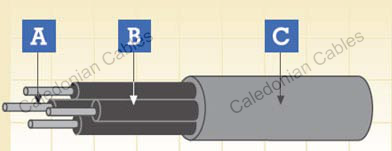

    Construction

    Conductor Tinned copper wires
    Separator (if available)
    Insulation Low smoke halogen free flame retardant compound
    Filler
    Separator
    Sheath Low smoke halogen free flame retardant compound

    Electrical & Mechanical Properties

    Nominal Voltage 250V, 750V
    Long-term Working Temperature 100°C (WDZ-DCK-100); 125°C (WDZ-DCK-125)
    Lowest Operation Temperature -40°C
    Minimum Bending Radius

    2 x Overall Diameter (OD≤10mm);

    4 x Overall Diameter (10mm≤OD≤20mm);

    6 x Overall Diameter (OD≥20mm)

    Fire Performance

    Flame Retardant GB/T18380.1-2001; GB/T18380.3-2001 C
    Low Corrosivity (Acidity & Conductivity) GB/T17650.1-1998; GB/T17650.2-1998
    Halogen Free GB/T17650.1-1998; GB/T17650.2-1998
    Low Smoke GB/T17651.1-1998; GB/T17651.2-1998

    WDZ-DCK-100, WDZ-DCK-125 250V

    Number of conductor × Nominal Cross-Sectional Area Conductor Construction Overall Diameter Weight Maximum Conductor Resistance 20°C
    mm² No/mm mm kg/km Ω/km
    2×0.5 16/0.20 6.6 62 40.1
    3×0.5 16/0.20 7.3 70 40.1
    5×0.5 16/0.20 8.4 96 40.1
    7×0.5 16/0.20 9.0 116 40.1
    11×0.5 16/0.20 11.2 167 40.1
    16×0.5 16/0.20 12.2 215 40.1
    19×0.5 16/0.20 13.2 256 40.1
    20×0.5 16/0.20 13.8 272 40.1
    24×0.5 16/0.20 15.1 313 40.1
    33×0.5 16/0.20 16.5 398 40.1
    37×0.5 16/0.20 17.0 436 40.1
    43×0.5 16/0.20 19.4 487 40.1
    48×0.5 16/0.20 19.7 564 40.1
    2×0.75 24/0.20 7.1 71 26.7
    3×0.75 24/0.20 7.9 83 26.7
    5×0.75 24/0.20 9.0 113 26.7
    7×0.75 24/0.20 9.7 141 26.7
    11×0.75 24/0.20 12.2 206 26.7
    16×0.75 24/0.20 13.8 282 26.7
    19×0.75 24/0.20 14.4 320 26.7
    20×0.75 24/0.20 15.0 342 26.7
    24×0.75 24/0.20 16.6 394 26.7
    33×0.75 24/0.20 18.1 507 26.7
    37×0.75 24/0.20 19.1 574 26.7
    43×0.75 24/0.20 21.3 661 26.7
    48×0.75 24/0.20 21.6 720 26.7
    2×1.0 32/0.20 7.5 80 20.0
    3×1.0 32/0.20 8.2 94 20.0
    5×1.0 32/0.20 9.5 133 20.0
    7×1.0 32/0.20 10.2 164 20.0
    11×1.0 32/0.20 13.3 256 20.0
    16×1.0 32/0.20 14.6 333 20.0
    19×1.0 32/0.20 15.3 381 20.0
    20×1.0 32/0.20 16.0 405 20.0
    24×1.0 32/0.20 17.6 470 20.0
    33×1.0 32/0.20 19.7 629 20.0
    37×1.0 32/0.20 20.4 690 20.0
    43×1.0 32/0.20 22.7 795 20.0
    48×1.0 32/0.20 23.1 868 20.0
    2×1.5 48/0.20 8.1 97 13.7
    3×1.5 48/0.20 8.9 115 13.7
    5×1.5 48/0.20 10.3 167 13.7
    7×1.5 48/0.20 11.1 210 13.7
    11×1.5 48/0.20 14.5 328 13.7
    16×1.5 48/0.20 16.0 436 13.7
    19×1.5 48/0.20 16.8 499 13.7
    20×1.5 48/0.20 17.5 531 13.7
    24×1.5 48/0.20 19.8 638 13.7
    33×1.5 48/0.20 21.6 831 13.7
    37×1.5 48/0.20 22.4 913 13.7
    43×1.5 48/0.20 25.4 1081 13.7
    48×1.5 48/0.20 25.8 1182 13.7
    2×2.5 77/0.20 9.0 126 8.21
    3×2.5 77/0.20 9.9 159 8.21
    5×2.5 77/0.20 11.6 228 8.21
    7×2.5 77/0.20 12.5 291 8.21
    11×2.5 77/0.20 16.5 457 8.21
    16×2.5 77/0.20 18.2 616 8.21
    19×2.5 77/0.20 19.5 709 8.21
    20×2.5 77/0.20 20.4 775 8.21
    24×2.5 77/0.20 22.6 905 8.21
    33×2.5 77/0.20 25.2 1217 8.21
    37×2.5 77/0.20 26.1 1342 8.21
    43×2.5 77/0.20 29.2 1551 8.21
    48×2.5 77/0.20 29.7 1702 8.21
    2×4.0 77/0.26 10.6 179 5.09
    3×4.0 77/0.26 11.6 233 5.09
    5×4.0 77/0.26 14.1 356 5.09
    7×4.0 77/0.26 15.3 459 5.09
    11×4.0 77/0.26 20.2 721 5.09
    16×4.0 77/0.26 22.3 979 5.09
    19×4.0 77/0.26 23.5 1132 5.09
    20×4.0 77/0.26 25.1 1231 5.09
    24×4.0 77/0.26 27.8 1441 5.09
    33×4.0 77/0.26 30.5 1910 5.09
    37×4.0 77/0.26 31.7 2111 5.09
    43×4.0 77/0.26 36.6 2536 5.09
    48×4.0 77/0.26 37.2 2786 5.09

    WDZ-DCK-100, WDZ-DCK-125 750V

    Number of conductor × Nominal Cross-Sectional Area Conductor Construction Overall Diameter Weight Maximum Conductor Resistance 20°C
    mm² No/mm mm kg/km Ω/km
    2×0.5 16/0.20 7.8 78 40.1
    3×0.5 16/0.20 8.6 89 40.1
    5×0.5 16/0.20 10.0 124 40.1
    7×0.5 16/0.20 10.8 151 40.1
    11×0.5 16/0.20 14.1 239 40.1
    16×0.5 16/0.20 15.4 302 40.1
    19×0.5 16/0.20 16.2 340 40.1
    20×0.5 16/0.20 17.0 364 40.1
    24×0.5 16/0.20 19.1 437 40.1
    33×0.5 16/0.20 20.9 557 40.1
    37×0.5 16/0.20 21.6 607 40.1
    43×0.5 16/0.20 24.6 723 40.1
    48×0.5 16/0.20 24.9 783 40.1
    2×0.75 24/0.20 8.3 89 26.7
    3×0.75 24/0.20 9.1 103 26.7
    5×0.75 24/0.20 10.7 145 26.7
    7×0.75 24/0.20 11.5 178 26.7
    11×0.75 24/0.20 15.1 280 26.7
    16×0.75 24/0.20 16.6 362 26.7
    19×0.75 24/0.20 17.4 410 26.7
    20×0.75 24/0.20 18.6 457 26.7
    24×0.75 24/0.20 20.6 526 26.7
    33×0.75 24/0.20 22.5 674 26.7
    37×0.75 24/0.20 23.3 740 26.7
    43×0.75 24/0.20 26.5 878 26.7
    48×0.75 24/0.20 26.9 955 26.7
    2×1.0 32/0.20 8.7 98 20.0
    3×1.0 32/0.20 9.5 115 20.0
    5×1.0 32/0.20 11.1 163 20.0
    7×1.0 32/0.20 12.0 203 20.0
    11×1.0 32/0.20 15.8 319 20.0
    16×1.0 32/0.20 17.4 415 20.0
    19×1.0 32/0.20 18.7 494 20.0
    20×1.0 32/0.20 19.6 527 20.0
    24×1.0 32/0.20 21.6 609 20.0
    33×1.0 32/0.20 24.1 812 20.0
    37×1.0 32/0.20 25.0 889 20.0
    43×1.0 32/0.20 27.9 1024 20.0
    48×1.0 32/0.20 28.4 1116 20.0
    2×1.5 48/0.20 9.3 116 13.7
    3×1.5 48/0.20 10.2 143 13.7
    5×1.5 48/0.20 11.9 200 13.7
    7×1.5 48/0.20 13.3 265 13.7
    11×1.5 48/0.20 17.0 396 13.7
    16×1.5 48/0.20 19.2 544 13.7
    19×1.5 48/0.20 20.2 623 13.7
    20×1.5 48/0.20 21.1 644 13.7
    24×1.5 48/0.20 23.4 769 13.7
    33×1.5 48/0.20 26.0 1030 13.7
    37×1.5 48/0.20 27.0 1131 13.7
    43×1.5 48/0.20 30.2 1305 13.7
    48×1.5 48/0.20 30.7 1427 13.7
    2×2.5 77/0.20 10.2 147 8.21
    3×2.5 77/0.20 11.2 186 8.21
    5×2.5 77/0.20 13.6 278 8.21
    7×2.5 77/0.20 14.7 352 8.21
    11×2.5 77/0.20 19.4 552 8.21
    16×2.5 77/0.20 21.4 736 8.21
    19×2.5 77/0.20 22.5 847 8.21
    20×2.5 77/0.20 24.0 928 8.21
    24×2.5 77/0.20 26.6 1080 8.21
    33×2.5 77/0.20 29.2 1417 8.21
    37×2.5 77/0.20 30.3 1561 8.21
    43×2.5 77/0.20 35.0 1891 8.21
    48×2.5 77/0.20 35.6 2069 8.21
    2×4.0 77/0.26 11.4 193 5.09
    3×4.0 77/0.26 12.5 251 5.09
    5×4.0 77/0.26 15.2 384 5.09
    7×4.0 77/0.26 16.5 496 5.09
    11×4.0 77/0.26 21.9 784 5.09
    16×4.0 77/0.26 24.6 1083 5.09
    19×4.0 77/0.26 25.9 1250 5.09
    20×4.0 77/0.26 27.2 1329 5.09
    24×4.0 77/0.26 30.2 1557 5.09
    33×4.0 77/0.26 33.2 2063 5.09
    37×4.0 77/0.26 35.5 2370 5.09
    43×4.0 77/0.26 39.8 2741 5.09
    48×4.0 77/0.26 40.5 3011 5.09
    2×10 332/0.20 18.4 430 1.95
