-Used as power and control cable for protected installations inside and outside of rail and transport vehicles, where handling and installation cost are an important factor.
-Used in control, auxillary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.

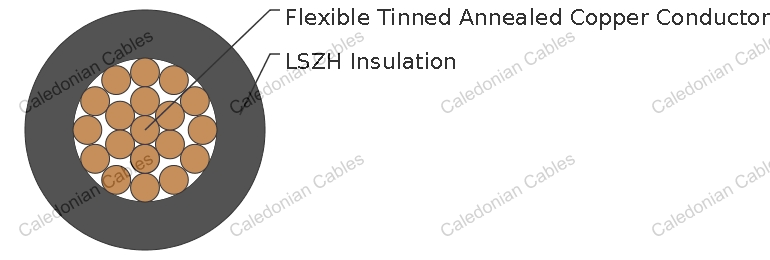

| Conductor | Tinned copper wires |
| Insulation | Electron beam crosslinkable LSZH compound |
| Reinforcement | Textile braid |
| Sheath | Halogen free silicone rubber |
| Nominal Voltage | 750V |
| Short Circuit Temperature (5s) | 250°C |
| Operating Temperature | -60°C/+125°C |
| Minimum Bending Radius | 3 x Overall Diameter (OD≤20mm); 5 x Overall Diameter (OD≥20mm) |
| Flame Retardant | GB/T18380.1-2001 DZ-1 |
| Low Corrosivity (Acidity & Conductivity) | GB/T17650.1-1998; GB/T17650.2-1998 |
| Halogen Free | GB/T17650.1-1998; GB/T17650.2-1998 |
| Low Smoke | GB/T17651.1-1998; GB/T17651.2-1998 |
| Nominal Cross-Sectional Area | Conductor Construction | Nominal Insulation Thickness | Maximum Overall Diameter | Weight | Maximum Conductor Resistance 20°C |
|---|---|---|---|---|---|
| mm² | No/mm | mm | mm | kg/km | Ω/km |
| 0.5 | 19/0.18 | 0.30 | 1.50 | 7.6 | 40.1 |
| 0.75 | 19/0.23 | 0.35 | 1.85 | 12.1 | 26.7 |
| 1.0 | 19/0.26 | 0.35 | 2.00 | 14.5 | 20.0 |
| 1.2 | 19/0.28 | 0.35 | 2.16 | 16.3 | 17.6 |
| 1.5 | 19/0.32 | 0.40 | 2.40 | 21.3 | 13.7 |
| 2.5 | 19/0.41 | 0.45 | 2.95 | 33.6 | 8.21 |
| 4.0 | 19/0.52 | 0.45 | 3.50 | 50.8 | 5.00 |
