-Used as signal and control cable for protected installations inside and outside of rail and transport vehicles, where space and weight are an important factor.
-Used in cable harnesses, switchboards and control panels, driver desks etc.

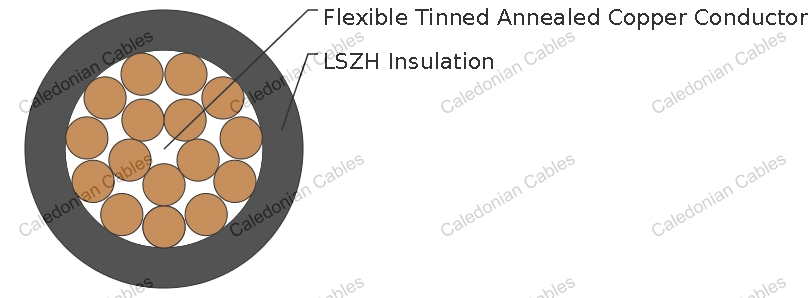

| Conductor | Tinned annealed copper wires as defined in EN 50306-2 |
| Insulation | LSZH special compound |
| Nominal Voltage | 300/500 V |
| Max. Conductor Temperature | 90°C /105°C (fixed installation) |
| Min. Permissible Ambient Temperature | -25°C/-40°C (fixed installation) |
| Bending Radius |
3 x Overall Diameter (fixed installation); 5 x Overall Diameter (flexible installation) |
| EN 60684-2 | No fluorine |
| EN 50305; EN 60811-2-1 | Resistance to mineral oil & fuel oil, acid & alkali |
| EN 50305 | Resistance to ozone |
| EN 50306-2 | Hazard levels HL1, HL2, HL3 |
| DIN 5510-2 | Protection level 1/2/3/4 |
| BS 6853 | Interior use 1a, 1b, II; Exterior use 1a, 1b, II |
| NF F 16-101 | F0 |
| EN54454-2 | R15 Interior/ R16 Exterior HL1, HL2, HL3 |
| EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2) | Vertical flame propogation for a single insulated wire or cable |
| EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804 | Vertical flame spread of vertically mounted bunched wires or cables |
| EN 50268-2; IEC 61034-2; NF C 32-073 ; NF C 20-902; NF F 16 101; VDE 0472 Teil 816 | Low Smoke Emission |
| EN 50267-2-1; IEC 60754-1; NF C 32-074; NF C 20-454; VDE 0472 Teil 815 | Halogen Free |
| EN 50267-2-2/3; IEC 60754-2; NF C 32-074; NF C 20-453; VDE 0472 Teil 813 | Low Corrosivity (Acidity & Conductivity) |
| EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853 | Low Toxicity |
| NF F 63 808; BS6853; NF F 16 101 | Smoke index |
| EN45545-2 | Requirement for fire behavior of materials & components R15/R16 |
| Nominal Cross-Sectional Area | Number x Nominal Diameter of Wire | Diameter | Min. Mean Thickness of Insulation | Overall Diameter | Weight | Conductor Resistance | ||
|---|---|---|---|---|---|---|---|---|
| Min. | Max. | Min. | Max. | 20°C | ||||
| mm² | n x mm | mm | mm | mm | mm | mm | kg/km | Ω/km |
| 0.5 | 19 x 0.18 | 0.80 | 0.95 | 0.18 | 1.15 | 1.45 | 7 | 40.1 |
| 0.75 | 37 x 0.16(a) | 1.00 | 1.15 | 0.18 | 1.35 | 1.65 | 8 | 26.7 |
| 1.0 | 37 x 0.18(a) | 1.10 | 1.30 | 0.18 | 1.45 | 1.80 | 10 | 20.0 |
| 1.5 | 37 x 0.23(a) | 1.45 | 1.65 | 0.22 | 1.95 | 2.30 | 20 | 13.7 |
| 2.5 | 37 x 0.30(a) | 1.85 | 2.15 | 0.28 | 2.50 | 2.85 | 25 | 8.21 |
(a) =This cable may be supplied in 19 strand conductor providing all product performance requirements in the specification are met.
