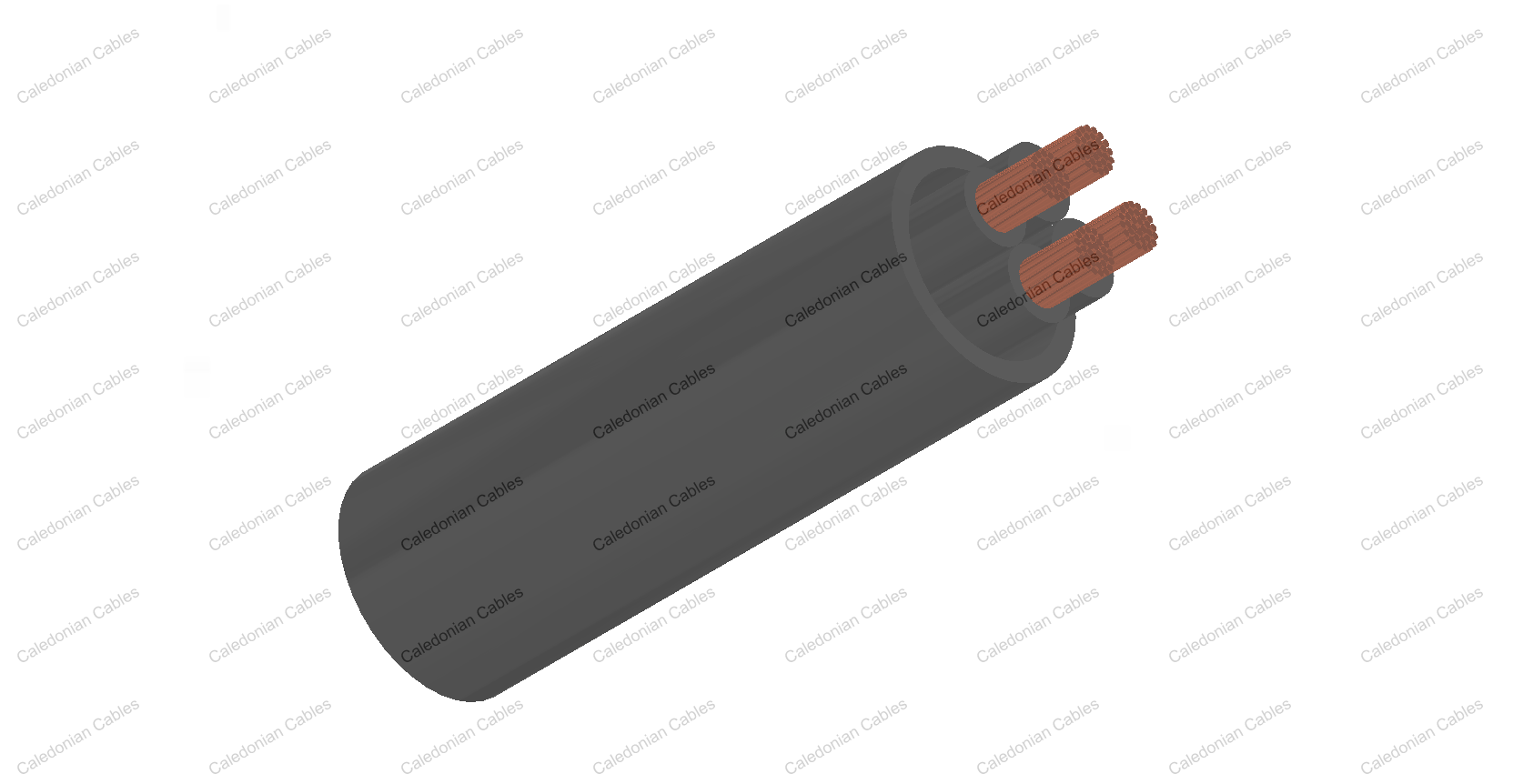

FIREROL Medium Wall Multicore Unscreened Cables 300/500 V or 0.6/1 kV

EN 50264-3-2 (FRL-MW-05M / FRL-MW-1M)

Application

-Used as power and control cable for protected installations inside and outside of rail and transport vehicles, where handling and installation cost are an important factor.

-Used in control,auxillary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.

Construction

Conductor	Flexible tinned annealed copper wires, stranded as per HD 383 (IEC 60228) class 5
Insulation	LSZH elastomeric compound as defined in EN 50264-1 (EM 101 to EI 104)
Outer Sheath	LSZH elastomeric compound as defined in EN 50264-1 (EM 101 to EI 104)

Electrical & Mechanical Properties

Nominal Voltage	300/500 V or 0.6/1 kV
Maximum Conductor Temperature	90°C ( fixed installation )
Minimum Permissible Ambient Temperature	-25°C/-40°C ( fixed installation )
Bending Radius	Fixed installation : 4 x Overall Diameter (D<12mm); 5 x Overall Diameter (D>12mm) Flexible installation : 8 x Overall Diameter (D<12mm); 10 x Overall Diameter (D>12mm)

Chemical & Environmental Propertie

EN 60684-2	No fluorine
EN 50305; EN 60811-2-1	Resistance to mineral oil & fuel oil, acid & alkali
EN 50305	Resistance to ozone

Fire Performance for rolling stock application

EN 50306-2	Hazard levels HL1, HL2, HL3
DIN 5510-2	Protection level 1/2/3/4
BS 6853	Interior use 1a, 1b, II; Exterior use 1a, 1b, II
NF F 16-101	F0
EN 54454-2	R15 Interior/ R16 Exterior HL1, HL2, HL3

Fire Performance in General

EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2)	Vertical flame propogation for a single insulated wire or cable
EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804	Vertical flame spread of vertically mounted bunched wires or cables
EN 50268-2; IEC 61034-2; NF C 32-073; NF C 20-902; NF F 16 101; VDE 0472 Teil 816	Low Smoke Emission
EN 50267-2-1; IEC 60754-1; NF C 32-074; NF C 20-454; VDE 0472 Teil 815	Halogen Free
EN 50267-2-2/3; IEC 60754-2; NF C 32-074;NF C 20-453; VDE 0472 Teil 813	Low Corrosivity (Acidity & Conductivity)
EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853	Low Toxicity
NF F 63 808; BS6853; NF F 16 101	Smoke index
EN50200: 2000	Resistance to fire of unprotected small cable for use in emergency circuits 4 classifications are defined: PH 15,30,60, or 90mins;
IEC60331-21	The circuit integrity test under fire of cables rated 0.6/1.0kV and below
EN45545-2	Requirement for fire behavior of materials & components R15/R16

FRL-MW-05M 300/500 V

Nominal Cross-Sectional Area (a)	Conductor Diameter (b)	Min. Mean Thickness of Insulation	Core Dimensions		Min. Average Sheath Thickness	Overall Diameter		Weight	Max. Conductor Resistance	Min. Insulation Resistance
			Core Dimensions			Overall Diameter			Max. Conductor Resistance	EI 110	EI 106/7/8/9
			Min. Acc.to EN	Max. Acc.to EN		Min.	Max.		20°C	20°C	20°C
n x mm²	mm	mm	mm	mm	mm	mm	mm	kg/km	Ω/km	MΩ x km	MΩ x km
2 x 1	1.25	0.4	2.0	2.4	0.6	5.3	6.2	40	20.0	15.0	7.5
4 x 1	1.25	0.4	2.0	2.4	0.6	6.1	7.2	70	20.0	15.0	7.5
7 x 1	1.25	0.4	2.0	2.4	0.7	7.5	8.7	120	20.0	15.0	7.5
9 x 1	1.25	0.4	2.0	2.4	0.7	9.1	10.6	160	20.0	15.0	7.5
12 x 1	1.25	0.4	2.0	2.4	0.7	9.8	11.5	190	20.0	15.0	7.5
19 x 1	1.25	0.4	2.0	2.4	0.8	11.7	13.7	290	20.0	15.0	7.5
24 x 1	1.25	0.4	2.0	2.4	1.0	14.1	16.5	390	20.0	15.0	7.5
32 x 1	1.25	0.4	2.0	2.4	1.0	15.5	18.2	490	20.0	15.0	7.5
37 x 1	1.25	0.4	2.0	2.4	1.0	16.1	18.9	550	20.0	15.0	7.5
40 x 1	1.25	0.4	2.0	2.4	1.0	16.7	19.6	600	20.0	15.0	7.5

4 x 1.5	1.5	0.5	2.4	2.9	0.7	7.3	8.6	110	13.7	14.0	7.0
7 x 1.5	1.5	0.5	2.4	2.9	0.7	8.7	10.2	170	13.7	14.0	7.0
9 x 1.5	1.5	0.5	2.4	2.9	0.8	10.9	12.7	230	13.7	14.0	7.0
12 x 1.5	1.5	0.5	2.4	2.9	0.8	11.8	13.8	280	13.7	14.0	7.0
19 x 1.5	1.5	0.5	2.4	2.9	1.0	14.2	16.6	440	13.7	14.0	7.0
24 x 1.5	1.5	0.5	2.4	2.9	1.0	16.6	19.5	560	13.7	14.0	7.0
32 x 1.5	1.5	0.5	2.4	2.9	1.2	18.7	21.9	720	13.7	14.0	7.0
37 x 1.5	1.5	0.5	2.4	2.9	1.2	19.5	22.8	820	13.7	14.0	7.0

4 x 2.5	1.95	0.5	2.9	3.4	0.7	8.3	9.8	150	8.21	13.0	6.5
7 x 2.5	1.95	0.5	2.9	3.4	0.8	10.2	11.9	240	8.21	13.0	6.5
9 x 2.5	1.95	0.5	2.9	3.4	1.0	12.9	15.1	350	8.21	13.0	6.5
12 x 2.5	1.95	0.5	2.9	3.4	1.0	13.9	16.3	420	8.21	13.0	6.5
19 x 2.5	1.95	0.5	2.9	3.4	1.0	16.3	19.1	640	8.21	13.0	6.5
24 x 2.5	1.95	0.5	2.9	3.4	1.2	19.6	22.9	840	8.21	13.0	6.5

(a)= One earth conductor (green/yellow) can be included upon request

(b)= For information, indicative only

FRL-MW-1M 0.6/1 kV

Nominal Cross-Sectional Area (a)	Conductor Diameter (b)	Min. Mean Thickness of Insulation	Core Dimensions		Min. Average Sheath Thickness	Overall Diameter		Weight	Max. Conductor Resistance	Min. Insulation Resistance
			Core Dimensions			Overall Diameter			Max. Conductor Resistance	EI 110	EI 106/7/8/9
			Min. Acc.to EN	Max. Acc.to EN		Min.	Max.		20°C	20°C	20°C
n x mm²	mm	mm	mm	mm	mm	mm	mm	kg/km	Ω/km	MΩ x km	MΩ x km
TWO CORES
1.5	1.5	0.7	2.8	3.3	0.70	7.2	9.0	70	13.7	21.0	10.5
2.5	1.95	0.7	3.2	3.8	0.70	8.0	10.0	100	8.21	17.2	8.6
4	2.5	0.7	3.8	4.4	0.70	9.1	11.3	130	5.09	14.2	7.1
6	3.0	0.7	4.2	5.0	0.80	10.1	12.4	170	3.39	12.2	6.1
10	3.9	0.7	5.1	5.9	1.00	12.5	15.4	290	1.95	9.8	4.9
16	5.0	0.7	6.1	7.2	1.00	14.9	18.4	390	1.24	7.9	3.9
25	6.4	0.9	7.8	9.1	1.20	18.7	23.0	590	0.795	7.3	3.6
35	7.7	0.9	9.0	10.6	1.20	21.2	25.9	790	0.565	6.7	3.3
50	9.2	1.0	10.6	12.4	1.40	25.1	30.7	1140	0.393	6.3	3.1
THREE CORES
1.5	1.5	0.7	2.8	3.3	0.70	7.7	9.5	100	13.7	21.0	10.5
2.5	1.95	0.7	3.2	3.8	0.70	8.5	10.5	130	8.21	17.2	8.6
4	2.5	0.7	3.8	4.4	0.70	9.7	12.0	180	5.09	14.2	7.1
6	3.0	0.7	4.2	5.0	0.80	10.7	13.2	250	3.39	12.2	6.1
10	3.9	0.7	5.1	5.9	1.00	13.3	16.5	410	1.95	9.8	4.9
16	5.0	0.7	6.1	7.2	1.00	16.0	19.6	570	1.24	7.9	3.9
25	6.4	0.9	7.8	9.1	1.20	20.0	24.7	850	0.795	7.3	3.6
35	7.7	0.9	9.0	10.6	1.40	23.0	28.2	1160	0.565	6.7	3.3
50	9.2	1.0	10.6	12.4	1.60	26.3	32.2	1680	0.393	6.3	3.1
FOUR CORES
1.5	1.5	0.7	2.8	3.3	0.70	8.5	10.5	120	13.7	21.0	10.5
2.5	1.95	0.7	3.2	3.8	0.70	9.4	11.6	170	8.21	17.2	8.6
4	2.5	0.7	3.8	4.4	0.80	10.9	13.4	240	5.09	14.2	7.1
6	3.0	0.7	4.2	5.0	1.00	12.2	14.9	330	3.39	12.2	6.1
10	3.9	0.7	5.1	5.9	1.00	14.7	18.2	540	1.95	9.8	4.9
16	5.0	0.7	6.1	7.2	1.20	18.0	22.1	750	1.24	7.9	3.9
25	6.4	0.9	7.8	9.1	1.40	22.6	27.6	1140	0.795	7.3	3.6
3 x 35+25	7.7/6.4	0.9/0.9	9.0/7.8	10.6/9.1	1.40	25.7	31.2	1490	0.565/0.795	6.7	3.3
3 x 50+25	9.2/6.4	1.0/0.9	10.6/7.8	12.4/9.1	1.60	30.0	36.5	2110	0.393/1.795	6.3	3.1

(a)= One earth conductor (green/yellow) can be included upon request

(b)= For information, indicative only
