FIREROL Medium Wall Multicore Overall Screened Cables 300/500 V or 0.6/1 kV

EN50264-3-2 (FRL-MW-05M-OS/FRL-MW-1M-OS)

Application

-Used as power and control cable for protected installations inside and outside of rail and transport vehicles, where handling and installation cost are an important factor.

-Used in control,auxillary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.

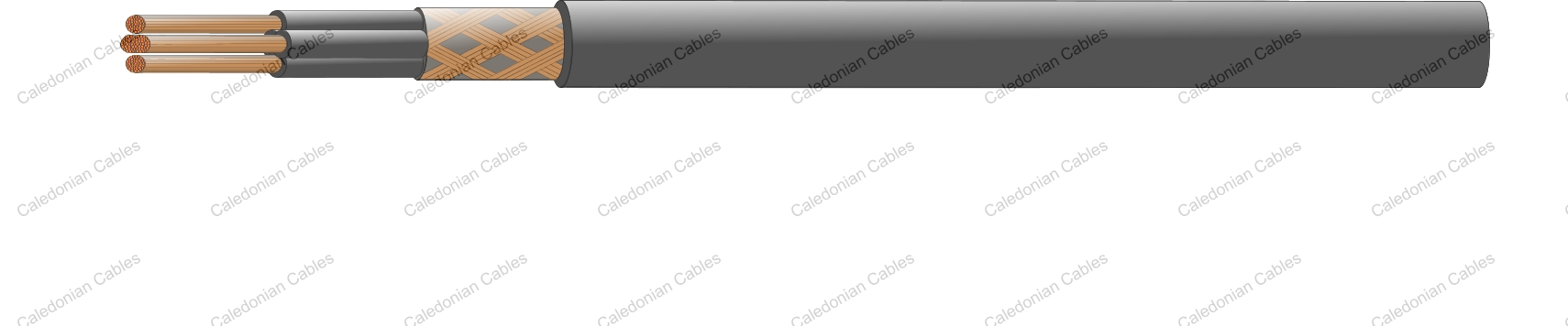

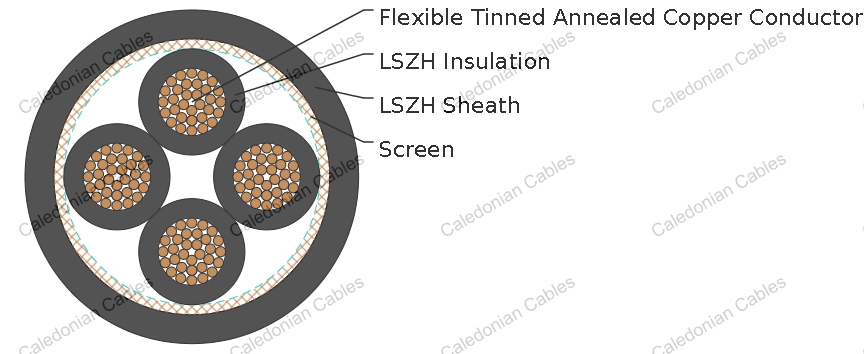

Construction

Conductor	Flexible tinned annealed copper wires, stranded as per HD 383 (IEC 60228) class 5
Insulation	LSZH elastomeric compound as defined in EN 50264-1 (EI 106 to EI 110)
Overal Screen	Tinned annealed copper wires
Outer Sheath	LSZH elastomeric compound as defined in EN 50264-1 (EM 101 to EI 104)

Electrical & Mechanical Properties

Nominal Voltage	300/500 V or 0.6/1 kV
Maximum Conductor Temperature	90°C ( fixed installation )
Minimum Permissible Ambient Temperature	-25°C/-40°C ( fixed installation )
Bending Radius	Fixed installation : 4 x Overall Diameter (D<12mm); 5 x Overall Diameter (D>12mm) Flexible installation : 8 x Overall Diameter (D<12mm); 10 x Overall Diameter (D>12mm)

Chemical & Environmental Propertie

EN 60684-2	No fluorine
EN 50305; EN 60811-2-1	Resistance to mineral oil & fuel oil, acid & alkali
EN 50305	Resistance to ozone

Fire Performance for rolling stock application

EN 50306-2	Hazard levels HL1, HL2, HL3
DIN 5510-2	Protection level 1/2/3/4
BS 6853	Interior use 1a, 1b, II; Exterior use 1a, 1b, II
NF F 16-101	F0
EN 54454-2	R15 Interior/ R16 Exterior HL1, HL2, HL3

Fire Performance in General

EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2)	Vertical flame propogation for a single insulated wire or cable
EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804	Vertical flame spread of vertically mounted bunched wires or cables
EN 50268-2; IEC 61034-2; NF C 32-073; NF C 20-902; NF F 16 101; VDE 0472 Teil 816	Low Smoke Emission
EN 50267-2-1; IEC 60754-1; NF C 32-074; NF C 20-454; VDE 0472 Teil 815	Halogen Free
EN 50267-2-2/3; IEC 60754-2; NF C 32-074;NF C 20-453; VDE 0472 Teil 813	Low Corrosivity (Acidity & Conductivity)
EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853	Low Toxicity
NF F 63 808; BS6853; NF F 16 101	Smoke index
EN50200: 2000	Resistance to fire of unprotected small cable for use in emergency circuits 4 classifications are defined: PH 15,30,60, or 90mins;
IEC60331-21	The circuit integrity test under fire of cables rated 0.6/1.0kV and below
EN45545-2	Requirement for fire behavior of materials & components R15/R16

FRL-MW-05M-OS 300/500 V

Nominal Cross- Sectional Area (a)	Conductor Diameter (b)	Min. Mean Thickness of Insulation	Core Dimensions		Min. Screen Wire Diameter	Min. Average Sheath Thickness	Overall Diameter		Weight	Max. Conductor Resistance	Min. Insulation Resistance
			Core Dimensions				Overall Diameter			Max. Conductor Resistance	EI 110	EI 106/7/8/9
			Min.	Max.			Min.	Max.		20 °C	20 °C	20 °C
n x mm²	mm	mm	mm	mm	mm	mm	mm	mm	kg/km	Ω/km	MΩ x km	MΩ x km
2x1	1.25	0.4	2.0	2.4	0.16	0.6	6.0	7.1	70	20.0	15.0	7.5
4x1	1.25	0.4	2.0	2.4	0.16	0.7	7.0	8.2	110	20.0	15.0	7.5
7x1	1.25	0.4	2.0	2.4	0.16	0.7	8.2	9.6	150	20.0	15.0	7.5
9x1	1.25	0.4	2.0	2.4	0.21	0.8	10.2	11.9	220	20.0	15.0	7.5
12x1	1.25	0.4	2.0	2.4	0.21	0.8	10.9	12.7	260	20.0	15.0	7.5
19x1	1.25	0.4	2.0	2.4	0.26	1.0	13.2	15.4	400	20.0	15.0	7.5
24x1	1.25	0.4	2.0	2.4	0.26	1.0	15.2	17.8	500	20.0	15.0	7.5
32x1	1.25	0.4	2.0	2.4	0.26	1.0	16.6	19.4	610	20.0	15.0	7.5
37x1	1.25	0.4	2.0	2.4	0.26	1.0	17.2	20.1	670	20.0	15.0	7.5
40x1	1.25	0.4	2.0	2.4	0.26	1.2	18.2	21.3	740	20.0	15.0	7.5

4x1.5	1.5	0.5	2.4	2.9	0.16	0.7	8.0	9.4	140	13.7	14.0	7.0
7x1.5	1.5	0.5	2.4	2.9	0.21	0.7	9.6	11.3	220	13.7	14.0	7.0
9x1.5	1.5	0.5	2.4	2.9	0.21	1.0	12.1	14.2	290	13.7	14.0	7.0
12x1.5	1.5	0.5	2.4	2.9	0.21	1.0	13.0	15.2	360	13.7	14.0	7.0
19x1.5	1.5	0.5	2.4	2.9	0.26	1.0	15.3	17.9	540	13.7	14.0	7.0
24x1.5	1.5	0.5	2.4	2.9	0.26	1.2	18.1	21.2	700	13.7	14.0	7.0
32x1.5	1.5	0.5	2.4	2.9	0.26	1.2	19.8	23.2	860	13.7	14.0	7.0
37x1.5	1.5	0.5	2.4	2.9	0.26	1.2	20.5	24.0	960	13.7	14.0	7.0

4x2.5	1.95	0.5	2.9	3.4	0.21	0.7	9.2	10.8	200	8.21	13.0	6.5
7x2.5	1.95	0.5	2.9	3.4	0.21	0.8	11.1	13.0	310	8.21	13.0	6.5
9x2.5	1.95	0.5	2.9	3.4	0.26	1.0	13.9	16.3	440	8.21	13.0	6.5
12x2.5	1.95	0.5	2.9	3.4	0.26	1.0	15.0	17.5	520	8.21	13.0	6.5
19x2.5	1.95	0.5	2.9	3.4	0.26	1.2	17.8	20.8	770	8.21	13.0	6.5
24x2.5	1.95	0.5	2.9	3.4	0.26	1.2	20.6	24.1	970	8.21	13.0	6.5

(a)= One earth conductor (green/yellow) can be included upon request

(b)= For information, indicative only

FRL-MW-1M-OS 0.6/1 kV

Nominal Cross- Sectional Area (a)	Conductor Diameter (b)	Min. Mean Thickness of Insulation	Core Dimensions		Min. Screen Wire Diameter	Min. Average Sheath Thickness	Overall Diameter		Weight	Max. Conductor Resistance	Min. Insulation Resistance
			Core Dimensions				Overall Diameter			Max. Conductor Resistance	EI 110	EI 106/7/8/9
			Min.	Max.			Min.	Max.		20°C	20°C	20°C
mm2	mm	mm	mm	mm	mm	mm	mm	mm	kg/km	Ω/km	MΩ x km	MΩ x km
TWO CORES
1.5	1.5	0.7	2.8	3.3	0.16	0.70	7.9	9.9	90	13.7	21.0	10.5
2.5	1.95	0.7	3.2	3.8	0.16	0.70	8.7	10.7	120	8.21	17.2	8.6
4	2.5	0.7	3.8	4.4	0.21	0.80	10.2	12.7	170	5.09	14.2	7.1
6	3.0	0.7	4.2	5.0	0.21	0.80	10.9	13.6	210	3.39	12.2	6.1
10	3.9	0.7	5.1	5.9	0.21	1.00	13.4	16.6	320	1.95	9.8	4.9
16	5.0	0.7	6.1	7.2	0.26	1.00	16.0	19.8	470	1.24	7.9	3.9
25	6.4	0.9	7.8	9.1	0.26	1.20	19.8	24.6	690	0.795	7.3	3.6
35	7.7	0.9	9.0	10.6	0.31	1.40	22.8	27.9	940	0.565	6.7	3.3
50	9.2	1.0	10.6	12.4	0.31	1.40	26.4	32.3	1260	0.393	6.3	3.1
THREE CORES
1.5	1.5	0.7	2.8	3.3	0.16	0.70	8.4	10.4	120	13.7	21.0	10.5
2.5	1.95	0.7	3.2	3.8	0.16	0.70	9.2	11.4	160	8.21	17.2	8.6
4	2.5	0.7	3.8	4.4	0.21	0.80	10.8	13.3	230	5.09	14.2	7.1
6	3.0	0.7	4.2	5.0	0.21	0.80	11.6	14.3	300	3.39	12.2	6.1
10	3.9	0.7	5.1	5.9	0.26	1.00	14.4	18.0	500	1.95	9.8	4.9
16	5.0	0.7	6.1	7.2	0.26	1.20	17.4	21.3	680	1.24	7.9	3.9
25	6.4	0.9	7.8	9.1	0.26	1.20	21.3	26.1	970	0.795	7.3	3.6
35	7.7	0.9	9.0	10.6	0.31	1.40	24.5	29.8	1330	0.565	6.7	3.3
50	9.2	1.0	10.6	12.4	0.31	1.60	28.3	34.6	1820	0.393	6.3	3.1
FOUR CORES
1.5	1.5	0.7	2.8	3.3	0.16	0.70	9.1	11.3	150	13.7	21.0	10.5
2.5	1.95	0.7	3.2	3.8	0.21	0.80	10.4	12.9	220	8.21	17.2	8.6
4	2.5	0.7	3.8	4.4	0.21	0.80	11.8	14.5	290	5.09	14.2	7.1
6	3.0	0.7	4.2	5.0	0.21	1.00	13.1	16.1	400	3.39	12.2	6.1
10	3.9	0.7	5.1	5.9	0.26	1.00	15.9	19.5	640	1.95	9.8	4.9
16	5.0	0.7	6.1	7.2	0.26	1.20	19.3	23.6	860	1.24	7.9	3.9
25	6.4	0.9	7.8	9.1	0.31	1.40	24.0	29.3	1290	0.795	7.3	3.6
3x35+25	7.7/6.4	0.9/0.9	9.0/7.8	10.6/9.1	0.31	1.4	26.9	32.9	1910	0.565/0.795	6.7	3.3
3x50+25	9.2/6.4	1.0/0.9	10.6/7.8	12.4/9.1	0.31	1.6	31.5	38.2	2560	0.393/0.795	6.3	3.1

(a)= One earth conductor (green/yellow) can be included upon request

(b)= For information, indicative only
