FIREROL High Temperature Single Core Unsheathed Cables 1.8/3 kV or 3.6/6 kV

EN 50382-2 (FRL-HT-3SU, FRL-HT-6SU)

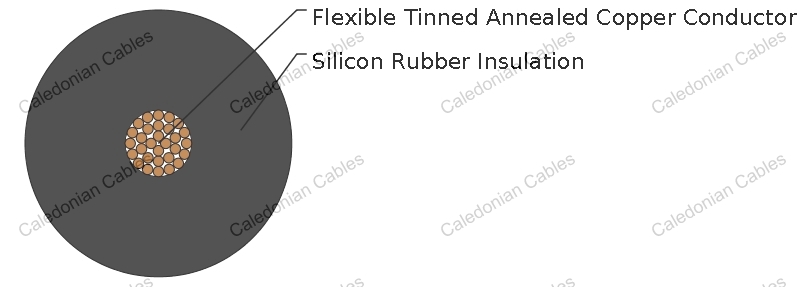

Conductor	Flexible tinned annealed copper wires (red copper only for 150 °C core temperature) class 5 according to HD 383
Insulation	Silicon rubber according to EN 50382-1 (EI 111)

Nominal Voltage	1.8/3 kV or 3.6/6 kV
Max. Conductor Temperature	120°C /150°C (fixed installation)
Min. Permissible Ambient Temperature	-25°C/-40°C (fixed installation)
Bending Radius	3 x Overall Diameter (D<12mm); 4 x Overall Diameter (D>12mm)

EN 60684-2	No fluorine
EN 50305; EN 60811-2-1	Resistance to mineral oil & fuel oil, acid & alkali
EN 50305	Resistance to ozone

EN 50306-2	Hazard levels HL1, HL2, HL3
DIN 5510-2	Protection level 1/2/3/4
BS 6853	Interior use 1a, 1b, II; Exterior use 1a, 1b, II
NF F 16-101	F0
EN54454-2	R15 Interior/ R16 Exterior HL1, HL2, HL3

EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2)	Vertical flame propogation for a single insulated wire or cable
EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804	Vertical flame spread of vertically mounted bunched wires or cables
EN 50268-2; IEC 61034-2; NF C 32-073 ; NF C 20-902; NF F 16 101; VDE 0472 Teil 816	Low Smoke Emission
EN 50267-2-1; IEC 60754-1; NF C 32-074; NF C 20-454; VDE 0472 Teil 815	Halogen Free
EN 50267-2-2/3; IEC 60754-2; NF C 32-074; NF C 20-453; VDE 0472 Teil 813	Low Corrosivity (Acidity & Conductivity)
EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853	Low Toxicity
NF F 63 808; BS6853; NF F 16 101	Smoke index
EN45545-2	Requirement for fire behavior of materials & components R15/R16

Nominal Cross- Sectional Area	Conductor Diameter (a)	Min. Mean Thickness of Insulation	Overall Diameter		Weight	Max.Conductor Resistance		Min. Insulation Resistance
			Overall Diameter			Tinned Conductor	Plain Conductor	Min. Insulation Resistance
			Min.	Max.		20 °C	20 °C	20 °C	150 °C
mm²	mm	mm	mm	mm	kg/km	Ω/km	Ω/km	MΩ x km	MΩ x km
1.5	1.5	2.5	6.3	7.3	50	13.7	13.3	970	1.90
2.5	1.95	2.5	6.7	7.8	70	8.21	7.98	840	1.60
4	2.5	2.5	7.2	8.4	80	5.09	4.95	720	1.40
6	3.0	2.5	7.7	9.0	100	3.39	3.30	650	1.30
10	3.9	2.5	8.5	10.0	160	1.95	1.91	540	1.00
16	5.0	2.5	9.6	11.2	210	1.24	1.21	460	0.90
25	6.4	2.5	10.9	12.7	290	0.795	0.780	380	0.70
35	7.7	2.5	12.1	14.1	380	0.565	0.554	330	0.60
50	9.2	2.5	13.5	15.8	520	0.393	0.386	290	0.50
70	11.0	2.5	15.2	17.8	720	0.277	0.272	250	0.50
95	12.5	2.7	17.0	19.9	930	0.210	0.206	230	0.40
120	14.2	2.7	18.6	21.7	1140	0.164	0.161	210	0.40
150	15.8	2.7	20.1	23.5	1430	0.132	0.129	190	0.30
185	17.5	2.7	21.7	25.4	1720	0.108	0.106	170	0.30
240	20.1	2.7	24.1	28.2	2270	0.0817	0.0801	150	0.30
300	22.5	2.7	26.4	30.9	2750	0.0654	0.0641	140	0.20
400	25.8	2.9	29.9	34.9	3730	0.0495	0.0486	130	0.20

(a)= For information, indicative only

Nominal Cross- Sectional Area	Conductor Diameter (a)	Min. Mean Thickness of Insulation	Overall Diameter		Weight	Max.Conductor Resistance		Min. Insulation Resistance
			Overall Diameter			Tinned Conductor	Plain Conductor	Min. Insulation Resistance
			Min.	Max.		20 °C	20 °C	20 °C	150 °C
mm²	mm	mm	mm	mm	kg/km	Ω/km	Ω/km	MΩ x km	MΩ x km
2.5	1.95	3.0	7.6	8.9	80	8.21	7.98	920	1.80
4	2.5	3.0	8.1	9.5	100	5.09	4.95	800	1.60
6	3.0	3.0	9.0	10.6	120	3.39	3.30	750	1.50
10	3.9	3.0	9.5	11.1	180	1.95	1.91	610	1.20
16	5.0	3.0	10.5	12.3	230	1.24	1.21	520	1.00
25	6.4	3.0	11.8	13.8	310	0.795	0.780	430	0.80
35	7.7	3.0	13.0	15.2	410	0.565	0.554	380	0.70
50	9.2	3.0	14.4	16.9	550	0.393	0.386	330	0.60
70	11.0	3.0	16.1	18.9	740	0.277	0.272	280	0.50
95	12.5	3.0	17.5	20.5	940	0.210	0.206	260	0.50
120	14.2	3.1	19.3	22.6	1170	0.164	0.161	240	0.40
150	15.8	3.1	20.8	24.4	1460	0.132	0.129	220	0.40
185	17.5	3.2	22.6	26.5	1760	0.108	0.106	200	0.40
240	20.1	3.4	25.4	29.8	2340	0.0817	0.0801	190	0.30
300	22.5	3.4	27.7	32.4	2820	0.0654	0.0641	170	0.30
400	25.8	3.4	30.8	36.0	3780	0.0495	0.0486	150	0.30

(a)= For information, indicative only
