Application
The cables are used as interconnecting cables for Solid State Interlocking (SSI) systems.
Standard

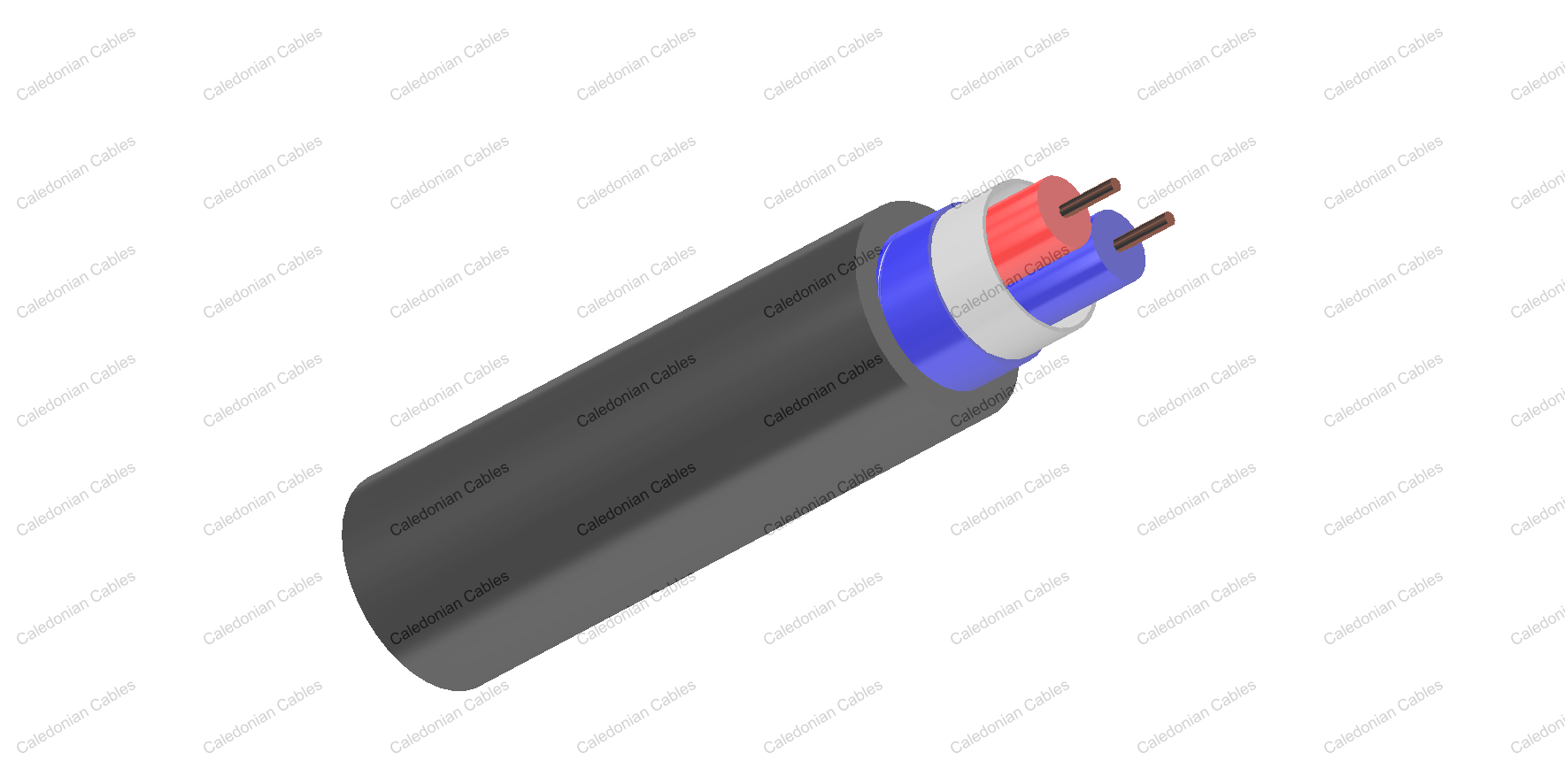

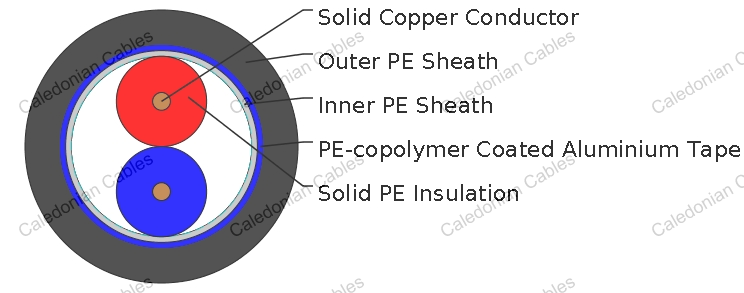

Cable Construction
- Electrical Characteristics at 20℃Conductors: Class 1 solid plain copper conductor, 1.27mm nominal diameter.
- Insulation: Solid polyethylene.
- Inner Sheath: Low density polyethylene.
- Moisture Barrier: PE Copolymer coated aluminium tape.
- Sheath: Low density polyethylene.
- Core Identifi cation: Blue & Red.
Nominal Conductor Diameter |
mm |
1.27 |
Nominal Conductor Cross Section |
mm |
2.5 |
Maximum Conductor Resistance |
Ω/km |
7.41 |
Mechanical and Thermal Properties
- Minimum Bending Radius: 6×OD
- Temperature Range: -25℃ to +85℃ (during operation); -10℃ to +85℃ (during installation)
Dimensions and Weight
Cable Code |
No. of pairs |
Nominal Sheath
Thickness
mm |
Overall Diameter
Min/Max
mm |
Nominal Weight
kg/km |
1.27mm Conductor, 2.59mm Insulation Wire |
RS1932-2Y2Y(L)2Y-1P1.27 |
1 |
2.5 |
12.47/12.8 |
136 |
