    SCG Local Control Cables

    • SCG Local Control Cables
    • SCG Local Control Cables

    Application

    The cables are designed as local control or power supply cables for trackside and between the rails equipments inside the equipment shelter

    Standard

    • SNCF CT466

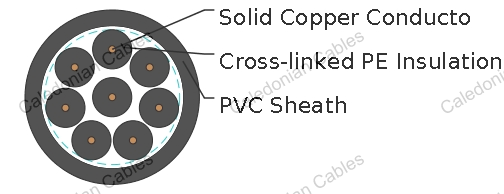

    Cable Construction

    • Electrical Characteristics at 20℃Conductors: Class 1 tinned solid copper.
    • Insulation: Cross-linked black polyethylene (XLPE) insulation.
    • Sheath: PVC sheath, coloured black.
    No of Strands/ Strand Diameter No/mm 1.78 2.76
    Nominal Cross Section Area mm 2.5 6
    Maximum Conductor Resistance (DC) Ω/km 7.56 3.11
    Operating Voltage V 750

    Mechanical and Thermal Properties

    • Minimum Bending Radius: 5×OD (static); 10×OD (dynamic)
    • Operating Temperature: -20℃ to +90℃

    Dimensions and Weight

    Cable Code Number of Cores Nominal Sheath Thickness
    mm
    Nominal Overall Diameter
    mm
    Nominal Weight
    kg/km
    1.78mm Conductor, 4mm Insulated Wire
    RS/SCG-075-2XY-2G2.5 2 3.0 14 227
    RS/SCG-075-2XY-4G2.5 4 3.2 17 336
    RS/SCG-075-2XY-6G2.5 6 3.7 19.5 475
    RS/SCG-075-2XY-8G2.5 8 3.9 21 542
    2.76mm Conductor, 5.4mm Insulated Wire
    RS/SCG-075-2XY-2G6 2 3.6 18 384
    RS/SCG-075-2XY-4G6 4 3.7 20.5 550
    RS/SCG-075-2XY-6G6 6 3.9 23.5 780
    RS/SCG-075-2XY-8G6 8 3.1 26 940
