    Category 5E Data Cables

    Application

    The cables are designed for permanently protected installation, inside and outside railway rolling stock, buses and other vehicles to connect fixed parts. Ethernet based networks as: infotainment, multimedia, passenger information system etc.

    Standard

    • DIN 5510-2
    • EN 50228-2-2
    • BS 6853
    • EN 50306-3 par 4.8/4.9/4.10

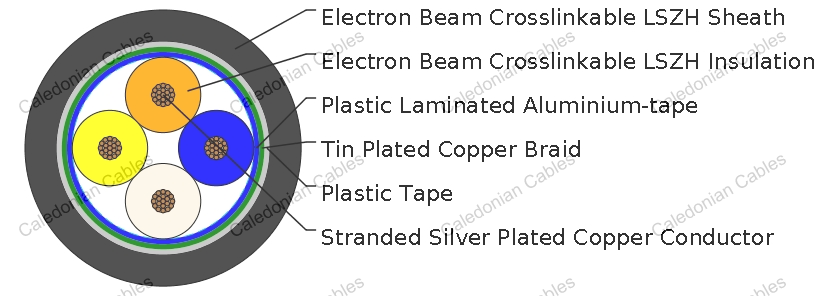

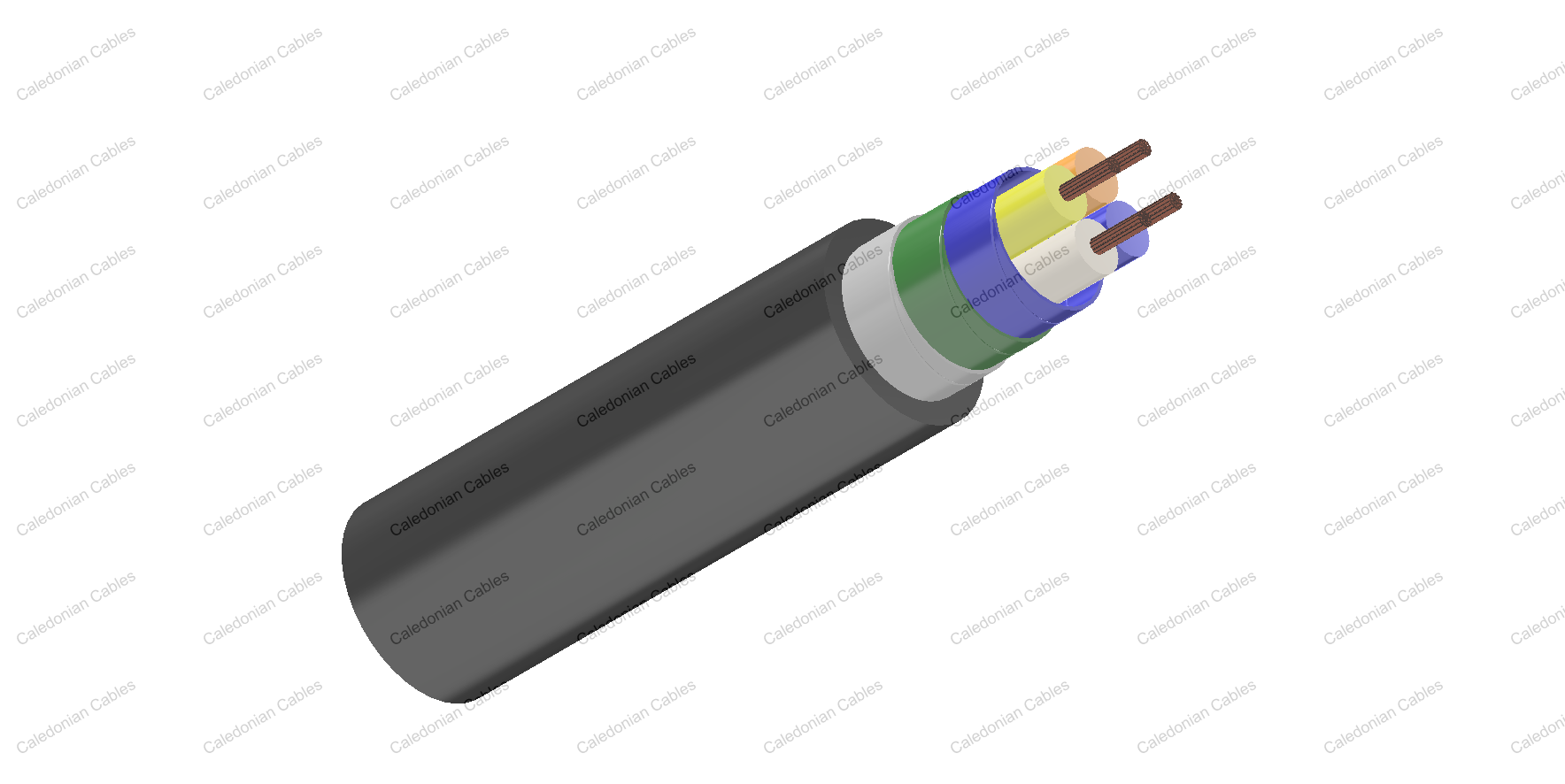

    Cable Construction


    Conductors: Stranded tin plated copper conductor (for 0.5mm^2 cables) or stranded silver plated copper conductor (for 22AWG cables) according to IEC 60228 class 5.For 4×0.5mm^2, 4×22AWG cables:

    • Insulation: Electron beam crosslinkable compound.
    • Cable Element: Individual conductor stranded together.
    • EMC Screen1: Plastic laminated aluminium-tape.
    • EMC Screen2: Tinned copper braid.
    • Separator (s): Plastic tape.
    • Outer Sheath: Electron beam crosslinkable compound.

    For 4×2×22AWG cables:

    • Center: PE fi ller.
    • 4 pairs 2×22AWG: Stranded tinned copper conductor according to IEC 60228 class 5.
    • Insulation: Electron beam crosslinkable compound.
    • EMC Screen1: Plastic laminated aluminium-tape.
    • EMC Screen2: Tinned copper braid.
    • Separator(s): Plastic tape.
    • Outer Sheath: Electron beam crosslinkable compound.

    Electrical Characteristics at 20℃

    Nominal Cross Section mm^2 0.5 -
    AWG   - 22
    Nominal Conductor Resistance Ω/km 40.1 54.4
    Maximum Resistance Unbalance Ω/km 1.1 1.1
    Maximum Capacitance
    Core to Core pF/m 65 65
    Core to Screen pF/m 100 100
    Characteristic Impedance @100MHz Ω 100+/-5 100+/-5
    Transfer Impedance f≤30MHz mΩ/m V 200 200
    Nominal Voltage Rating   300 300

    Mechanical and Thermal Properties

    • Minimum Bending Radius: 6×OD
    • Temperature Range: -40℃ to +90℃

    Dimensions and Weight

    Cable Code

    No. of cores& Nominal Conductor Cross Sectional Area

    No.×mm^2

    Nominal
    Diameter of
    Strands
    No/mm
    Nominal
    Sheath
    Thickness
    mm
    Nominal
    Overall
    Diameter
    mm
    Nominal
    Weight
    kg/km
    RD-Cat5E-4C0.5S 4×0.5 19/0.18 1.2 8.3 102
    RD-Cat5E-4C22A 4×22AWG 19/0.16 1.2 7.25 81
    RD-Cat5E-4P22A 4×2×22AWG 19/0.16 1.2 12.6 174
