    NSGAFOU Cables

    Application

    The cables are designed for use in switch cabinets, wiring of devices, trains and buses as well as in dry rooms.

    Standard

    • DIN VDE 0250-602

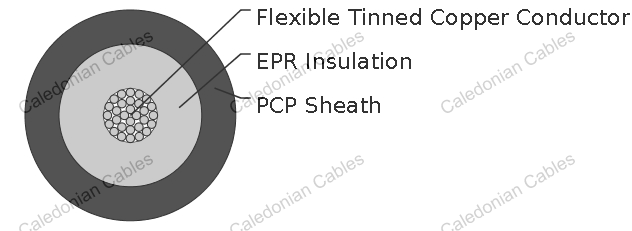

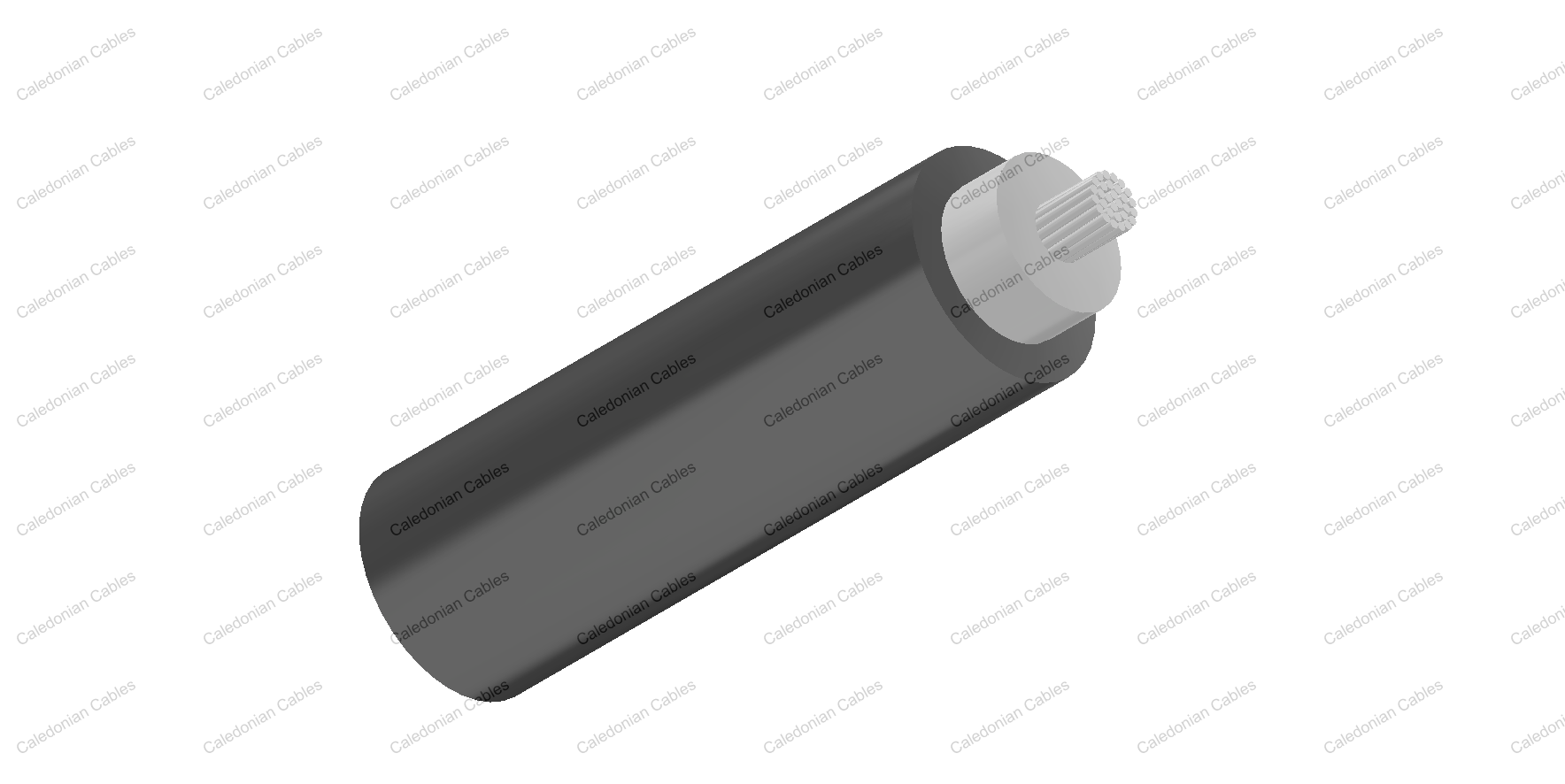

    Cable Construction

    • Electrical Characteristics at 20℃Conductors: Flexible tinned copper to IEC 60228 class 5.
    • Insulation: EPR type 3G13.
    • Outer sheath: PCP type 5GM3.
    Nominal Conductor Cross Section mm^2 1.5 2.5 4.0 6.0 10 16 25 35
    Conductor Resistance Ω/km 13.7 8.21 5.09 3.39 1.95 1.24 0.795 0.565
    Current Rating A 31 41 58 75 103 145 194 240
    Voltage Rating KV 1.8/3
    Nominal Conductor Cross Section mm^2 50 70 95 120 150 185 240
    Conductor Resistance Ω/km 0.393 0.277 0.21 0.164 0.132 0.109 0.0817
    Current Rating A 301 372 456 528 607 639 821
    Voltage Rating KV 1.8/3

    Mechanical and Thermal Properties

    • Minimum Bending Radius: 4×OD
    • Temperature Range: -25℃ to +80℃ (during operation); -10℃ to +60℃ (during installation)

    Dimensions and Weight

    Cable Code No. of cores& Nominal
    Conductor Cross
    Sectional Area
    No.×mm^2    		 No. & Nominal
    Diameter of
    Strands
    No/mm    		 Nominal
    Insulation
    Thickness
    mm    		 Nominal
    Overall
    Diameter
    mm    		 Nominal
    Weight
    kg/km
    RF602-NSGAFOU-1G1.5 1×1.5 30/0.25 1.3 6.5 59
    RF602-NSGAFOU-1G2.5 1×2.5 50/0.25 1.3 6.8 74
    RF602-NSGAFOU-1G4 1×4.0 56/0.3 1.3 7.7 94
    RF602-NSGAFOU-1G6 1×6.0 84/0.3 1.3 8.3 118
    RF602-NSGAFOU-1G10 1×10.0 80/0.4 1.5 9.2 163
    RF602-NSGAFOU-1G16 1×16.0 126/0.4 1.5 10.1 220
    RF602-NSGAFOU-1G25 1×25.0 196/0.40 1.8 12.5 336
    RF602-NSGAFOU-1G35 1×35.0 276/0.40 1.8 14.0 470
    RF602-NSGAFOU-1G50 1×50.0 396/0.40 1.8 15.5 581
    RF602-NSGAFOU-1G70 1×70.0 360/0.50 1.8 17.0 772
    RF602-NSGAFOU-1G95 1×95.0 475/0.50 2.2 19.5 1030
    RF602-NSGAFOU-1G120 1×120.0 608/0.50 2.2 21.2 1280
    RF602-NSGAFOU-1G150 1×150.0 756/0.50 2.2 23.5 1650
    RF602-NSGAFOU-1G185 1×185.0 925/0.50 2.4 25.6 2050
    RF602-NSGAFOU-1G240 1×240.0 1221/0.50 2.6 27.3 2590
