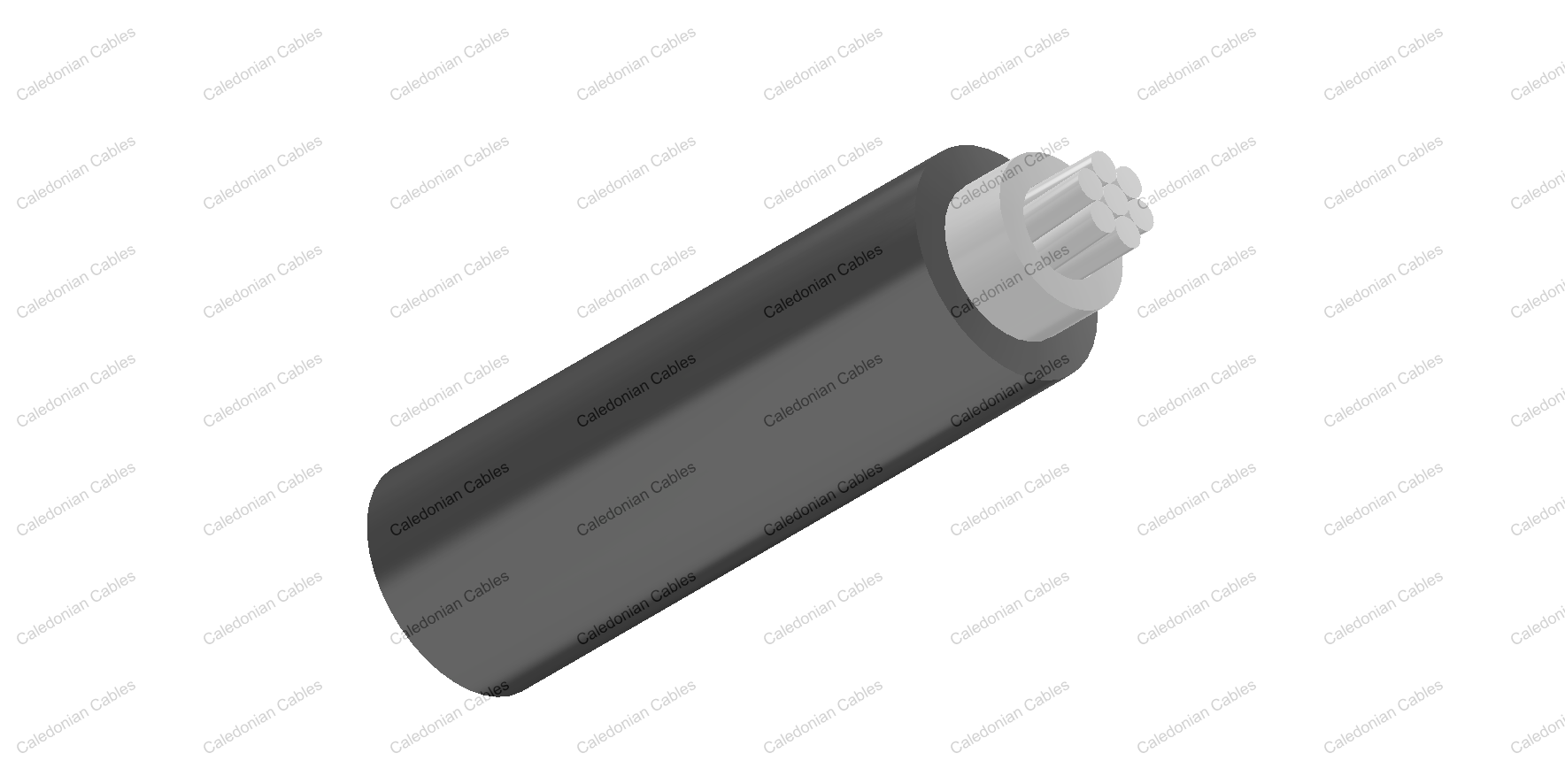

    0.6/1KV Limited Fire Hazard Rail Connection Cables to SE902

    Application

    The single core high performance power cables are used in safety signalling equipment rooms.

    Standard

    • SE902
    • UNE 21123

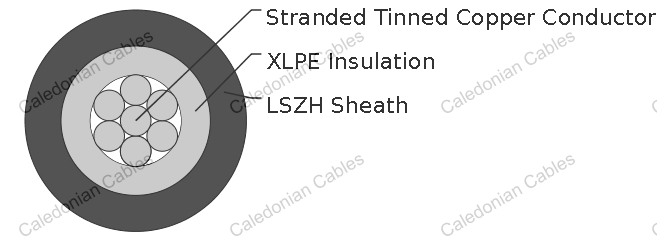

    Cable Construction

    Electrical Characteristics at 20℃

    Conductors Stranded tinned copper conductors to IEC 60228 class 2 or 5
    Insulation XLPE
    Sheath LSZH.



    Nominal Conductor Cross Section mm^2 4.0
    Maximum DC Conductor Resistance Ω/km 4.7
    Voltage Rating KV 0.6/0.1

    Mechanical and Thermal Properties

    • Minimum Bending Radius: 7.5×OD
    • Temperature Range:-25℃ to +85℃ (during operation); -10℃ to +70℃ (during installation)

    Dimensions and Weight

    Cable Code No. of cores& Nominal
    Conductor Cross
    Sectional Area
    No.×mm^2
    No. & Nominal
    Diameter of
    Strands
    No/mm
    Nominal
    Insulation
    Thickness
    mm
    Nominal
    Overall
    Diameter
    mm
    Nominal
    Weight
    kg/km
    RF902-RZ1-U-0.6/1KV-1G4 1×4.0 7/0.85 0.8 21.6 624

    U is changed to K if the stranding class is changed from class 2 to class 5
