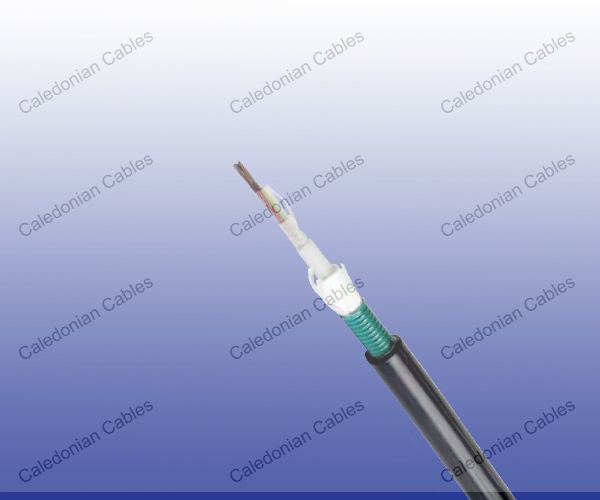

    K209B LSZH Armoured Optical Fiber Cables

    Application

    The cables are designed for long distance telecommunication and using optical fibres in urban railways infrastructure. These low smoke halogen-free cables are laid on hooks, pulled through ducts or cable trays.

    Standard

    • RATP K209B or RATP K209A

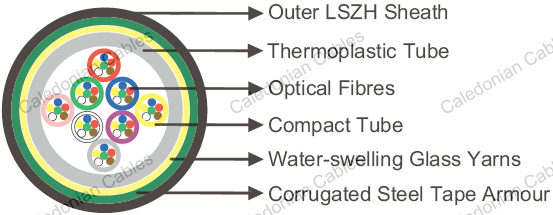

    Cable Construction

    • Electrical Characteristics at 20℃Compact Tube: 6 or 12 singlemode optical fibres G652 or multimode fi bers assembled under thermoplastic “peelable” skin. Tube diameter: 1mm.
    • Filling: Water-swelling yarns.
    • Tube: Thermoplastic.
    • Peripheral Strength Member: Water-swelling glass yarns.
    • Armour: Corrugated steel tape armour 25/100.
    • Sheath: LSZH.
    • Optional

    • K209A Type: For K209A type, the cables have loose tubes with 6-12 fi bers, steel wire strand as central strength member, glass yarn reinforced, incorporating a corrugated steel tape armour and an outer UV stabilized LSZH jacket.
    Maximum Attenuation   G652
    @1310nm dB/km 0.35
    @1550nm dB/km 0.22
    Maximum Chromatic Dispersion
    Between 1260 and 1360nm ps/(nm/km) 3.5
    Between 1530 and 1565nm ps/(nm/km) 19
    Zero Dispersion Wavelength nm 1310±11
    Zero Dispersion Slope ps/(nm2.km) 0.09
    Numerical Aperture   0.14
    Point discontinuity dB 0.1
    PMD (individual fi ber) ps/km 0.2
    Maximum Cutoff Wavelength nm 1260
    Cladding Diameter um 125±1
    Core/Cladding Concentricity Error um ≤0.5
    Cladding Non Circularity % ≤1
    Coating Non Circularity % ≤6
    Proof Test Level Kpsi (GN/m2) 100 (0.7)
    Crush Resistance N/cm 300
    Maximum Laying Tension N 3000

    Optical & Geometrical Properties for Multimode Fibers

        50/125 62.5/125
    Maximum Attenuation
    @850nm dB/km ≤2.5 ≤3.0
    @1300nm dB/km ≤0.7 ≤0.8
    Maximum Chromatic Dispersion
    @850nm MHz*km ≥500 ≥200
    @1300nm MHz*km ≥800 ≥500
    Zero Dispersion Wavelength nm 1310 1310
    Numerical Aperture - 0.20±0.015 0.275±0.015
    Core Diameter um 50±3 62.5±3
    Cladding Diameter um 125±2 125±2
    Core/Cladding Concentricity Error(Offset) um ≤1.5 ≤1.5
    Coating-Clad Concentricity Error(Offset) um ≤8 ≤8
    Core Non-Circularity % ≤6 ≤6
    Cladding Non-Circularity % ≤2 1 ≤2 1
    Coating Diameter um 245±10 245±10
    Proof-Test Level Kpsi (GN/m2) 100 (0.7) 100 (0.7)

    Mechanical and Thermal Properties

    • Bending Radius: 20×OD
    • Temperature Range: -40℃ to +60℃ (during operation); -10℃ +60℃ (during installation)

    Dimensions and Weight

    K209A

    Cable Code No. of
    fibres
    Distribution Nominal
    Sheath
    Thickness
    mm
    Nominal
    Overall
    Diameter
    mm
    Nominal
    Weight
    kg/km
    RO/K209A-ML-C-9-TnxFn-SR-(STA)H 1-36 6 fi bre per tubes 1.8 12 190
    RO/K209A-ML-C-9-TnxFn-SR-(STA)H 42-72 6/12 fi bre per tubes 1.8 13.5 230

    Tn: Number of tubes; Fn: Number of fi bers in a tube

    K209B

    Cable Code No. of
    fibres
    No of Tubes x No of
    Fibers/Tube
    Nominal Sheath
    Thickness
    mm
    Nominal Overall
    Diameter
    mm
    Nominal
    Weight
    kg/km
    Singlemode Fibres From 6 to 36 OF – G652
    RO/K209B-ML-C-9-2x6-F-(STA)H 12 2 tubes of 6 OF 1.8 13 112
    RO/K209B-ML-C-9-4x6-F-(STA)H 24 4 tubes of 6 OF 1.8 13 112
    RO/K209B-ML-C-9-6x6-F-(STA)H 36 6 tubes of 6 OF 1.8 13 112
    Singlemode Fibres From 48 to 72 OF – G652
    RO/K209B-ML-C-9-8x6-F-(STA)H 48 8 tubes of 6 OF 2.5 15.5 230
    RO/K209B-ML-C-9-6x12-F-(STA)H 72 6 tubes of 12 OF 2.8 15.5 230
    Multimode Fibres From 6 to 36 OF – 50/125
    RO/K209B-ML-C-9-1x6-F-(STA)H 6 1 tubes of 6 OF 1.8 13 112
    RO/K209B-ML-C-9-2x6-F-(STA)H 12 2 tubes of 6 OF 1.8 13 112
