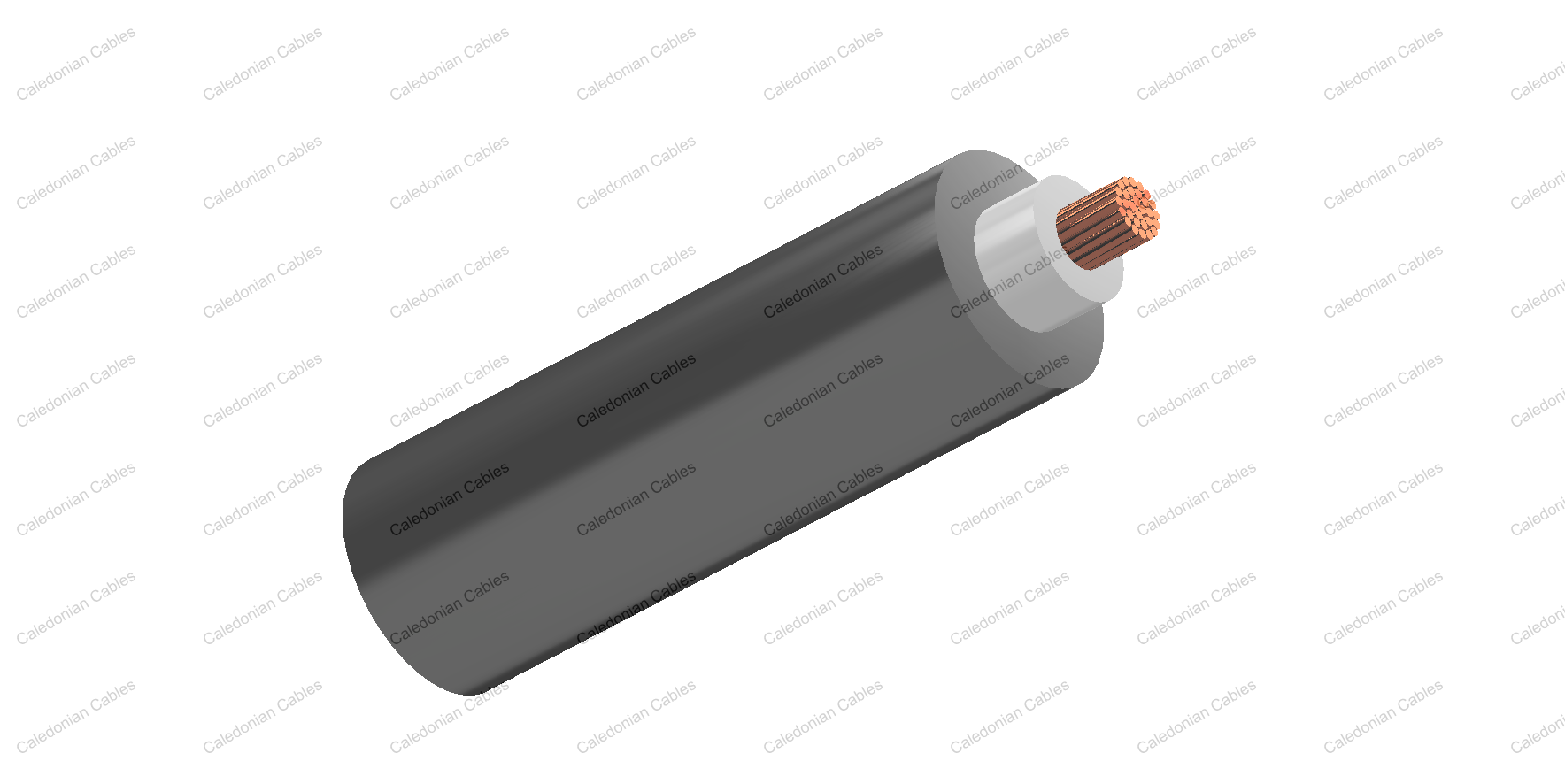

    Inductive Loop Cable

    • Inductive Loop Cable
    • Inductive Loop Cable

    Application

    The cables are designed for installation between railway running rails and they provide communications between trains and trackside equipments.

    Standard

    • TR2029

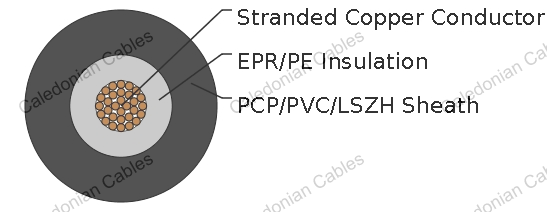

    Cable Construction

    • Electrical Characteristics at 20℃Conductors: Stranded copper conductor.
    • Insulation: EPR/PE.
    • Sheath: PCP/PVC/LSZH.
    Nominal Conductor Cross Section mm 1.5 2.5
    Maximum Conductor Resistance Ω/km 13.7 7.41
    Minimum Insulation Resistance MΩ.km 5000 5000
    Capacitance to Earth @1KHz pF/km 0.1 0.1

    Mechanical and Thermal Properties

    • Minimum Bending Radius: 6×OD (static); 15×OD (dynamic)
    • Temperature Range: -20℃ to +85℃

    Dimensions and Weight

    Cable Code No. of cores&
    Nominal Conductor
    Cross Sectional Area
    No.×mm
    No. & Nominal
    Diameter of
    Strands
    No/mm
    Nominal
    Insulation
    Thickness
    mm
    Nominal
    Sheath
    Thickness
    mm
    Nominal
    Overall
    Diameter
    mm
    Nominal Weight
    kg/km
    RS2029-3G5G-1G1.5 1×1.5 30/0.25 0.8 1.4 6.6 70
    RS2029-2YY-1G2.5 1×2.5 7/0.67 3.5 2.0 13 183
    RS2029-2YH-1G2.5 1×2.5 7/0.67 0.7 4.5 13 219
