    FTN Screening Conductor Cables

    Application

    The cables are designed to be used for the purpose of screening telecommunication cables from electrical interference.

    Standard

    • NR/PS/TEL/31102(BR1817)
    • BS 6485

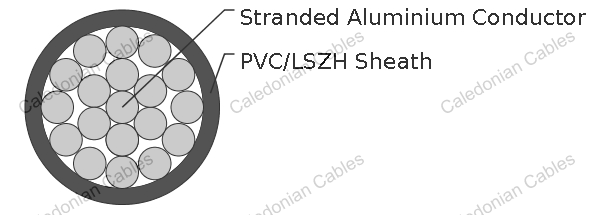

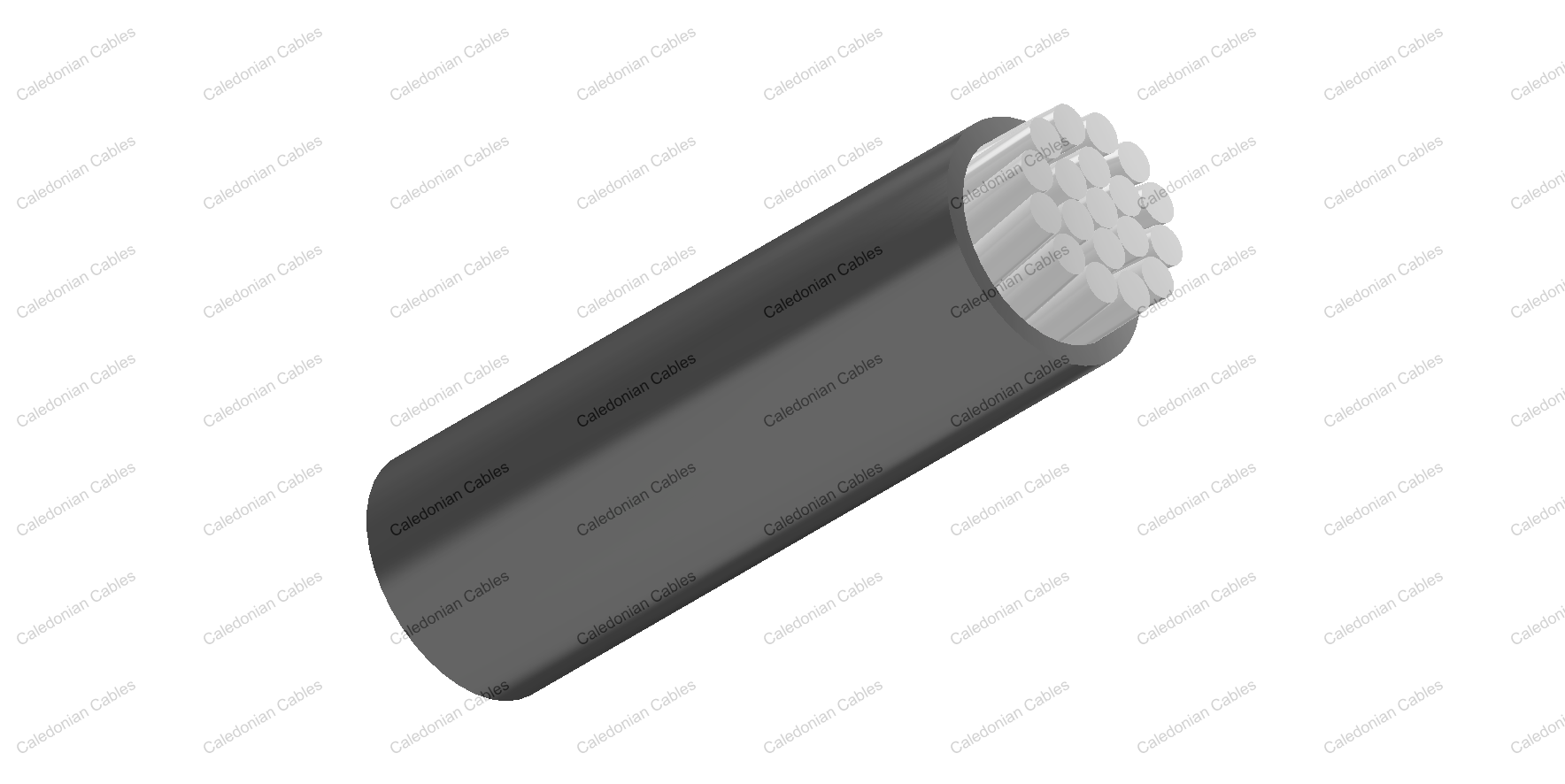

    Cable Construction

    Electrical Characteristics at 20℃

    Conductors Single core stranded aluminium to BS 215PT1
    Insulation PVC type 16 to BS 6485 or LSZH



    Nominal Conductor Cross Section mm^2 150 250
    Maximum DC Conductor Resistance Ω/km 0.1825 0.1083

    Mechanical and Thermal Properties

    • Minimum Bending Radius: 9×OD
    • Temperature Range: 0℃ to +70℃ (during operation); 0℃ to +55℃ (during installation)

    Dimensions and Weight

    Cable Code No. of cores& Nominal
    Conductor Cross
    Sectional Area
    No.×mm^2
    No. & Nominal
    Diameter of
    Strands
    No/mm
    Nominal
    Thickness of
    Insulation
    mm
    Nominal
    Overall
    Diameter
    mm
    Nominal
    Weight
    kg/km
    RF31102-H07V-U-450/750V-1G150AL 1×150 19/3.25 1.6 19.45 629
    RF31102-H07V-U-450/750V-1G250AL 1×250 19/4.22 1.6 24.30 995

    U is changed to K if the stranding class is changed from class 2 to class 5
