These cables are designed for flexible installations, inside and outside railway rolling stock.
DIN 5510-2
Electrical Characteristics at 20℃

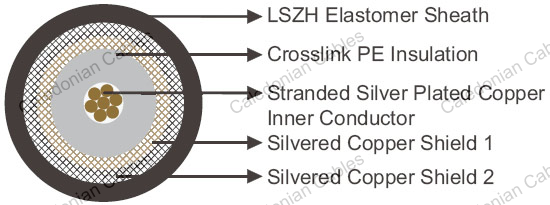

Inner conductor | Stranded silver plated copper |
Insulation | Crosslink PE (PEX) |
Outer conductor (shield 1) | Silver plated copper |
Outer conductor (shield 2) | Silver plated copper |
Sheath | LSZH Elastomer |
Impedance | Ω | 50+/-2 |
Nominal Capacitance | pF/m | 101 |
Minimum Insulation Resistance | MΩ.km | 100000 |
Inner Conductor Resistance | MΩ/km | 5.8 |
Outer Conductor Resistance | MΩ/km | 4.43 |
Attenuation | ||
@10MHz | dB/100m | 2 |
@50MHz | dB/100m | 5 |
@100MHz | dB/100m | 8 |
@150MHz | dB/100m | 10 |
@200MHz | dB/100m | 12 |
@300MHz | dB/100m | 15 |
@400MHz | dB/100m | 17 |
@450MHz | dB/100m | 19 |
@500MHz | dB/100m | 20 |
@600MHz | dB/100m | 22 |
@800MHz | dB/100m | 27 |
@850MHz | dB/100m | 28 |
@900MHz | dB/100m | 29 |
@950MHz | dB/100m | 30 |
@1000MHz | dB/100m | 31 |
@1800MHz | dB/100m | 45 |
@1900MHz | dB/100m | 47 |
@2000MHz | dB/100m | 49 |
@2400MHz | dB/100m | 55 |
@3000MHz | dB/100m | 64 |
@4000MHz | dB/100m | 79 |
@5000MHz | dB/100m | 93 |
@6000MHz | dB/100m | 106 |
Velocity of propagation | % | 66 |
Minimum Bending Radius | 50mm (static) |
Temperature Range | -40℃~ +105℃ |
Conductor Construction | Nominal Inner Conductor Diameter | Nominal Outer Conductor Diameter | Nominal Overall Diameter | Nominal Weight |
No/mm | mm | mm | mm | kg/km |
7/0.75 | 2.25 | 8.7 | 10.8 | 202 |
