    EAPSP n×1×1.4

    • EAPSP n×1×1.4

    Application

    The cables are used as railway cables and can be installed directly into the ground or in ducts.

    Standard

    • RENFE E.T. 03.365.051.6

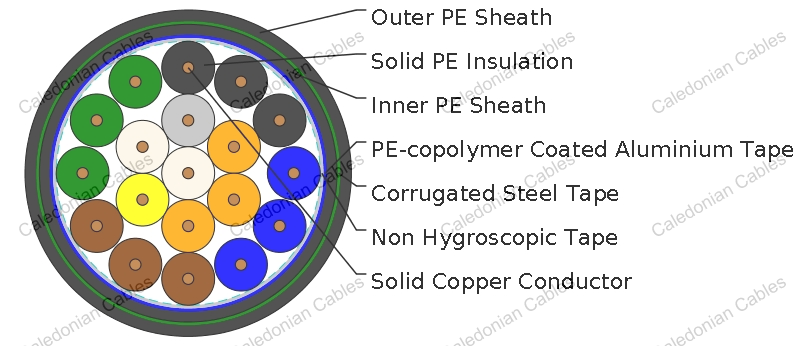

    Cable Construction

    • Electrical Characteristics at 20℃Conductors: Soft annealed solid copper, 1.4 mm nominal diameter.
    • Insulation: PE insulation.
    • Stranding: Cores are helically stranded in concentric layers.
    • Core Wrapping: Plastic tape(s) with overlapping.
    • Moisture Barrier: One laminated sheath made of aluminium tape (0.2mm thick) coated with copolymer on at least one side is applied longitudinally with overlap.
    • Inner Sheath: PE sheath.
    • Armour: One corrugated steel tape is longitudinally applied with overlap.
    • Outer Sheath: PE sheath.
    Nominal Conductor Diameter mm 1.4
    Maximum Conductor Resistance Ω/km 11.7
    Minimum Insulation Resistance @500 V DC MΩ.km 25000
    Resistance Unbalance % 2
    Test Voltage @50Hz 1min
    Core to Core Veff 2100
    Core to Screen Veff 2500
    Core to Armouring Veff 2000

    Mechanical and Thermal Properties

    • Minimum Bending Radius: 10×OD
    • Temperature Range: -30℃ to +70℃ (during operation); -10℃ +50℃ (during installation)

    Dimensions and Weight

    Cable Code Number of
    Cores
    Nominal Sheath Thickness
    mm
    Maximum Overall
    Diameter
    mm
    Nominal
    Weight
    kg/km
    Inner Outer
    1.4mm Conductor, 2.6mm Insulated Wire
    RS/EAPSP-2Y(L)2Y(SR)2Y-4C1.4 4 1.3 1.4 15.7 270
    RS/EAPSP-2Y(L)2Y(SR)2Y-7C1.4 7 1.3 1.4 17.1 350
    RS/EAPSP-2Y(L)2Y(SR)2Y-9C1.4 9 1.3 1.4 19.9 420
    RS/EAPSP-2Y(L)2Y(SR)2Y-12C1.4 12 1.3 1.4 20.0 480
    RS/EAPSP-2Y(L)2Y(SR)2Y-19C1.4 19 1.3 1.4 22.0 630
    RS/EAPSP-2Y(L)2Y(SR)2Y-27C1.4 27 1.3 1.4 24.8 810
    RS/EAPSP-2Y(L)2Y(SR)2Y-37C1.4 37 1.3 1.4 26.9 1010
    RS/EAPSP-2Y(L)2Y(SR)2Y-48C1.4 48 1.3 1.4 29.7 1240
    RS/EAPSP-2Y(L)2Y(SR)2Y-61C1.4 61 1.3 1.4 31.8 1490
