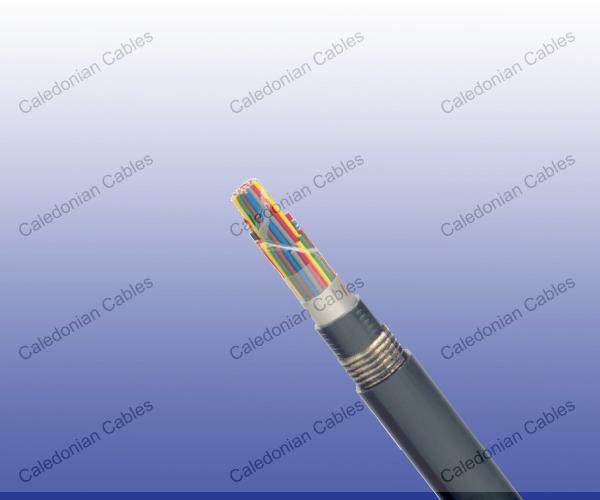

    EAPSP n×4×0.9/1.3/1.4

    Application

    The cables are used as railway cables and can be installed directly into the ground or in ducts.

    Standard

    • RENFE E.T. 03.365.051.6

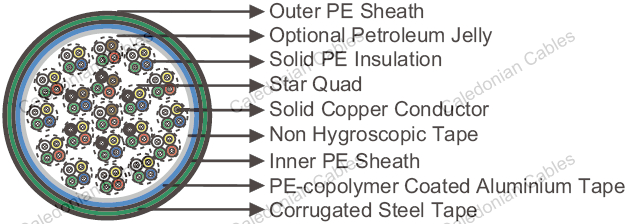

    Cable Construction

    • Electrical Characteristics at 20℃Conductors: Soft annealed solid copper, 0.9/1.3/1.4 mm nominal diameter.
    • Insulation: PE.
    • Cabling Element: Four insulated conductors are twisted together to form a quad.
    • Stranding: Star quads are helically stranded in concentric layers.
    • Core Wrapping: Plastic tape(s) with overlapping.
    • Moisture Barrier: One laminated sheath made of aluminium tape (0.2mm thick) coated with copolymer on at least one side is applied with longitudinally overlap.
    • Inner Sheath: PE sheath.
    • Armour: One corrugated steel tape is longitudinally applied with overlap.
    • Outer Sheath: PE sheath.
    • Optional: Jelly Filled Cables: The cable core interstices are fi lled with petroleum jelly to avoid longitudinal water penetration within the cable. The water resistant filling compound is applied to the air space between non-hygroscopic tape and shield, shield and sheath within the cable core.
    Nominal Conductor Diameter mm 0.9 1.3 1.4
    Maximum Conductor Resistance Ω/km 28.5 13.7 11.7
    Minimum Insulation Resistance @500 V DC MΩ.km 25000 25000 25000
    Resistance Unbalance % 1 1 1
    Mutual Capacitance @800Hz nF/km 41 45 45
    Capacitance Unbalance @800Hz
    K1 mean value/individual value pF/460m 35/250 35/250 35/250
    K9-12 mean value/individual value pF/460m 35/250 35/250 35/250
    ea1/2 mean value/individual value pF/460m 320/1200 320/1200 320/1200
    Attenuation @1KHz dB/km 0.7 0.5 0.46
    Test Voltage @50Hz 1min
    Core to Core Veff 2100 2100 2100
    Core to Screen Veff 2500 2500 2500
    Core to Armouring Veff 2000 2000 2000

    Mechanical and Thermal Properties

    • Minimum Bending Radius: 10×OD
    • Temperature Range: -30℃ to +70℃ (during operation); -10℃ to +50℃ (during installation)

    Dimensions and Weight

    EAPSP n×4×0.9/1.3/1.4 Cables

    Cable Code Number of
    Quads
    (n)
    Nominal Sheath Thickness
    mm
    Maximum Overall
    Diameter
    mm
    Nominal Weight
    kg/km
    Inner Outer
    0.9mm Conductor, 1.8mm Insulated Wire
    RS/EAPSP-2Y(L)2YB2Y-1Q0.9 1 1.3 1.4 15.5 240
    RS/EAPSP-2Y(L)2YB2Y-3Q0.9 3 1.3 1.4 19.5 380
    RS/EAPSP-2Y(L)2YB2Y-5Q0.9 5 1.3 1.4 22.0 490
    RS/EAPSP-2Y(L)2YB2Y-7Q0.9 7 1.3 1.4 24.0 580
    RS/EAPSP-2Y(L)2YB2Y-10Q0.9 10 1.3 1.4 27.5 750
    RS/EAPSP-2Y(L)2YB2Y-14Q0.9 14 1.4 1.6 30.0 920
    1.3mm Conductor, 2.5mm Insulated Wire
    RS/EAPSP-2Y(L)2YB2Y-1Q1.3 1 1.3 1.4 16.0 270
    RS/EAPSP-2Y(L)2YB2Y-3Q1.3 3 1.3 1.4 20.5 470
    RS/EAPSP-2Y(L)2YB2Y-5Q1.3 5 1.4 1.6 26.5 680
    RS/EAPSP-2Y(L)2YB2Y-7Q1.3 7 1.4 1.6 27.0 840
    RS/EAPSP-2Y(L)2YB2Y-10Q1.3 10 1.4 1.6 30.5 1100
    RS/EAPSP-2Y(L)2YB2Y-14Q1.3 14 1.5 1.6 34.0 1400
    1.4mm Conductor, 2.6mm Insulated Wire
    RS/EAPSP-2Y(L)2YB2Y-1Q1.4 1 1.3 1.4 18.0 330
    RS/EAPSP-2Y(L)2YB2Y-3Q1.4 3 1.3 1.4 23.0 560
    RS/EAPSP-2Y(L)2YB2Y-5Q1.4 5 1.4 1.6 26.5 770
    RS/EAPSP-2Y(L)2YB2Y-7Q1.4 7 1.4 1.6 29.0 950
    RS/EAPSP-2Y(L)2YB2Y-10Q1.4 10 1.4 1.6 34.0 1280
    RS/EAPSP-2Y(L)2YB2Y-14Q1.4 14 1.5 1.6 38.0 1650
    RS/EAPSP-2Y(L)2YB2Y-19Q1.4 19 1.6 1.8 43.0 2120

    EAPSP-R n×4×0.9/1.3 Jelly Filled Cables

    Cable Code Number of
    Quads
    (n)
    Nominal Sheath Thickness
    mm
    Maximum Overall
    Diameter
    mm
    Nominal Weight
    kg/km
    Inner Outer
    0.9mm Conductor, 1.8mm Insulated Wire
    RS/EAPSP-R-2Y(F)(L)2YB2Y-1Q0.9 1 1.3 1.4 16.5 270
    RS/EAPSP-R-2Y(F)(L)2YB2Y-3Q0.9 3 1.3 1.4 22.0 470
    RS/EAPSP-R-2Y(F)(L)2YB2Y-5Q0.9 5 1.3 1.4 25.0 630
    RS/EAPSP-R-2Y(F)(L)2YB2Y-7Q0.9 7 1.3 1.4 26.7 730
    RS/EAPSP-R-2Y(F)(L)2YB2Y-10Q0.9 10 1.3 1.4 31.5 980
    RS/EAPSP-R-2Y(F)(L)2YB2Y-12Q0.9 12 1.4 1.6 32.8 1090
    RS/EAPSP-R-2Y(F)(L)2YB2Y-14Q0.9 14 1.4 1.6 34.6 1230
    RS/EAPSP-R-2Y(F)(L)2YB2Y-19Q0.9 19 1.5 1.6 39.0 1560
    RS/EAPSP-R-2Y(F)(L)2YB2Y-25Q0.9 25 1.5 1.6 43.2 1940
    1.3mm Conductor, 2.5mm Insulated Wire
    RS/EAPSP-R-2Y(F)(L)2YB2Y-1Q1.3 1 1.3 1.4 18.0 360
    RS/EAPSP-R-2Y(F)(L)2YB2Y-3Q1.3 3 1.3 1.4 23.0 570
    RS/EAPSP-R-2Y(F)(L)2YB2Y-5Q1.3 5 1.4 1.6 29.5 830
    RS/EAPSP-R-2Y(F)(L)2YB2Y-7Q1.3 7 1.4 1.6 29.7 980
    RS/EAPSP-R-2Y(F)(L)2YB2Y-10Q1.3 10 1.4 1.6 34.5 1330
    RS/EAPSP-R-2Y(F)(L)2YB2Y-12Q1.3 12 1.5 1.8 38.0 1580
    RS/EAPSP-R-2Y(F)(L)2YB2Y-14Q1.3 14 1.5 1.8 38.6 1710
    RS/EAPSP-R-2Y(F)(L)2YB2Y-19Q1.3 19 1.6 2.0 45.5 2260
    RS/EAPSP-R-2Y(F)(L)2YB2Y-25Q1.3 25 1.6 2.0 50.5 2840
