    CCTSST-FR0.1 n×4×0.9/1.4

    • CCTSST-FR0.1 n×4×0.9/1.4
    • CCTSST-FR0.1 n×4×0.9/1.4

    Application

    The cables are used as railway cables and can be installed directly into the ground or in ducts.

    Standard

    • RENFE E.T. 03.365.051.6

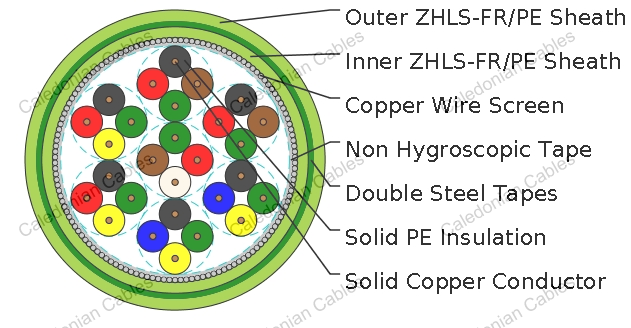

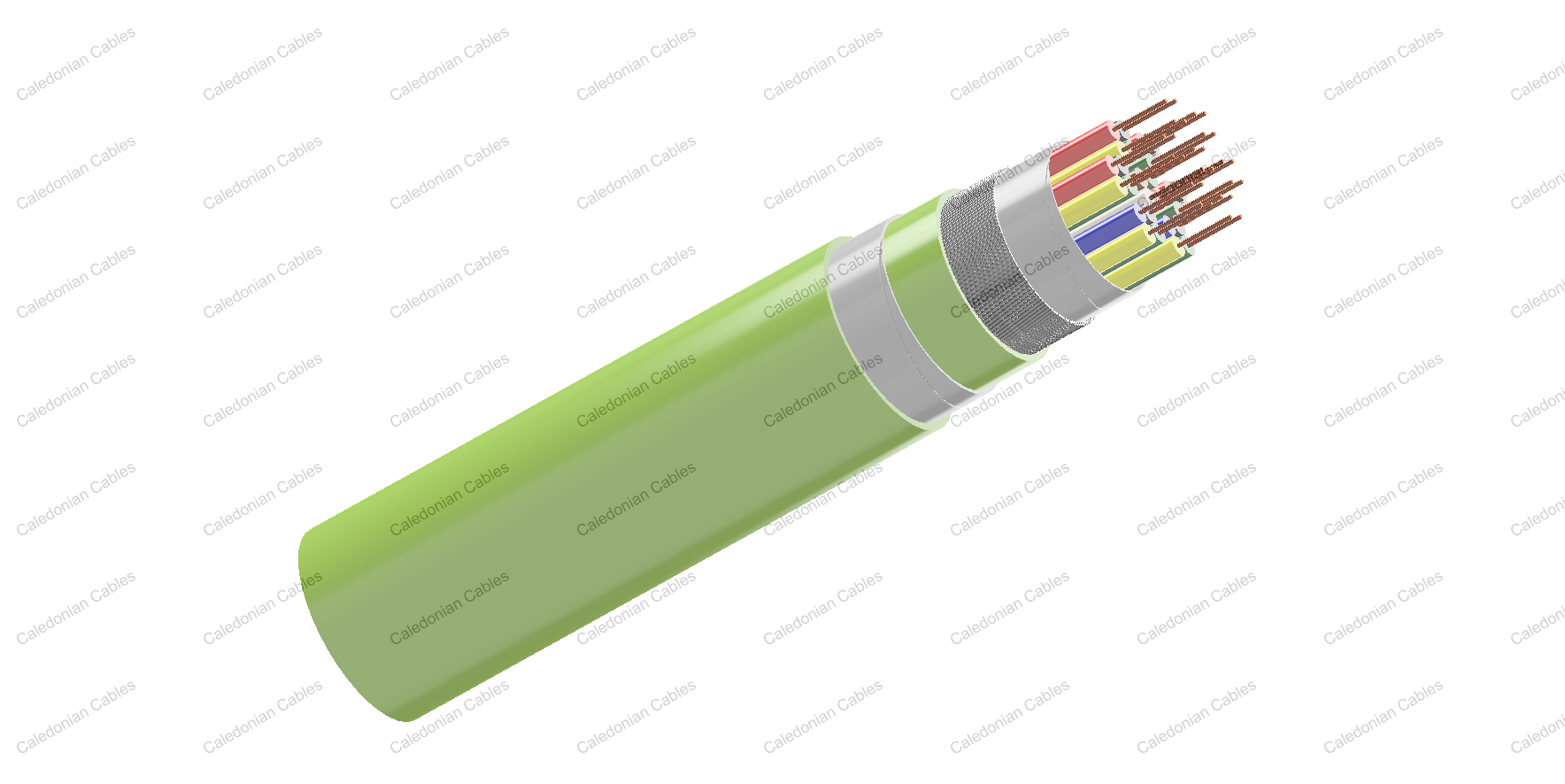

    Cable Construction

    • Electrical Characteristics at 20℃Conductors: Soft annealed solid copper, 0.9/1.4 mm nominal diameter.
    • Insulation: PE.
    • Cabling Element: Four insulated conductors are twisted together to form a quad.
    • Stranding: Quads are helically stranded in concentric layers.
    • Core Wrapping: Two or more layers of plastic tape(s) with overlapping.
    • Screen: 0.9/1.2/1.4/1.8mm copper wires wrapping with one plastic tape (protection against interference).
    • Inner Sheath: LSZH sheath, coloured green.
    • Armour: Two layers of steel tape (0.8mm thick).
    • Outer Sheath: LSZH sheath, coloured green.
    Nominal Conductor Diameter mm 0.9 1.4
    Maximum Conductor Resistance Ω/km 28.5 11.7
    Minimum Insulation Resistance @500 V DC MΩ.km 35000 35000
    Mutual Capacitance @800Hz nF/km 41 45
    Capacitance Unbalance @800Hz
    K1 maximum individual value pF/460m 250 250
    K9-12 maximum individual value pF/460m 250 250
    ea1/2 maximum individual value pF/460m 1200 1200
    Attenuation
    @1KHz dB/km 0.7 0.46
    @10KHz dB/km 1.6 0.85
    @30KHz dB/km 2.1 1.3
    Test Voltage @50Hz 1min
    Core to Core Veff 2100 2100
    Core to Screen Veff 2500 2500
    Core to Armouring Veff 2000 2000
    Reduction Factor @100V/km 50Hz   0.1 0.1

    Mechanical and Thermal Properties

    • Minimum Bending Radius: 10×OD
    • Temperature Range: -40℃ to +60℃ (during operation); -10℃ to +60℃ (during installation)

    Dimensions and Weight

    Cable Code Number of
    Quads
    Nominal Sheath Thickness
    mm
    Maximum Overall
    Diameter
    mm
    Nominal
    Weight
    kg/km
    Inner Outer
    0.9mm Conductor, 1.8mm Insulated Wire
    RS/CCTSST-FR0.1-2YDHBH-1Q0.9 1 1.5 1.6 20.6 1170
    RS/CCTSST-FR0.1-2YDHBH-3Q0.9 3 1.5 1.6 24.7 1480
    RS/CCTSST-FR0.1-2YDHBH-5Q0.9 5 1.5 1.6 27.3 1740
    RS/CCTSST-FR0.1-2YDHBH-7Q0.9 7 1.5 1.6 29.6 1950
    RS/CCTSST-FR0.1-2YDHBH-10Q0.9 10 1.5 1.6 33.5 2320
    RS/CCTSST-FR0.1-2YDHBH-25Q0.9 25 1.7 1.8 44.2 3590
    1.4mm Conductor, 2.7mm Insulated Wire
    RS/CCTSST-FR0.1-2YDHBH-10Q1.4 10 1.6 1.8 39.2 3140
