    CCPSSP-R-FR0.1

    • CCPSSP-R-FR0.1
    • CCPSSP-R-FR0.1

    Application

    The cables are used as railway cables and can be installed directly into the ground or in ducts.

    Standard

    • RENFE E.T. 03.365.051.6

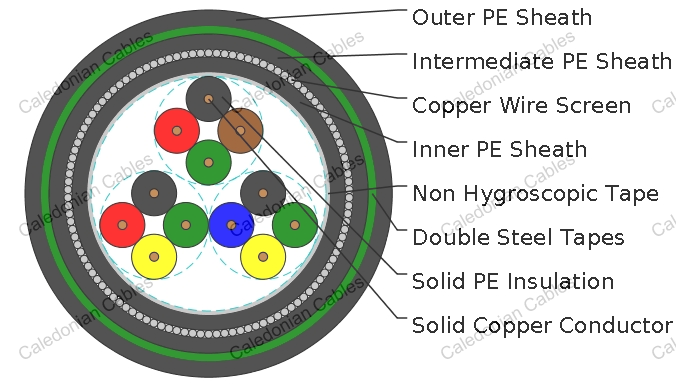

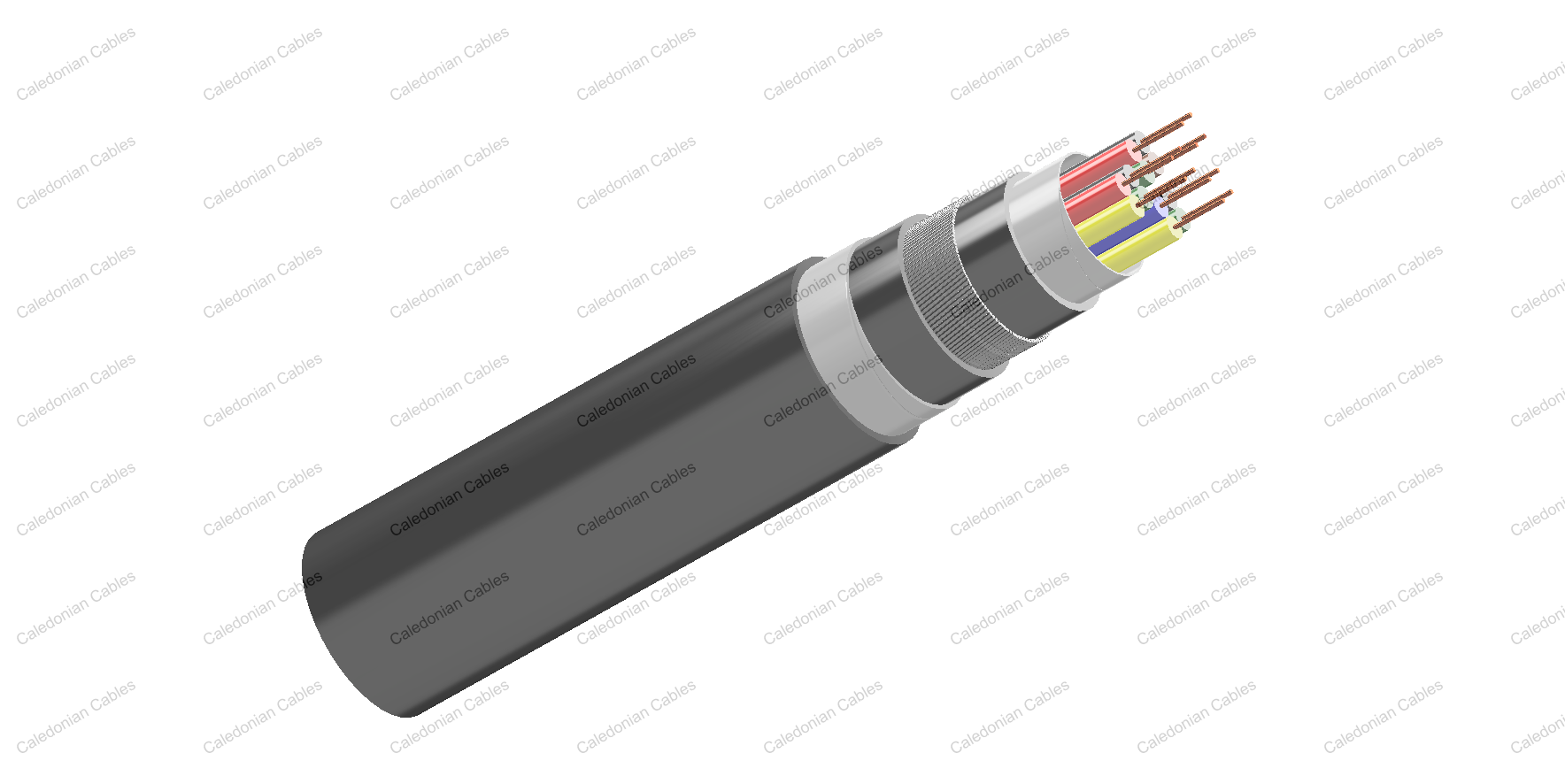

    Cable Construction

    • Electrical Characteristics at 20℃Conductors: Soft annealed solid copper, 0.9 mm nominal diameter.
    • Insulation: PE.
    • Cabling Element: Four insulated conductors are twisted together to form a quad.
    • Stranding: Quads are helically stranded in concentric layers.
    • Filling: Petroleum jelly fi lling.
    • Core Wrapping: At least one layer of water swellable material with overlapping.
    • Inner Sheath: PE sheath.
    • Screen: 1.4/1.8mm copper wires wrapping with one plastic tape (protection against interference).
    • Intermediate Sheath: PE sheath.
    • Armour: Two layers of steel tape (0.8mm thick).
    • Outer Sheath: PE sheath.
    Nominal Conductor Diameter mm 0.9
    Maximum Conductor Resistance Ω/km 28.5
    Minimum Insulation Resistance @500 V DC MΩ.km 25000
    Mutual Capacitance @800Hz nF/km 41
    Capacitance Unbalance @800Hz
    K1 maximum individual value pF/460m 250
    K9-12 maximum individual value pF/460m 250
    ea1/2 maximum individual value pF/460m 1200
    Attenuation
    @1KHz dB/km 0.7
    @10KHz dB/km 1.6
    @30KHz dB/km 2.1
    Test Voltage @50Hz 1min
    Core to Core Veff 2100
    Core to Screen Veff 2500
    Core to Armouring Veff 2000
    Reduction Factor @100V/km 50Hz   0.1

    Mechanical and Thermal Properties

    • Minimum Bending Radius: 10×OD
    • Temperature Range: -30℃ to +70℃ (during operation); -5℃ to +50℃ (during installation)

    Dimensions and Weight

    Cable Code Number of
    Quads
    Nominal Sheath Thickness
    mm
    Maximum Overall
    Diameter
    mm
    Nominal Weight
    kg/km
    Inner Inter. Outer
    0.9mm Conductor, 1.8mm Insulated Wire
    RS/CCPSSP-R-FR0.1-2Y(F)2YD2YB2Y-1Q0.9 1 1.5 1.5 1.6 23.7 1300
    RS/CCPSSP-R-FR0.1-2Y(F)2YD2YB2Y-3Q0.9 3 1.5 1.5 1.6 27.7 1648
    RS/CCPSSP-R-FR0.1-2Y(F)2YD2YB2Y-5Q0.9 5 1.5 1.5 1.6 31.5 1984
    RS/CCPSSP-R-FR0.1-2Y(F)2YD2YB2Y-25Q0.9 25 1.7 1.7 1.8 51.3 4166
