    AJ-2Y(L)2YDB2Y S(H45)

    • AJ-2Y(L)2YDB2Y S(H45)
    • AJ-2Y(L)2YDB2Y S(H45)
    • AJ-2Y(L)2YDB2Y S(H45)

    Application

    The cables are designed for transmission of low frequent signals up to 90 KHz through symmetric circuits in railway networks, and are suitable for laying directly into the ground or in ducts.

    Standard

    • Dlk 1.013.109y
    • Dlk 1.013.110y

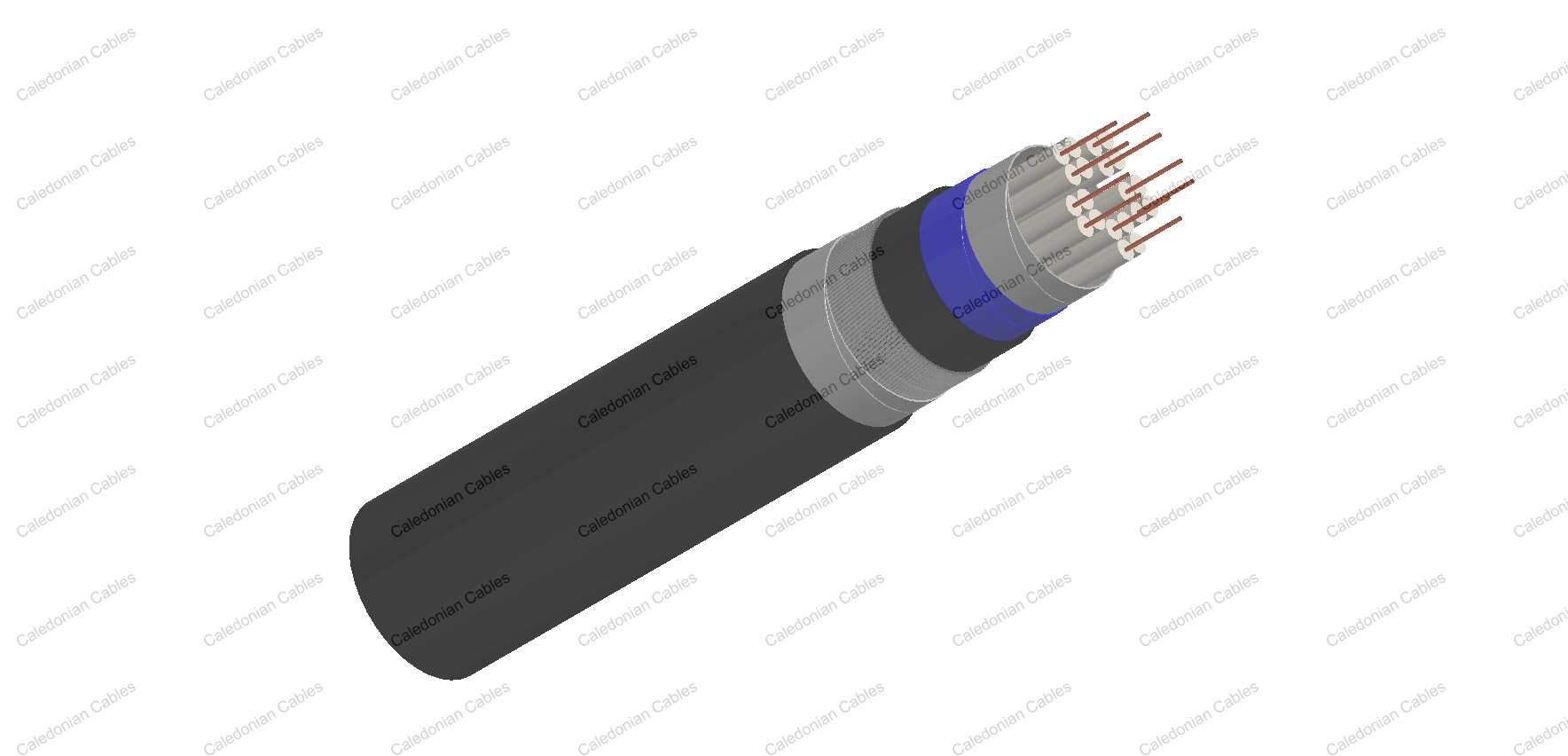

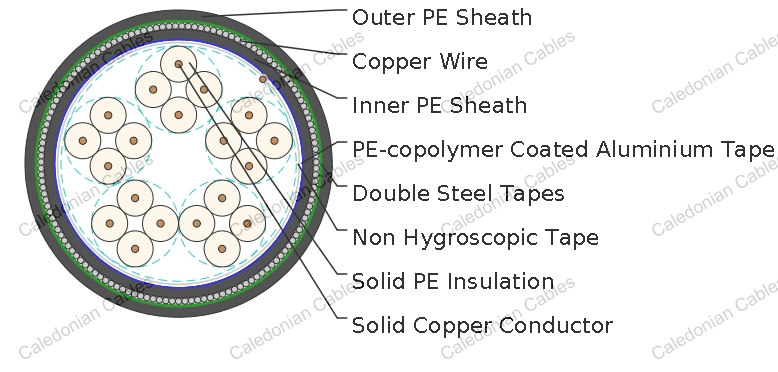

    Cable Construction

    • Type CodesConductors: Solid Annealed copper, 0.9 or 1.4 mm nominal diameter.
    • Insulation: Solid polyethylene.
    • Cabl ing Element : Four insulated conductors are twisted together to form a quad.
    • Stranding: Quads are helically stranded in concentric layers. Cables from 7 quads on, have two extra conductors of 0.5mm with perforated insulation (surveillance conductors).
    • Core Wrapping: Plastic tape(s) with overlapping.
    • Moisture Barrier: One laminated sheath made of aluminium tape (0.15mm) coated with PE-Copolymer on at least one side is applied with longitudinally overlap.
    • Inner Sheath: Low density polyethylene.
    • Electrostatic Shield: One layer of helically applied copper wires (0.9, 1.2, 1.4 or 1.8mm).
    • Electromagnetic Shield: Two helically applied steel tapes (0.5 or 0.8mm thick, depending on required reduction factor).
    • Outer Sheath: Low density polyethylene.
    • AJ– outdoor cable with protection against inductive infl uences
    • 2Y solid PE conductor insulation
    • (L)2Y inner laminated PE sheath
    • D copper wire concentric screen
    • B steel tape armor
    • 2Y outer PE sheath
    • S signal cable
    • LG layer stranding
    • H(n) operating capacity

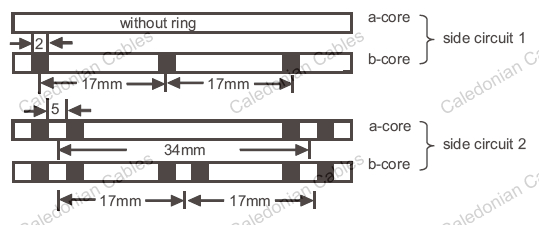

    Ring marking of Quad

    The single core is identified by black ring markings:

    • Side Circuit 1 a-wire without marking, b-wire 1 mark distance 17mm
    • Side Circuit 2 a-wire 2 marks distance 34mm, b-wire 2 marks distance 17mm

    Electrical Characteristics at 20℃

    Nominal Conductor Diameter mm 0.9 1.4
    Maximum Conductor Resistance Ω/km 56.6 23.4
    Minimum Insulation Resistance @500 V DC (1min) MΩ.km 1000 1000
    Maximum Conductor Capacitance @800Hz (AC) nF/km 45 45
    Maximum Capacitance Unbalance @800Hz
    K1 (100% / 50% all values) pF/km 650/150 650/150
    K9-12 neighboured quads pF/km 500/150 500/150
    K9-12 over-neighboured quads pF/km 150 150
    ea1/2 pF/km 1300 1300
    Miniumum Far-end Crosstalk Attenuation @90KHz
    100% / 80% all values dB/km 58/62 33/45
    Maximum Attenuation @90KHz dB/km 3.3 2.6
    Dielectric Strength, conductor to conductor (DC voltage 1min) V 3535 3535
    Surveillance Conductors
    Loop resistance, maximum Ω/km 190 190
    Insulation resistance
    - dry cable core, minimum MΩ.km 1000 1000
    - wet cable core, maximum KΩ.km 30 30
    Optional: Nominal Reduction Factor @ 100 V/km, 16 2/3 Hz
    rk 401 series   0.15 0.15
    rk 501 series   0.35 0.35
    rk 601 series   0.55 0.55
    Operating Voltage AC/DC V 420/600 420/600
    Test Voltage 50 Hz 1 min
    Core to Core Veff 2500 2500
    Core to Screen Veff 2500 2500

    Mechanical and Thermal Properties

    • Minimum Bending Radius: 10×OD
    • Temperature Range: -40℃ to +60℃ (during operation); -10℃ +60℃ (during installation)

    Dimensions and Weight

    Cable Code Number of
    Quads
    Nominal Sheath Thickness
    mm
    Nominal Overall
    Diameter
    mm
    Nominal
    Weight
    kg/km
    Inner Outer
    0.9mm Conductor, 1.8mm Insulated Wire rk 601 Series
    RS109y-2Y(L)2YDB2Y-3Q0.9-S(H45)-R6 3 1.3 1.2 21.0 650
    RS109y-2Y(L)2YDB2Y-5Q0.9-S(H45)-R6 5 1.3 1.2 23.0 800
    RS109y-2Y(L)2YDB2Y-10Q0.9-S(H45)-R6 10 1.3 1.2 28.0 1130
    RS109y-2Y(L)2YDB2Y-20Q0.9-S(H45)-R6 20 1.3 1.2 35.0 1670
    RS109y-2Y(L)2YDB2Y-30Q0.9-S(H45)-R6 30 1.3 1.2 40.0 2180
    RS109y-2Y(L)2YDB2Y-40Q0.9-S(H45)-R6 40 1.3 1.2 45.0 2650
    0.9mm Conductor, 1.8mm Insulated Wire rk 401 Series
    RS109y-2Y(L)2YDB2Y-10Q0.9-S(H45)-R4 10 1.3 1.2 31.0 1880
    RS109y-2Y(L)2YDB2Y-20Q0.9-S(H45)-R4 20 1.3 1.2 38.0 2640
    RS109y-2Y(L)2YDB2Y-30Q0.9-S(H45)-R4 30 1.3 1.2 43.0 3310
    RS109y-2Y(L)2YDB2Y-40Q0.9-S(H45)-R4 40 1.3 1.2 48.0 3880
    1.4mm Conductor, 2.6mm Insulated Wire rk 501 Series
    RS109y-2Y(L)2YDB2Y-3Q1.4-S(H45)-R5 3 1.3 1.2 25.0 1060
    RS109y-2Y(L)2YDB2Y-5Q1.4-S(H45)-R5 5 1.3 1.2 29.0 1360
    RS109y-2Y(L)2YDB2Y-10Q1.4-S(H45)-R5 10 1.3 1.2 37.0 2040
    RS109y-2Y(L)2YDB2Y-20Q1.4-S(H45)-R5 20 1.3 1.2 47.0 3180
    RS109y-2Y(L)2YDB2Y-30Q1.4-S(H45)-R5 30 1.3 1.2 54.0 4220
    RS109y-2Y(L)2YDB2Y-40Q1.4-S(H45)-R5 40 1.3 1.2 61.0 5180
    1.4mm Conductor, 2.6mm Insulated Wire rk 401 Series
    RS109y-2Y(L)2YDB2Y-3Q1.4-S(H45)-R4 3 1.3 1.2 28.0 1650
    RS109y-2Y(L)2YDB2Y-5Q1.4-S(H45)-R4 5 1.3 1.2 31.0 1950
    RS109y-2Y(L)2YDB2Y-10Q1.4-S(H45)-R4 10 1.3 1.2 39.0 2880
    RS109y-2Y(L)2YDB2Y-20Q1.4-S(H45)-R4 20 1.3 1.2 49.0 4180
    RS109y-2Y(L)2YDB2Y-30Q1.4-S(H45)-R4 30 1.3 1.2 56.0 5330
    RS109y-2Y(L)2YDB2Y-40Q1.4-S(H45)-R4 40 1.3 1.2 63.0 6430
