    A-2Y2Yv S(H115)/S(H145)/S(H95)

    • A-2Y2Yv S(H115)/S(H145)/S(H95)
    • A-2Y2Yv S(H115)/S(H145)/S(H95)

    Application

    The cables are designed for general uses in protective devises in railways signalling networks, and are suitable for installation in ducts.

    Standard

    • Dlk 1.013.107y
    • Dlk 1.013.108y (for 1.4/1.8mm conductor H95 type)
    • Dlk 1.013.110y

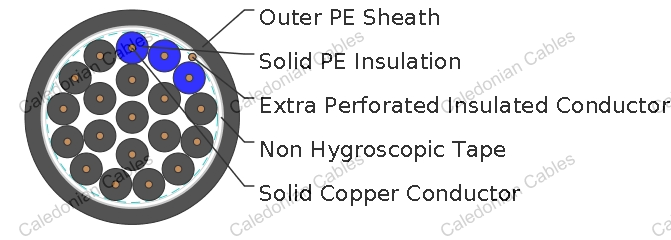

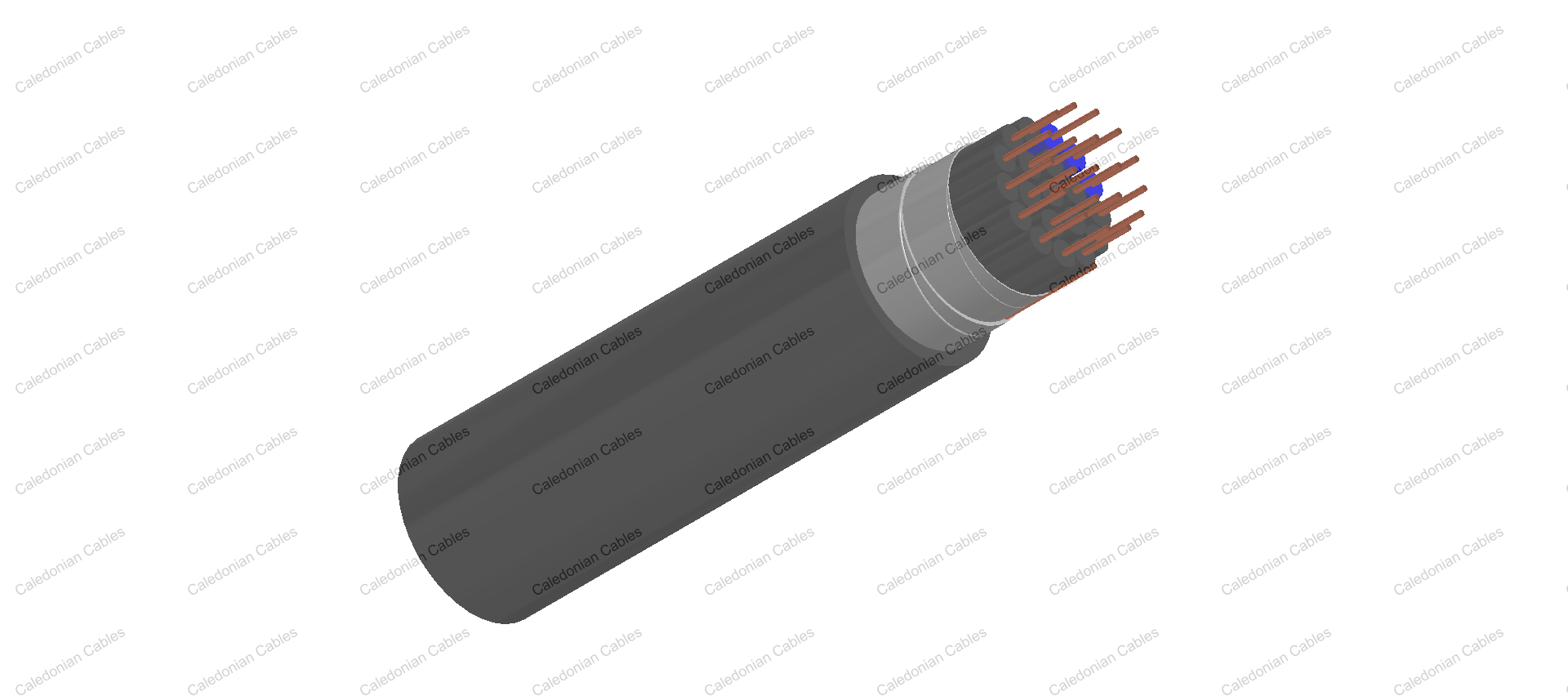

    Cable Construction

    • Type CodesConductors: Solid annealed copper, 0.9, 1.4 or 1.8 mm nominal diameter.
    • Insulation: Solid polyethylene.
    • Stranding: Single conductors are helically stranded in concentric layers. Cables from 14 conductors on, have two extra conductors with perforated insulation (surveillance conductors).
    • Core Wrapping: Plastic tape(s) with overlapping.
    • Inner Sheath: Low density polyethylene.
    • Outer Sheath: Low density polyethylene.
    • AJ- outdoor cable with protection against inductive infl uences
    • 2Y solid PE conductor insulation
    • 2Yv PE sheath with increased wall thickness
    • S signal cable
    • LG layer stranding
    • H (n) operating capacity

    Electrical Characteristics at 20℃

    Nominal Conductor Diameter mm 0.9 1.4 1.8
    Maximum Conductor Resistance Ω/km 28.9 11.9 7.2
    Minimum Insulation Resistance @500 V DC (1min) MΩ.km 10000 10000 10000
    Maximum Conductor Capacitance @800Hz (AC) nF/km 115 145/95* 145/95*
    Dielectric Strength, conductor to conductor (DC voltage 1min) V 3535 3535 3535
    Surveillance Conductors
    Loop resistance, maximum Ω/km 190 190 190
    Insulation resistance
    - dry cable core, minimum MΩ.km 1000 1000 1000
    - wet cable core, maximum KΩ.km 30 30 30
    Operating Voltage AC/DC V 420/600 420/600 420/600
    Test Voltage@50 Hz 1 min
    Core to Core Veff 2500 2500 2500
    Core to Screen Veff 2500 2500 2500

    *The value“ 95” is only for cables with 1.4/1.8mm conductors according to Dlk 1.013.108y.

    Mechanical and Thermal Properties

    • Minimum Bending Radius: 7.5×OD
    • Temperature Range: -40℃ to +60℃ (during operation); -10℃ to +60℃ (during installation)

    Dimensions and Weight

    A-2Y2Yv n×1×0.9 S(H115)

    Cable Code Number of
    conductors
    (n)
    Nominal Sheath
    Thickness
    mm
    Nominal Overall
    Diameter
    mm
    Nominal Weight
    kg/km
    0.9mm Conductor, 1.55mm Insulated Wire
    RS107y-2Y2Yv-2C0.9-S(H115) 2 2.0 9.0 60
    RS107y-2Y2Yv-4C0.9-S(H115) 4 2.0 9.0 75
    RS107y-2Y2Yv-7C0.9-S(H115) 7 2.0 11.0 100
    RS107y-2Y2Yv-10C0.9-S(H115) 10 2.0 12.0 130
    RS107y-2Y2Yv-14C0.9-S(H115) 14 2.0 13.0 170
    RS107y-2Y2Yv-20C0.9-S(H115) 20 2.0 14.0 220
    RS107y-2Y2Yv-24C0.9-S(H115) 24 2.0 15.0 260
    RS107y-2Y2Yv-30C0.9-S(H115) 30 2.2 16.0 310
    RS107y-2Y2Yv-40C0.9-S(H115) 40 2.2 17.0 380
    RS107y-2Y2Yv-50C0.9-S(H115) 50 2.2 19.0 460
    RS107y-2Y2Yv-60C0.9-S(H115) 60 2.2 20.0 540
    RS107y-2Y2Yv-80C0.9-S(H115) 80 2.2 22.0 690
    RS107y-2Y2Yv-100C0.9-S(H115) 100 2.2 25.0 850
    RS107y-2Y2Yv-120C0.9-S(H115) 120 2.2 26.0 990
    RS107y-2Y2Yv-140C0.9-S(H115) 140 2.2 28.0 1150
    RS107y-2Y2Yv-160C0.9-S(H115) 160 2.2 29.0 1260
    RS107y-2Y2Yv-180C0.9-S(H115) 180 2.2 32.0 1460
    RS107y-2Y2Yv-200C0.9-S(H115) 200 2.2 32.0 1600

    A-2Y2Yv n×1×1.4/1.8 S(H145)

    Cable Code Number of
    conductors
    (n)
    Nominal Sheath
    Thickness
    mm
    Nominal Overall
    Diameter
    mm
    Nominal Weight
    kg/km
    1.4mm Conductor, 2.2mm Insulated Wire
    RS107y-2Y2Yv-4C1.4-S(H145) 4 2.0 11.0 120
    RS107y-2Y2Yv-7C1.4-S(H145) 7 2.0 12.0 180
    RS107y-2Y2Yv-10C1.4-S(H145) 10 2.0 15.0 240
    RS107y-2Y2Yv-14C1.4-S(H145) 14 2.2 16.0 320
    RS107y-2Y2Yv-20C1.4-S(H145) 20 2.2 17.0 430
    RS107y-2Y2Yv-24C1.4-S(H145) 24 2.2 19.0 500
    RS107y-2Y2Yv-30C1.4-S(H145) 30 2.2 20.0 600
    RS107y-2Y2Yv-40C1.4-S(H145) 40 2.2 22.0 770
    RS107y-2Y2Yv-50C1.4-S(H145) 50 2.2 24.0 950
    RS107y-2Y2Yv-60C1.4-S(H145) 60 2.2 26.0 1120
    RS107y-2Y2Yv-80C1.4-S(H145) 80 2.2 29.0 1450
    RS107y-2Y2Yv-100C1.4-S(H145) 100 2.2 33.0 1810
    RS107y-2Y2Yv-120C1.4-S(H145) 120 2.2 35.0 2140
    RS107y-2Y2Yv-140C1.4-S(H145) 140 2.2 37.0 2470
    RS107y-2Y2Yv-160C1.4-S(H145) 160 2.2 39.0 2800
    RS107y-2Y2Yv-180C1.4-S(H145) 180 2.2 42.0 3140
    RS107y-2Y2Yv-200C1.4-S(H145) 200 2.2 43.0 3460

    1.8mm Conductor, 2.7mm Insulated Wire

    RS107y-2Y2Yv-4C1.8-S(H145) 4 2.0 12.0 170
    RS107y-2Y2Yv-7C1.8-S(H145) 7 2.0 14.0 260
    RS107y-2Y2Yv-10C1.8-S(H145) 10 2.0 17.0 355
    RS107y-2Y2Yv-14C1.8-S(H145) 14 2.2 18.0 475
    RS107y-2Y2Yv-20C1.8-S(H145) 20 2.2 21.0 655
    RS107y-2Y2Yv-24C1.8-S(H145) 24 2.2 22.0 760
    RS107y-2Y2Yv-30C1.8-S(H145) 30 2.2 24.0 930
    RS107y-2Y2Yv-40C1.8-S(H145) 40 2.2 27.0 1210
    RS107y-2Y2Yv-50C1.8-S(H145) 50 2.2 29.0 1480
    RS107y-2Y2Yv-60C1.8-S(H145) 60 2.2 31.0 1760
    RS107y-2Y2Yv-80C1.8-S(H145) 80 2.2 35.0 2310
    RS107y-2Y2Yv-100C1.8-S(H145) 100 2.2 40.0 2860
    RS107y-2Y2Yv-120C1.8-S(H145) 120 2.2 42.0 3390
    RS107y-2Y2Yv-140C1.8-S(H145) 140 2.2 46.0 3930
    RS107y-2Y2Yv-160C1.8-S(H145) 160 2.2 49.0 4500
    RS107y-2Y2Yv-180C1.8-S(H145) 180 2.2 52.0 5100
    RS107y-2Y2Yv-200C1.8-S(H145) 200 2.2 53.0 5600

    A-2Y2Yv n×1×1.4/1.8 S(H95)

    Cable Code Number of
    conductors
    (n)
    Nominal Sheath
    Thickness
    mm
    Nominal Overall
    Diameter
    mm
    Nominal Weight
    kg/km
    1.4mm Conductor, 2.7mm Insulated Wire
    RS108y-2Y2Yv-10C1.4-S(H95) 10 2.0 16.0 270
    RS108y-2Y2Yv-14C1.4-S(H95) 14 2.0 18.0 350
    RS108y-2Y2Yv-20C1.4-S(H95) 20 2.0 20.0 470
    RS108y-2Y2Yv-30C1.4-S(H95) 30 2.2 24.0 670
    RS108y-2Y2Yv-50C1.4-S(H95) 50 2.2 29.0 1050
    1.8mm Conductor, 3.4mm Insulated Wire
    RS108y-2Y2Yv-10C1.8-S(H95) 10 2.0 19.0 400
    RS108y-2Y2Yv-14C1.8-S(H95) 14 2.2 21.0 540
    RS108y-2Y2Yv-20C1.8-S(H95) 20 2.2 24.0 730
    RS108y-2Y2Yv-30C1.8-S(H95) 30 2.2 28.0 1050
    RS108y-2Y2Yv-50C1.8-S(H95) 50 2.2 36.0 1700
